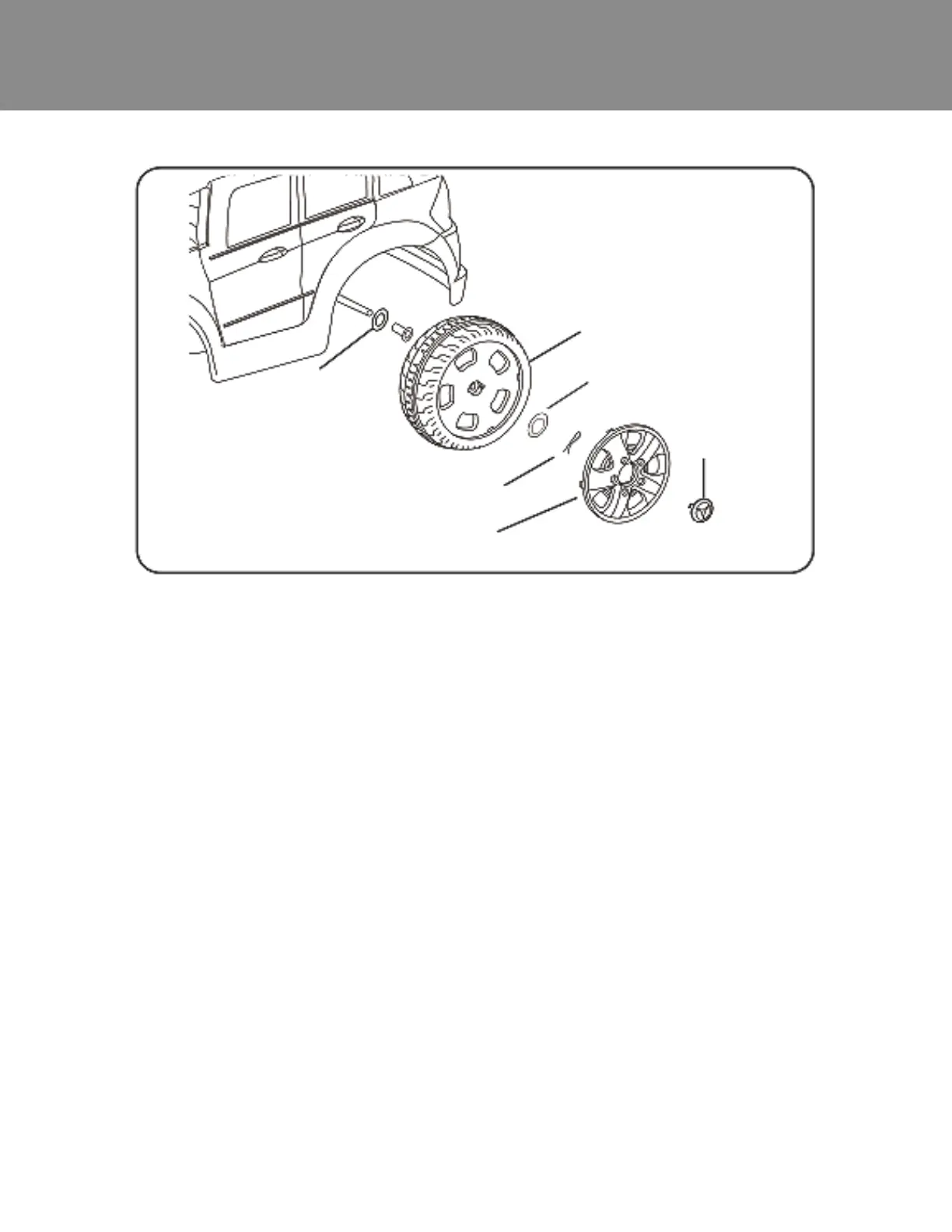

Assemble the Left Rear Wheel
Left Rear Wheel:
1. Slide the rear thick washer (18) onto the left rear axle.
2. Slide the orientation sleeve onto the left rear wheel axle.
3. Slide the left rear wheel (17) onto the left rear axle. The side with
the gear teeth faces inward.
4. Slide the rear at washer (19) onto the left rear axle.
5. Slide the snap pin (20) into the hole on the left rear axle until
rmly attached.
6. Snap the rim (21) onto the left wheel assembly.
7. Snap the hub cap (22) onto the completed left wheel assembly.
18
17
19
20
21
22
