Rolls-Royce & Bentley-------
Air Conditioning
Sy.stem
Manual
SECTION C.l
DESCRIPTION
The function of the Rolls-Royce Air Conditioning
Unit is to maintain the car interior temperature
and humidity at a comfortable level in all climatic
conditions.
The unit is divided into two parts - the fresh
air system,
and the recirculatory system; these
PHIAL
~
EV APORATOR MATRIX
TEMPERATURE
CO NTROL PHIAL
-4===
/
EVAPORA TO R MA TR IX
L.P. VAPOUlll D
H. P. VAPOUR •
H.P. LIQUID •
VALVE
~
SOLE NOI D VALVE
VALVE
/
SOLENOID VAL VE
may be operated independently or together in
order to produce the desired condition. The fresh
air s ystem introduces heated, cooled or ambient
temperature air into the car interior ; the re-
circulatory system draws air from
the car interior,
conditions it, and re-introdu ces it.
C ON D ENS ER
~
I
COMPRESSOR
FLOW co~ VALVE
ORI~
es ,

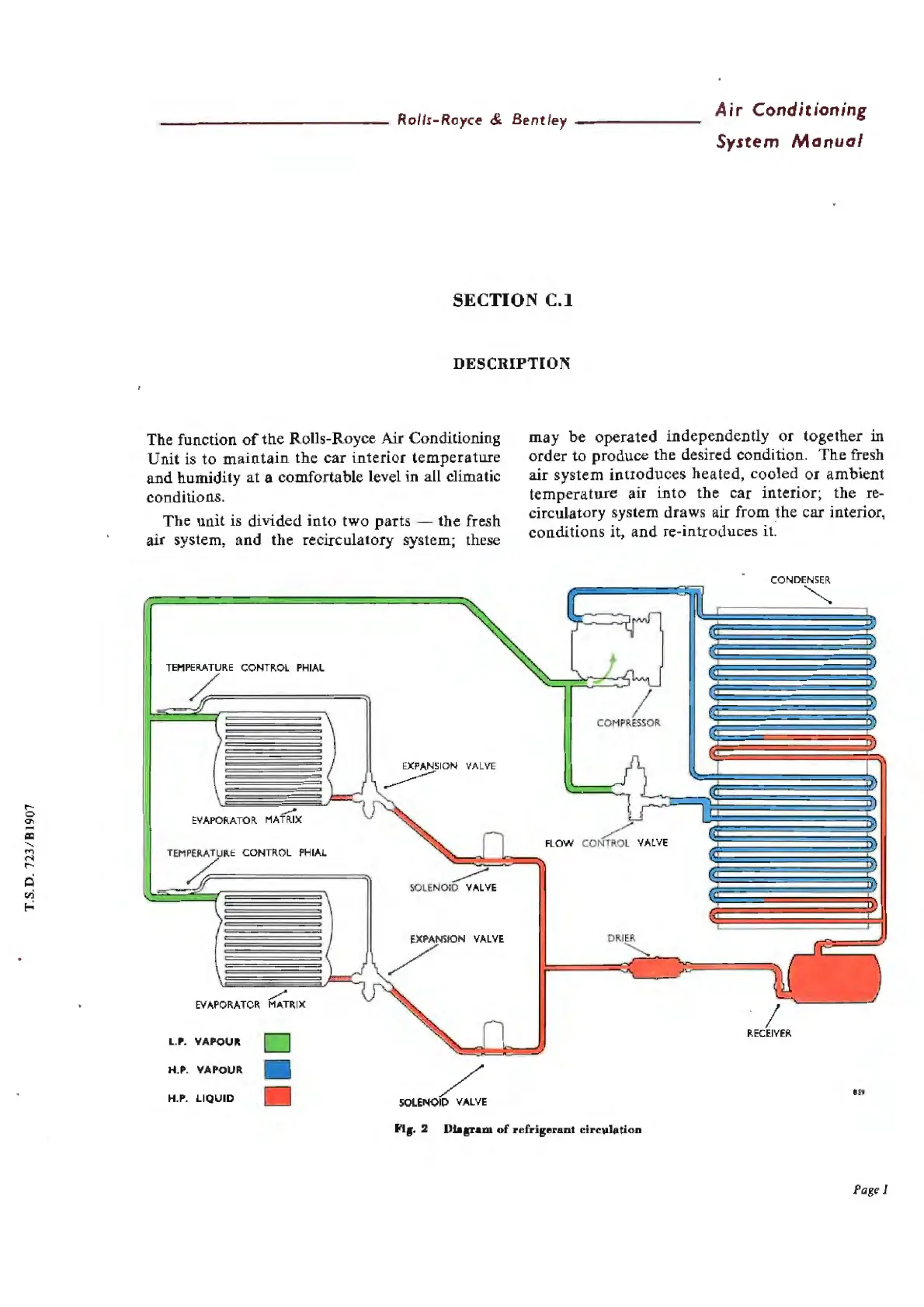

Ft1, 2 Dla«r•m of refrigerant circ11l•tion
P age 1
