26 5 76
4
of 7
SY/MlOl
WN&GW ·

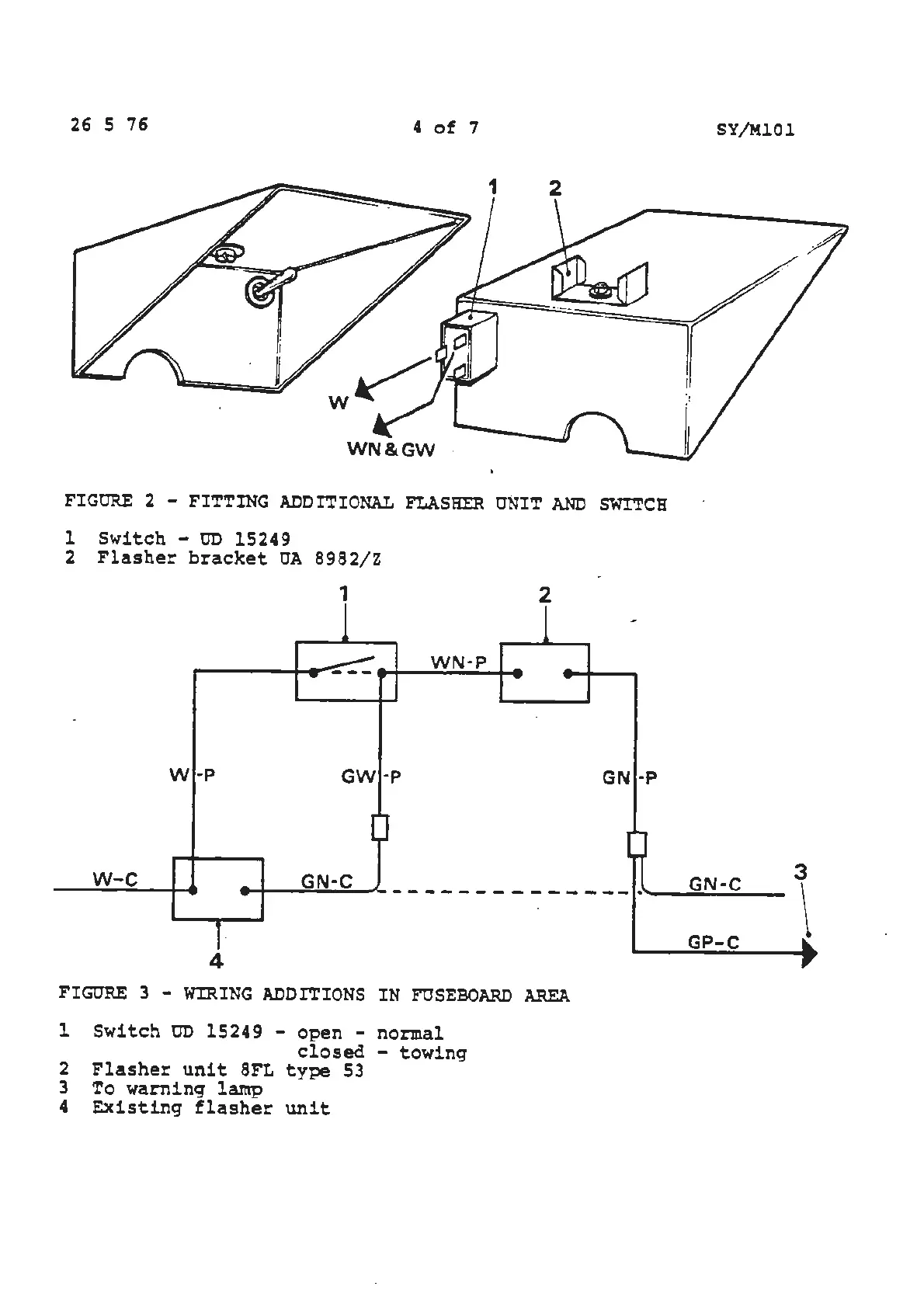

FIGURE 2 - FITTING ADDITIONAL FLASHER UNIT AND SWITCH
l Switch - OD 15249
2 Flasher bracket OA 8982/Z
1
2
WN·P
W ·P
GW·P
GN ·P
w-c
GN·C GN·C
~~-------------~------- --- -·----------
4
FIGURE 3 - WIRING ADDITIONS IN FOSEBOARD A.REA
l Switch OD 15249 - open - normal
closed - towing
2 Flasher unit 8FL type 53
3 To warning la.mp
4
Existing flasher unit
GP-C
3
\
