USER MANUAL
11
BRUSHLESS

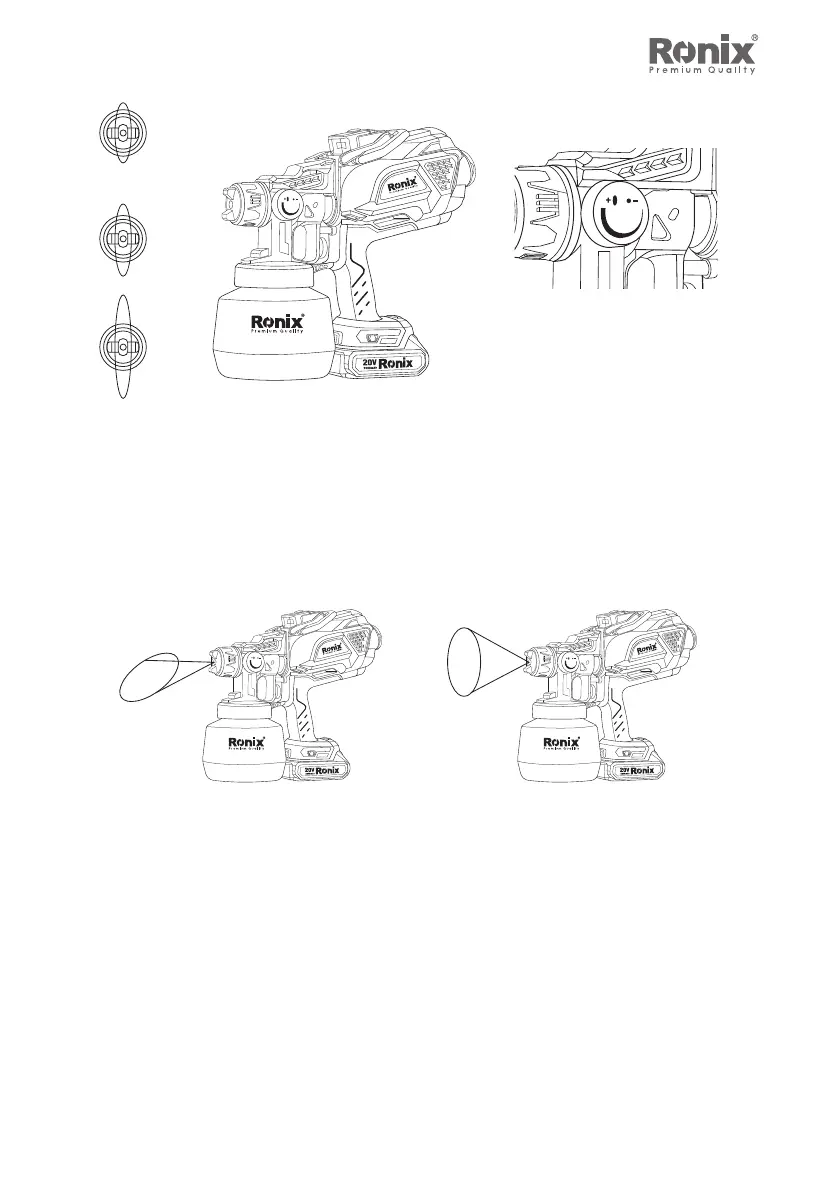

- Adjust the spray patterns
The spray pattern shape is adjusted by turning the ears of the air cap to
either the vertical, horizontal, or diagonal positions. The positions of the air
cap and the corresponding spray pattern shapes are illustrated below.
Test each pattern and use whichever pattern is suitable for your
application
BRUSHLESS BRUSHLESS
.SPRAY PROPERLY
5.1. Keep distance.
The best distance for spraying is 8 to 12 inches from the surface you’re
spraying. Too far away may result in over spray (and wasted liquid), and
too close may cause liquid build-up (runs).
- The spray result depends heavily on the smoothness and cleanliness
of the surface to be sprayed. Therefore, the surface should be carefully
prepared and kept free of dust.
- Cover all surfaces not to be sprayed.
