Ronstan ORBIT Series - Parts List and Exploded View

Item No. Qty
Description Part No.
1 1 Self-tailing arm assembly 996017
1.1 1 Self-tailing arm 990980M
1.2 1
Release Latch spring 996029
1.3 1
Release Latch 990923
1.4 1
Self-tailing arm orientation plate 990979
1.5 6
Screw M3x6, CSK cross head SC3-36
2 1
Closing plate 996005
3 1
Closing washer 990978
4 3
Bolts, self tailer assembly 990981
5 1
Rope splitter 990896
6 1
Self tailer & QuickTrim
™
assembly 996016
6.1 3
Locking pin
996015
7 1
Drum 990914M
8 3
Nut, M3 self-locking NU3
9 1
Ball bearing race assembly 996019
10 1
Roller bearing assembly 990874
11 1
Shaft assembly 990998
11.1 4
Pawl springs 713300
11.2 4
Pawls 713200
12 1
Spacer* 990871*
13 1
Drive gear 711701
14 1
Ratchet gear 990870
15 1
Gear axle 990912
16 1
Output drive gear 996037
17 2
Shaft bearing 996034
18 1
Centre stem 990915
19 2
Top hat bearing inserts 536300
20 1
Base plate 996040
21 2
Hex socket cyl. head screw, M5x16 SC5-516
22 1
Isolator 990931
* 990871 spacer is tapered, must be installed with wide diameter towards
base, narrow diameter up.
Winch Pawl & Spring Kit RA710052 contains 8 pawls and and 16 springs.
4
© Victor Kovalenko

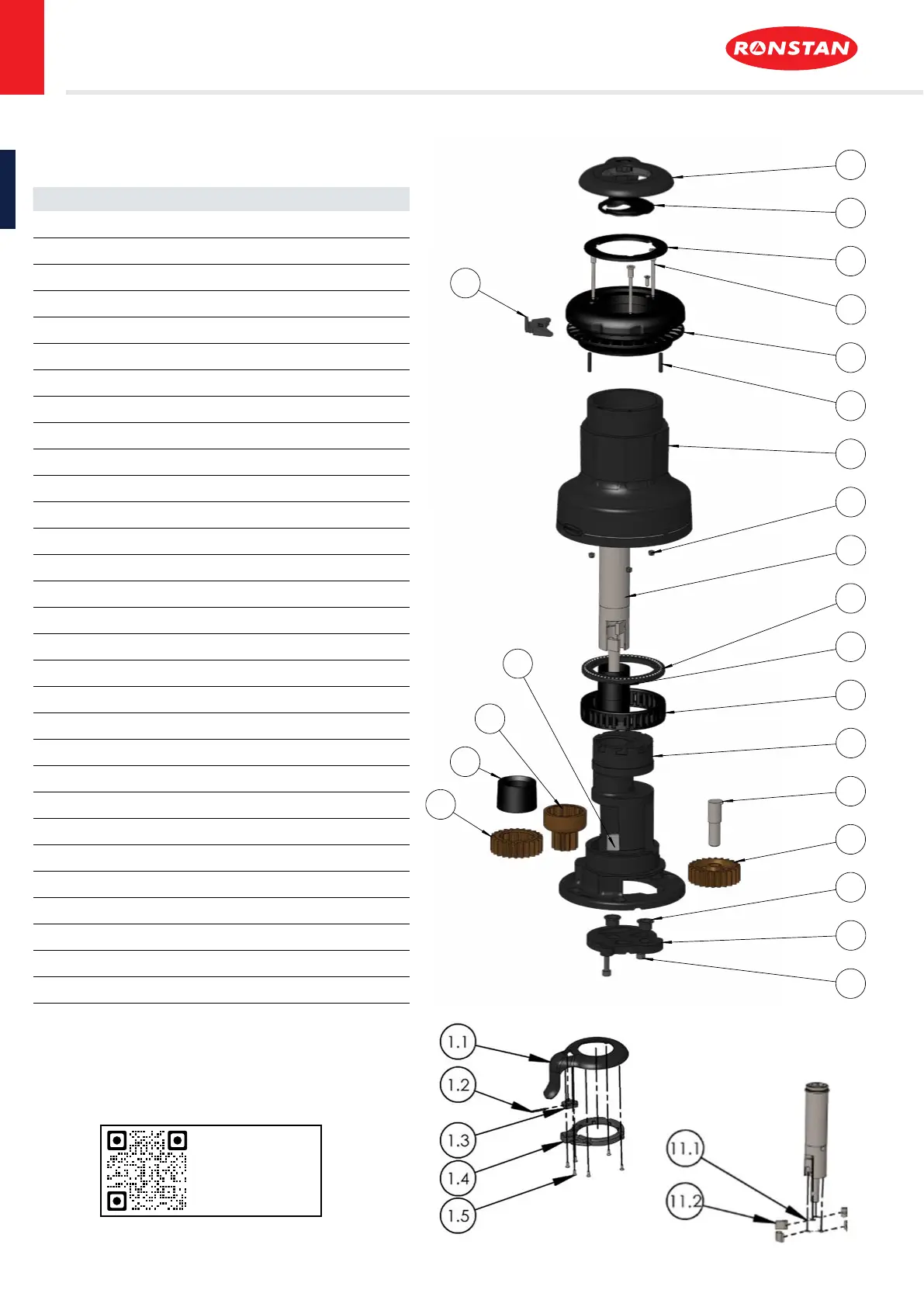

PARTS LIST AND EXPLODED VIEW
30QT ORBIT WINCH
™
RA6302 WITH QUICKTRIM™
1
2
3
4
6
6.1
5
7
8
9
11
10
12
13
14
15
16
17
18
19
20
21
22
Refer to the diagrams
and the exploded view
for part and assembly
details.
