5

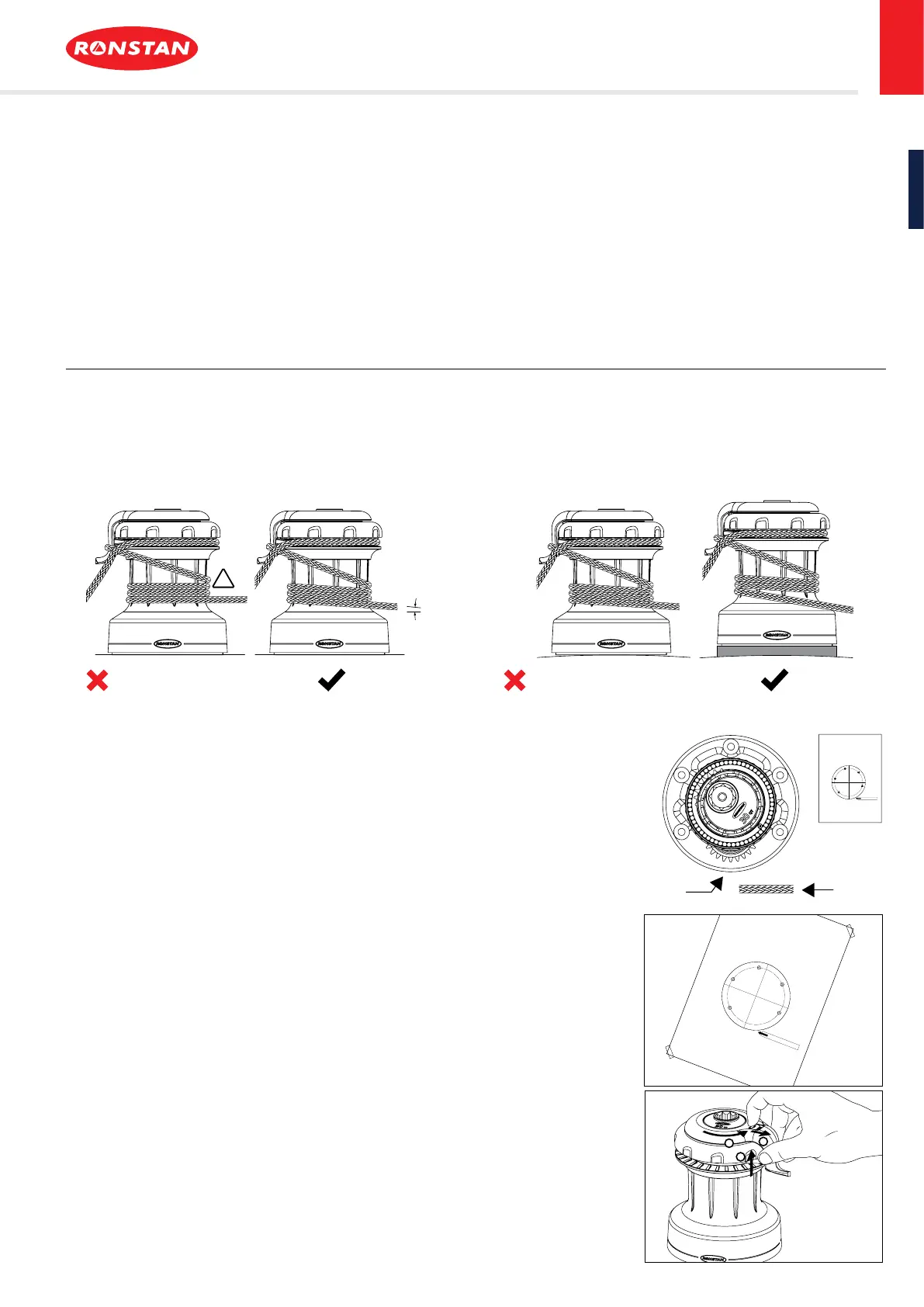

Step 1:
After conrming the mounting location and orientation of the winch, clean the mounting surface and tape
the drilling template on the mounting surface so that it matches the required winch mounting position and
orientation.
Step 2:
Remove the self-tailing arm [1]:
Pull back the spring-loaded release latch [1.3] on the self-tailing arm [1] with a ngertip (1), then rotate the arm
slightly in an anti-clockwise direction (2) until it can be lifted clear of the winch (3). Remove the closing plate [2]
and closing washer [3] and set all three parts aside for now.
Determine winch mounting position
Determine the mounting position for the winch and ensure that the mounting surface is smooth and flat.
The winch should be positioned with the recommended line entry angle of 3-8° from horizontal. Refer to the diagrams below:
The drive gear should be aligned to the line entry as per the diagram and as indicated on the drilling template
ROPE ENTRY
RA6302 MOUNT TEMPLATE
SCALE 1:1
FASTENERS: 5 x M6 (1/4") CSK
THIS DRAWING /LIBRARY HAS BEEN PRODUCED FOR USE IN DECK PLANS ONLY; SOME DETAILS HAVE BEEN OMITTED.
SHOULD ACCURATE DIMENSIONS BE REQUIRED SUCH AS HOLE SPACING, LENGTHS, ETC.
PLEASE CONTACT RONSTAN FOR FURTHER INFORMATION.
1
2
3
Installation
Required for the installation:
• 5x M6 or 1/4” Grade 316 stainless steel fasteners (length as required for
deck thickness). Use of A4-70 DIN7991 hexagon socket CSK screws is
recommended, installed at a torque setting of no more than 7.1Nm as per
industry standards.
• 5x Grade 316 stainless steel large washers or backing plate.
• 5x Grade 316 stainless steel self-locking nuts to suit mounting fasteners.
• Hex key, 5mm for M6 fasteners, or 3/16” for 1/4” fasteners.
• Spanner, to suit mounting nuts.
• Drill bit, Ø6.5mm for M6 mounting bolts (or 9/32” for 1/4” bolts)
• Drilling template.
• Sealant / bedding compound.
• Tef-Gel
™
isolating paste.
(Tef-Gel
™
is a trademark of Ultra Safety Systems, Inc.)
30QT ORBIT WINCH
™
RA6302 WITH QUICKTRIM™
!
3-8°
ROPE ENTRY
RA6302 MOUNT TEMPLATE
SCALE 1:1
FASTENERS: 5 x M6 (1/4") CSK
THIS DRAWING /LIBRARY HAS BEEN PRODUCED FOR USE IN DECK PLANS ONLY; SOME DETAILS HAVE BEEN OMITTED.
SHOULD ACCURATE DIMENSIONS BE REQUIRED SUCH AS HOLE SPACING, LENGTHS, ETC.
PLEASE CONTACT RONSTAN FOR FURTHER INFORMATION.
Incorrect line entry Mounting surface not flat
Line
Entry
Drive
Gear
