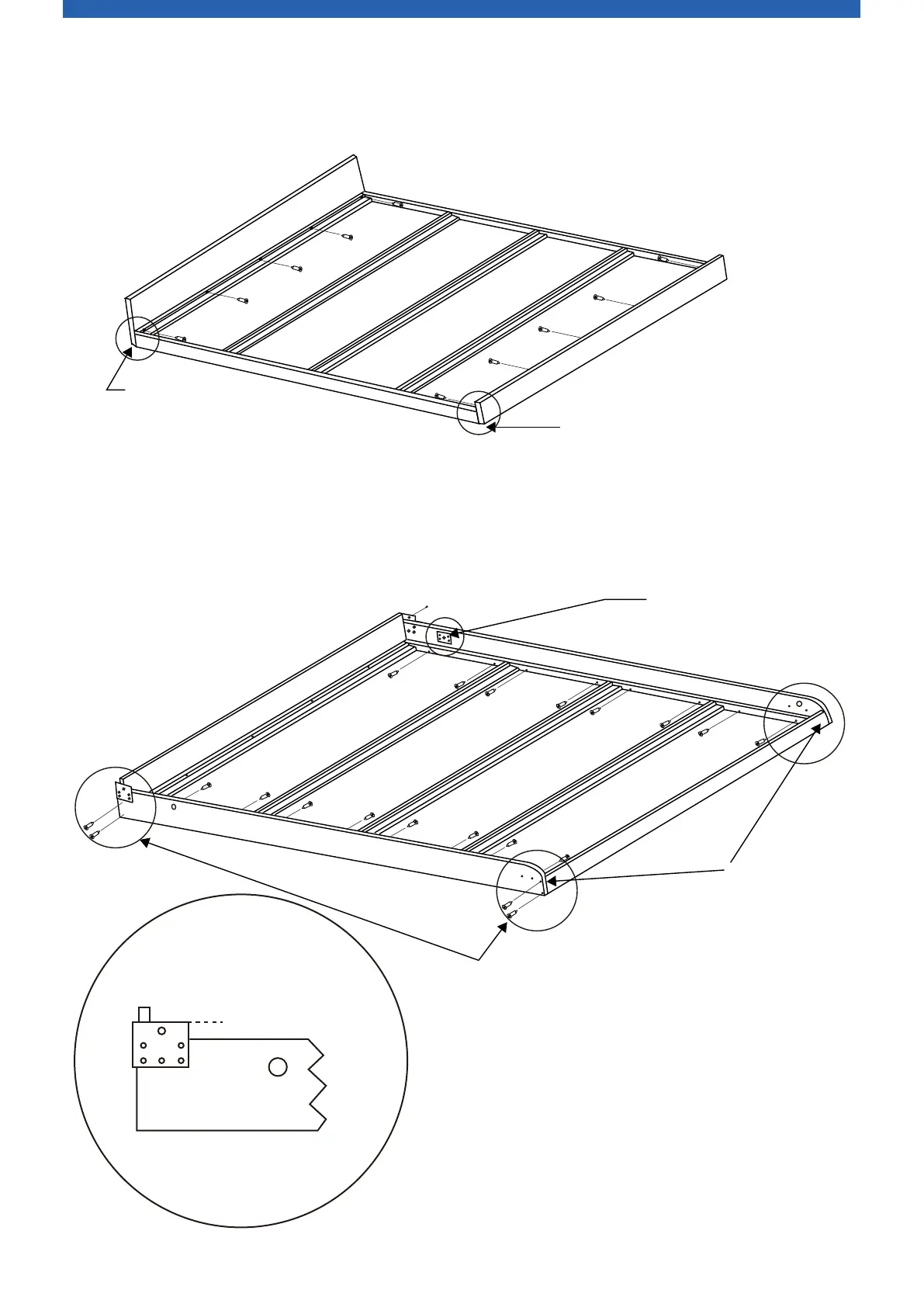

Step 14: Mounting the foot rail PART C and head rail D.
Drill 1/8" pilot hole 1-1/4" deep through the inner wood bed
frame into the foot rail. Drive #8x 1-1/4" screws flush. repeat
on part D Head Rail.
Step 15: Mounting left and right side rails to inner wood bed frame.
Using an 1/8" drill bit, drill two holes between each strut ( total of 8 holes per
rail ) 1-1/4" deep through the frame side into the side rails. Drive #8 x 1-1/4"
wood screws flush, snugging inner wood bed frame to the side rail.
Make sure sides and bottom are flush.Drill
1/8" pilot hole 2" deep through the side
rails into the foot rail and head rail. Drive
#8 x 2" screws flush.
Pivot plates are
mounted to the inside
of the side rails B.
Note: Make sure the ends and
bottoms of the foot rail are flush with
the inner wood bed frame.
Note: Remove Pivot Leg Hardware.
Note: The Lower Ball Stud
Plate WILL OVERHANG
THE SIDE RAIL BY
APPROXIMATELY 1/4".
This is the CORRECT
PLACEMENT for the Lower
Ball Stud Plate.
Flush
Flush
- 17 -
Step 16: Mounting the side rails
B to the foot rail Part C and head
rail Part D.
1/4"
To Next Page
