Measurements For QUEEN Vertical (Upright) ONLY Using 3/4" PLYWOOD Face Panel.
Step 25:
Ball stud nut fits in the hole.
Note:
On left and right bed verticals, a cut can be
made to accommodate existing base molding
so cabinet will fit flush against the wall.
OPTION:
Front finished edge
Step 26:

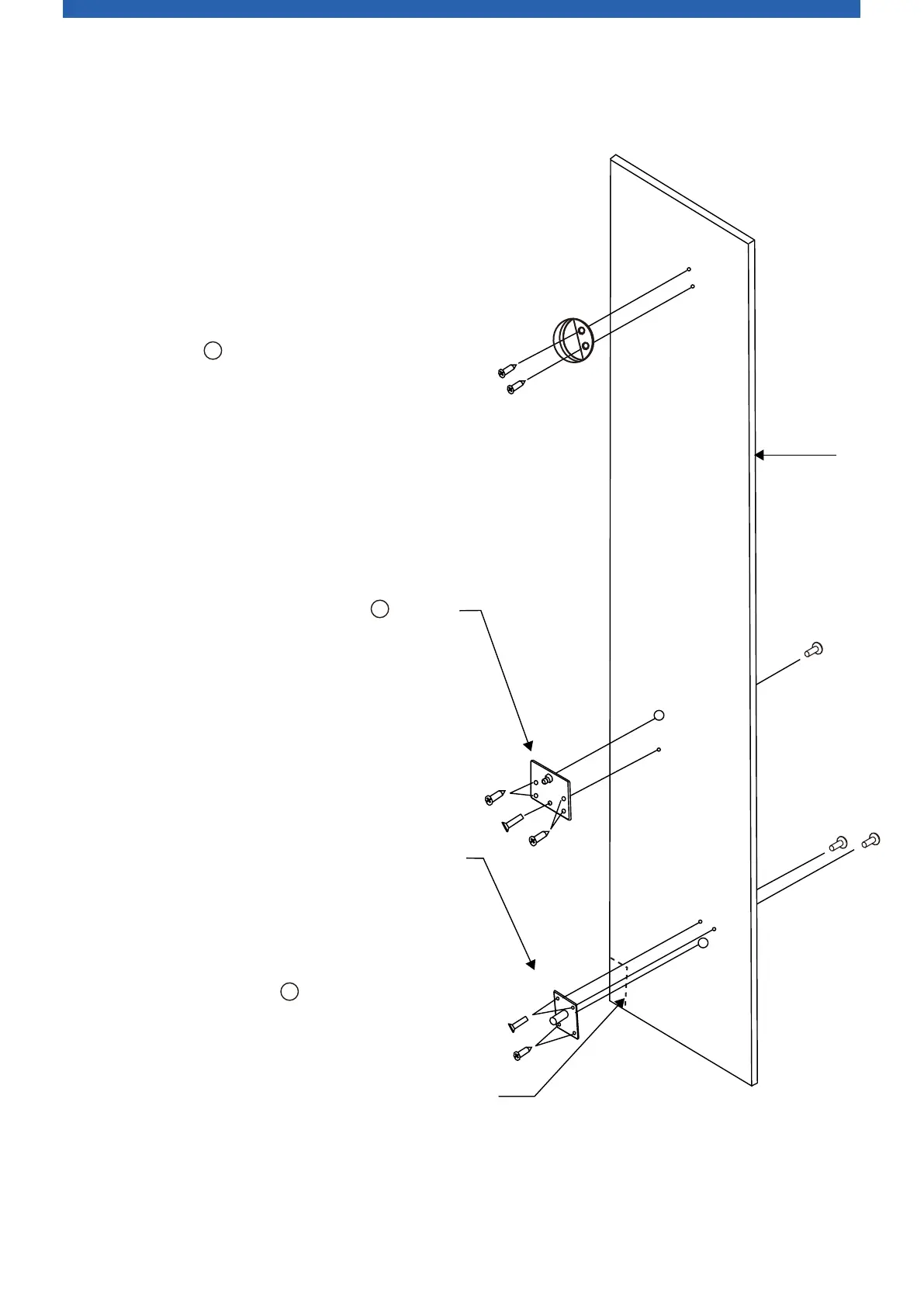

UPPER BALL STUD PLATE:
Step 27:
PART G:BED CABINET VERTICALS (RIGHT)
G.BED
CABINET
VERTICAL
S (RIGHT)
BED STOP: Drill two (2) holes 5/16" diameter x
1/2" deep. Insert the bed stop pin into hole and
attach with two (2) black screws.
B
Drill a hole 5/8" x 1/2" deep and insert nut into hole.
Mount plate to the vertical with four (4) black
screws and one(1) "T" Nut and machine screw.
B
MALE PIVOT PLATE: Drill a hole 5/8" diameter x
1/2" deep. Insert the 1/2" end of rod into hole. Drill
two (2) holes 1/4" diameter through the vertical
using the upper holes in the pivot plate as a guide.
Tap "T" Nuts into two (2) upper holes from outside
then screw 1/4" machine screws through pivot plate
into "T" Nuts. Screw two (2) silver screws through
pivot plate holes into vertical.
A
To Next Page
