16
RootsScrub E Series
F
G

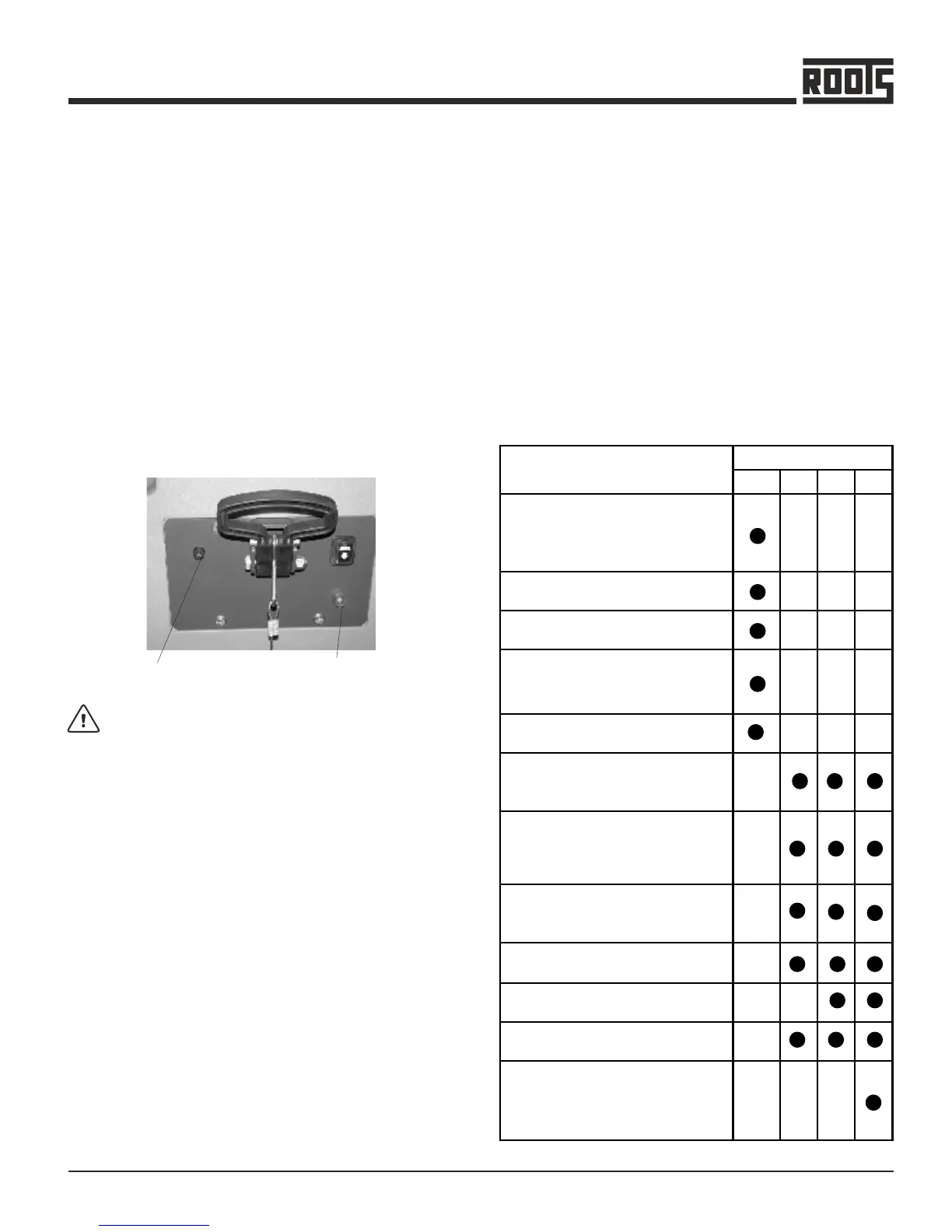

The electrical equipment of the machine uses a mains
voltage of 230 V/50 Hz AC. Easy access to brush motor
and suction turbine is possible after the upper part of the
unit has been titled to upside.
The suction turbine has been provided with a fuse (F)
having a rating of T4A. It must be replaced by a fuse of
same rating (T stands for Time -lag).
The brush motor is protected by a circuit breaker (G)
which requires to be manually reset incase of tripping.
When brush motor trips identify the cause and correct it
before trying to run the machine.
The protector can be reset by pressing transparent
dome on the electrical box cover. Please allow
approximately 30 seconds before resetting.
MAINTENANCE
Ÿ If there should be repeated cases of failure,
look for the reason.
Ÿ Any work at the electrical system has to be
carried out by specialized electricians only.
Maintenance Work
Compliance with our recommendations concerning
maintenance work will give you the certitude always
having a machine at your disposal, which is ready to
work and in good operating condition.
Please contact your local Roots Multiclean distributor;
the people there will be glad to perform that work for you.
There well trained personnel and genuine Roots spare
parts are at your disposal.
Ÿ Well trained personnel and genuine Roots spare
parts are at your disposal.
Ÿ In case of any inquiries or orders for spare parts,
please always quote the machine's serial number
mentioned on the nameplate.
Ÿ The name plate is fixed in the rear side of the
machine.
Ÿ When cleaning or servicing the machine, and when
replacing any parts, shut off the machine and on
principle disconnect the power plug from the power
supply.
Ÿ For reasons of safety during cleaning and/or
maintenance work in or on the tank, the tank lid -
when lifted - must be secured so as to prevent
accidental closing or tilting down.
Ÿ The machine may be taken into operation only if all
guarding devices are fitted and in protective position.
As far as possible, cleaning should not be done by
hand, but using appropriate tools or equipment.
Ÿ Maintenance and repair work may be carried out only
by means of suitable tools and by the people trained
in the factory. For reasons of safety, only genuine
Roots spare parts may be used.
Electrical system
Maintenance Schedule
Daily 50 100 200
Service Hours Every
Maintenance Work
Check connection - extension
cables and plugs for good
condition; discard defective
cables immediately
Empty and clean the dirty water
tank
Check the sealing strips of
squeegee for good condition
C h e c k the sq u e e ge e for
possibly collected foreign
matter and clean it, if required
Check the float for proper
operation
C h e c k t h e su c t i o n h o s e
between squeegee and soiled
water tank
Check the caps of both fresh
and dirty water drain hose;
c h e c k t h e m f o r s m o o t h
operation
Check the squeegee sealing
strips for wear; renew them if
required
Check the brush for tight fit and
wear; renew them if required
Check the tank lid seal; renew if
it is required
Check the fresh water infeed to
the brush
Remove carbon dust from the
suction motor, check the carbon
brush for smooth operation and
wear; renew as required
