ROOTS Flipper - Spare Parts List; Frame Group - Frame, Cover & Plate Assy

SPARE PARTS LIST
10
+
Flipper

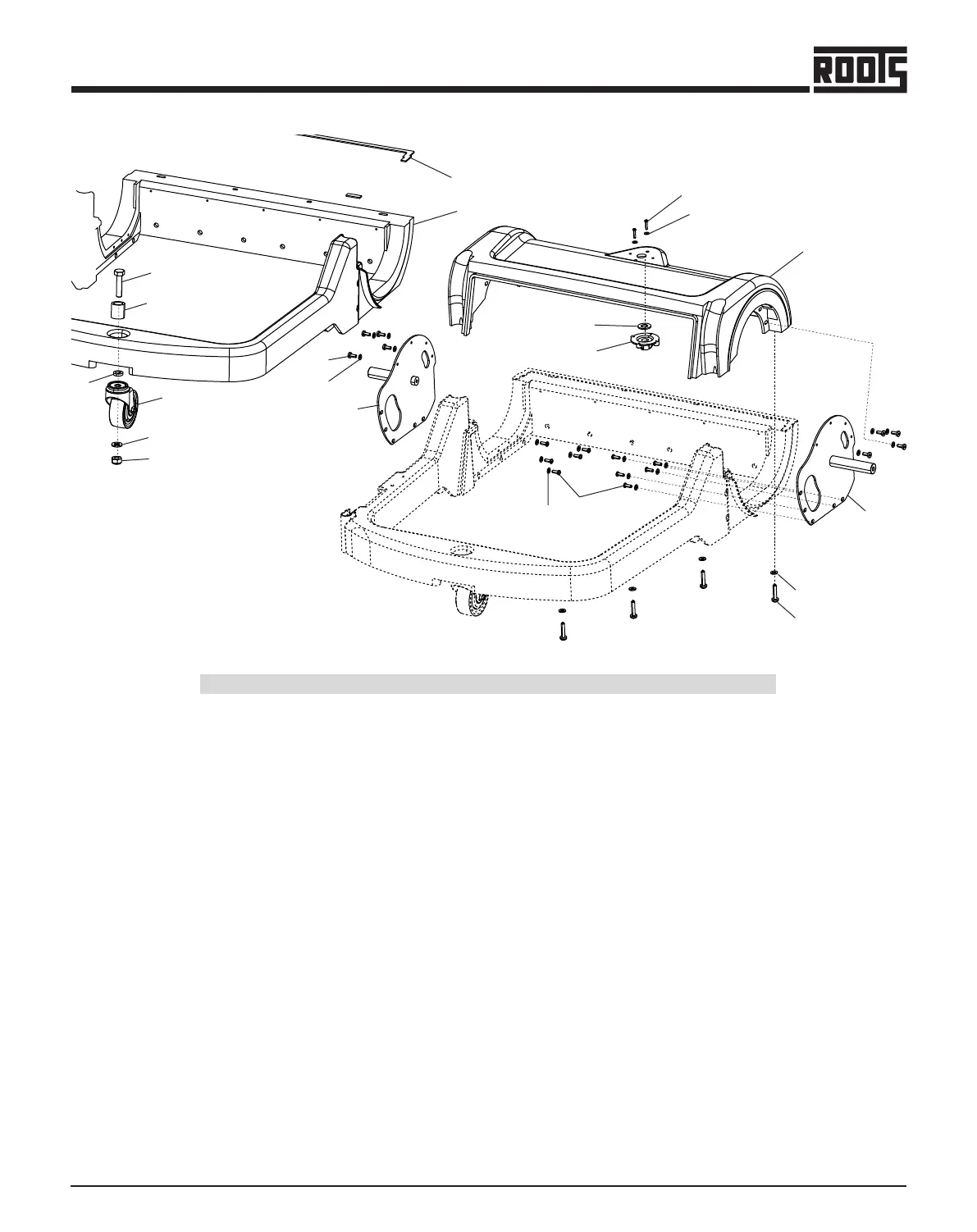

FRAME GROUP - Frame, Cover & Plate Assy
9
20
12
11
12
10
14
15
13
18
19
16
17
1
3
7
4
5
6
8
2
SL. NO PART NO DESCRIPTION QTY
1 553210123-00 FRAME 1
2 553230010-00 GASKET FRAME 1
3 553320088-00 SLEEVE - GROMMET 1
4 553210007-00 WASHER STEEL - 10.5X18.0X4.0 1
5 558320018-00 CASTOR WHEEL ASSY 1
6 552350017-00 WASHER STEEL - 8.4X24X2.0 1
7 552020040-00 HEX HEAD SCREW - M8X45 1
8 552480008-00 HEX NYLOCK NUT - M8 1
9 558210066-00 SIDE PLATE GROUP RH 1
10 558210065-00 SIDE PLATE GROUP LH 1
11 552290005-00 CRPH SELF TAPPING SCREW - 4.8X13 10
12 552350008-00 WASHER STEEL - 5.3X10.0X1.0 18
13 553210124-00 COVER 1
14 552270011-00 CRPH SELF TAPPING SCREW - 6.3X30 4
15 552350011-00 WASHER STEEL - 6.4X12.5X1.6 4
16 553210194-00 BOTTOM COVER THREAD ROD 1
17 552350046-00 WASHER - STEEL - 12.5X24X2.0 1
18 553260042-00 CRPH SELF TAPPING SCREW - 3.5X16 2
19 552350005-00 WASHER STEEL - 4.3X9.0X0.8 2
20 552130011-00 CR PAN HEAD SCREW - STEEL - M5X12 8
