10
Jet E 130 / 170
MACHINE OPERATION

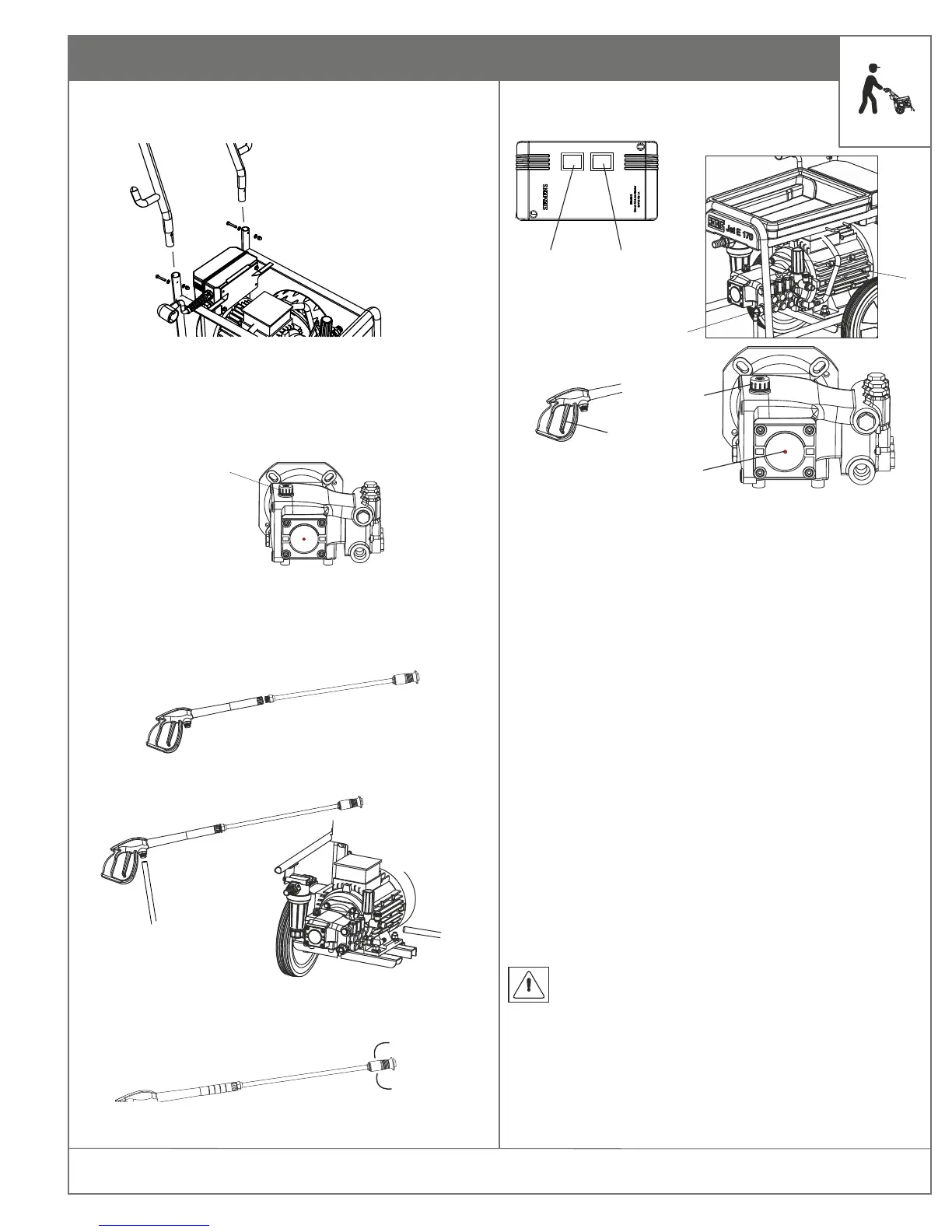

Before Operation - Assembly
Ÿ Insert the handle assembly into the machine and secure them
by screw (2 Nos), washer (4 Nos) & domed cap nut (2 Nos) &
with the help of tools.
Breather
with dip stick
Ÿ To avoid the oil leakage during the transportation, dummy
cap placed in breather position.
Ÿ Before operate the machine, remove the dummy cap and
replace the breather with dip stick.
Ÿ Fit the lance with the trigger with hand tight.
Ÿ Connect one end of the hose with Pump outlet and another
end of the hose with trigger by hand tight.
Ÿ Adjust the nozzle for required angle of water spray.
Operating & Indicator Elements
A - ON Switch ( Green color )
B - OFF Switch ( Red color )
C - Thermal valve
To avoid wear out of O rings, seals of pump, the thermal valve is
provided to eject the hot water from the pump when it is running
in idle condition.
D - Pressure adjustment knob
It is used to adjust the pressure of the outlet water.
E - Trigger lever
It is used operate the trigger.
F - Oil level indicator
To show the oil level of the pump.
o
Oil to be used - SAE 15W40 grade for below 40 environmental
temperature.
o
Oil to be used - WD751WD90 grade for above 40 environmental
temperature.
Oil capacity - 300ml
The level of oil should not come below the Red color
mark.
G - Breather with dip stick
It is used to refill the oil in pump.
E
A
B
F
G
C
D
