14

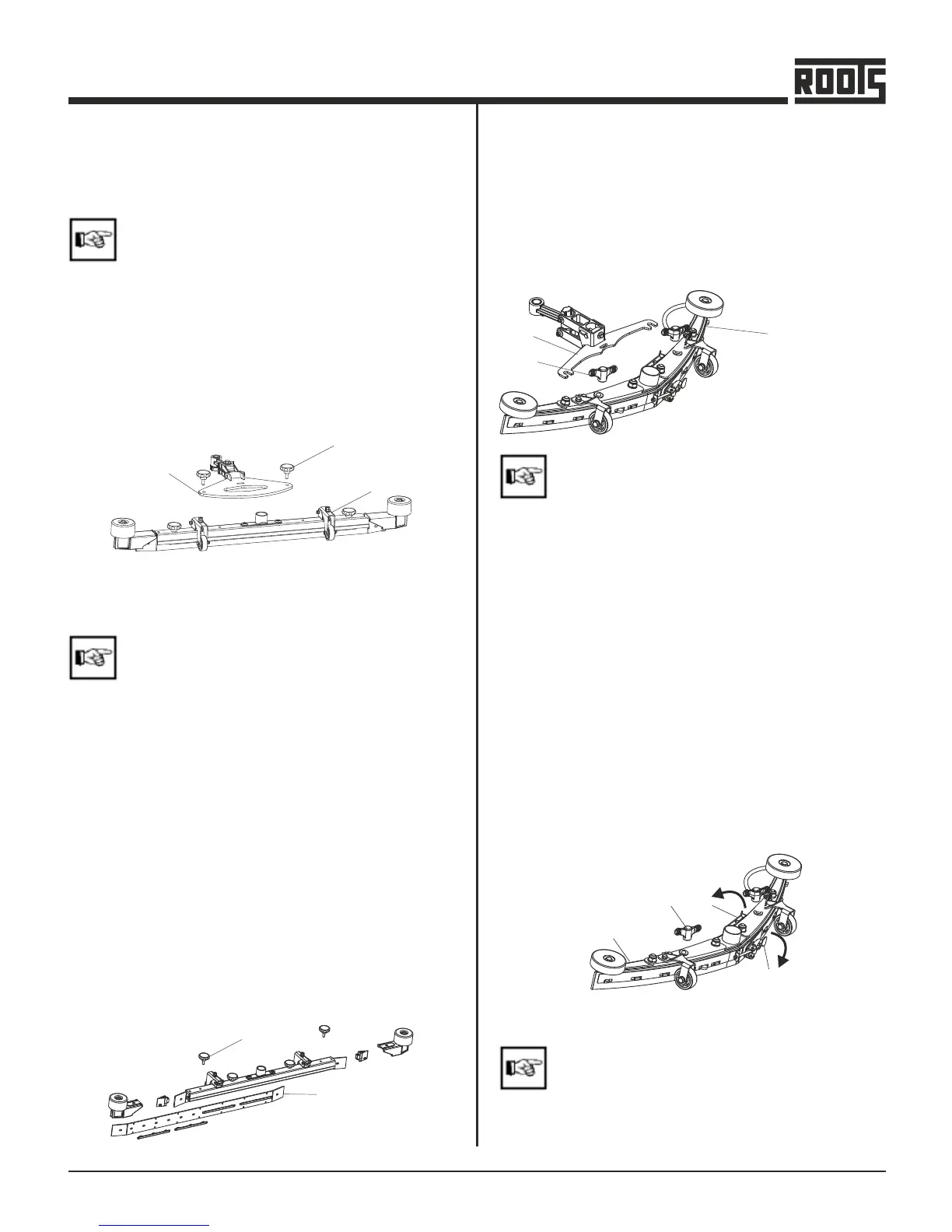

RootsScrub B45 Series
The squeegee bracket group fixed to the machine, allowing
swiveling and the oscillating movements. The squeegee,
protruding at the side, evades obstacles in the machines path
and is made swivel backwards.
Straight Squeegee
Before staring to work, check the squeegee for
possible collection of foreign matter and for proper
condition.
Mounting of Squeegee (first time)
Ÿ Lift squeegee bracket group (3)
Ÿ Mount squeegee (1) to squeegee bracket group (3) and
screw the knobs (2) as shown in figure.
Ÿ Attach suction hose to the tubular socket of the
squeegee.
The supporting wheel under the squeegee bracket
group has been adjusted by the factory.
Ÿ Lift squeegee.
Ÿ Unscrew the squeegee knob (1).
Ÿ Remove the squeegee towards the bottom side.
Ÿ Detach the suction hose from the tubular socket of the
squeegee.
Replacement of Sealing Strips
The sealing strips can be removed without any need of tools,
as follows:
Ÿ Remove the squeegee.
Ÿ Remove the knob at the deflector area.(1)
Ÿ Pull the sealing strips (2).
Ÿ Mount the new sealing strips by inverse sequence of
operation.
Removal of Squeegee
1. Squeegee
2. Squeegee Knob
3. Squeegee Bracket group
Mounting of Squeegee (first time)
Ÿ Lift squeegee bracket group (3)
Ÿ Mount squeegee (1) to squeegee bracket group (3) and
screw the knobs (2) as shown in figure.
Ÿ Attach suction hose to the tubular socket of the
squeegee.
The supporting wheel under the squeegee bracket
group has been adjusted by the factory.
Ÿ Lift squeegee.
Ÿ Unscrew the squeegee knob (2).
Ÿ Remove the squeegee towards the bottom side.
Ÿ Detach the suction hose from the tubular socket of the
squeegee.
Removal of Squeegee
Parabolic Squeegee
1
2
3
1. Squeegee
2. Squeegee Knob
3. Squeegee Bracket group
1
3
4
2
The sealing strips can be remove without any need of tools,
as follows:
Ÿ Remove the squeegee.
Ÿ Remove the squeegee knobs.(1)
Ÿ Release the Inner(3) and Outer clamps(4).
Ÿ Pull the sealing strips (2).
Ÿ Mount the new sealing strips by inverse sequence of
operation.
Replacement of Sealing Strips
OPERATION SQUEEGEE
Ÿ If worn, the rear sealing strip can be turned at the
front side edge.
Ÿ The supporting strip may modify the sealing strip
effect, hard-soft, and thus be adapted to different
floor conditions.
2
1
2
1
3
