15
RootsScrub B45 Series

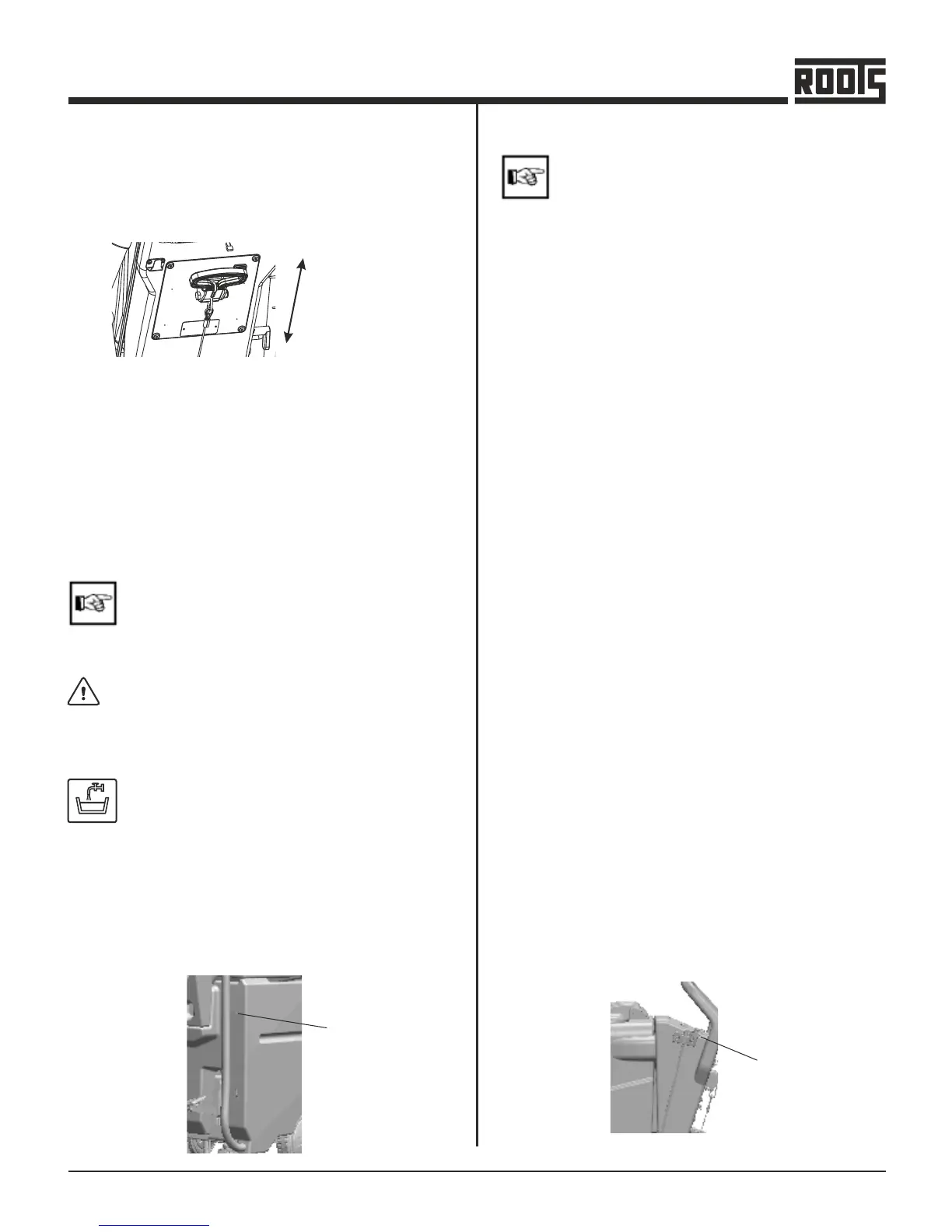

Raising / Lowering the Squeegee
Ÿ To lower the squeegee pull the handle up from the slot
and lower squeegee.
Ÿ To raise the squeegee pull the handle up and place in slot
provided.
Squeegee handle
movement
PROCEDURE FOR SCRUBBING
OPERATION SQUEEGEE
Dirty and Fresh Water Tanks
The machine has a Dirty Water Tank and a Fresh Water Tank.
The filling capacity is 45 liters. Please do not fill beyond that
mark; water temperature must not exceed 50°C. Dirty water
is fed via the suction hose into the dirty water tank.
- Do not collect any external water.
- When work is finished both the dirty and the fresh
water tanks on principle must be drained and
rinsed in order to preclude formation of residues.
For disposal of dirty water and lye, the legal provisions
have to be compiled with.
Check the in-feed filter in the tank regularly and clean
it if required.
Filling of Water
Ÿ Fill fresh water and cleaning solution as described below
before start of operation.
Ÿ Fill the fresh water tank with water (50° max) as required
by the work to be done through the filter which is present
in front of the machine and add detergent as specified by
the manufacturer.
Ÿ Filling amount : 45 (45 series)/60 (60 series) liters Max.
max 50°C
Max water
level
1
1
1
2
Use cleaning solution suitable for automatic
machines (low foaming) in order to preclude
damages at the suction turbine. We recommend our
agents for cleaning and care, which are perfectly
adopted to the machine.
How to operate the machine:
Ÿ Turn on Switch “B” the brush is rotating.
Ÿ To discharge the cleaning solution , position the lever
suitably to achieve the desired flow of cleaning solution.
Ÿ Lower the brush head.
Ÿ Lower the squeegee.
Ÿ Turn on switch “C” the suction turbine is running.
Ÿ As soon as the suction turbine is switched on operate the
lever to start water flow.
Ÿ The water flow can be adjusted to suite the floor.
Ÿ The water flow is maximum when the lever is in top
position.
Ÿ The water flow is minimum or to stop when the lever is in
bottom position.
Ÿ Water flow is controlled by mechanical stopper.
Ÿ Turn on Switch “C” the brush is rotating.
Ÿ To discharge the cleaning solution , position the lever
suitably to achieve the desired flow of cleaning solution.
Ÿ Lower the brush head.
Ÿ Lower the squeegee.
Ÿ Turn on switch “D” the suction turbine is running.
Ÿ As soon as the suction turbine is switched on operate the
lever to start water flow.
Ÿ The water flow can be adjusted to suite the floor.
Ÿ The water flow is maximum when the lever is in top
position.
Ÿ The water flow is minimum or to stop when the lever is in
bottom position.
Ÿ Water flow is controlled by solenoid valve.
For B 4545, B4550 & B4560:
(Refer Controls section of B4545 & B4550, B4560 in First
Operation)
For B 4545x & B4550x:
(Refer Controls section of B4545x & B4550x in First
Operation)
Lever to adjust
flow of water
