ROOTS RootsScrub E Series - Maintenance; Electrical System

16
RootsScrub E Series (230V/50Hz)
MAINTENANCE
MAINTENANCE WORK
Comp l iance with our reco mmendations conc e rning
maintenance work will give you the certitude of always having a
machine at your disposal, which is ready to work and in good
operating condition.
Please contact your local Roots Multiclean Ltd. dealer. The people
there will be glad to perform that work for you. Their well trained
personnel and genuine Roots spare parts are at your disposal.
l In case of any inquiry or order for spare parts, please always
quote the machine's serial number mentioned on the
nameplate.
l The name plate is fixed in the rear side of the machine.
l When cleaning or servicing the machine, and when replacing
any part, shut off the machine and on principle disconnect
the power plug from the power supply.
l For reasons of safety during cleaning and/or maintenance
work in or on the tank, the tank lid - when lifted - must be
secured so as to prevent accidental closing or tilting down.
l The machine may be taken into operation only if all guarding
devices are fitted and in protective position. As far as
possible, cleaning should not be done by hand, but using
appropriate tools or equipment.
l Maintenance and repair work may be carried out only by
means of suitable tools and by the people trained in the
factory. For reasons of safety, only genuine Roots spare parts
may be used.
WARNING
è Maintenance and/or repair operaons must be done by
skilled and authorized personnel; all operaons on
electrical devices are to be performed by specialized
personnel only.
è Read this manual thoroughly before performing any repair
or maintenance operaons.
è For repair and/or maintenance of high reach areas of the
machine, use a suitable work li or working plaorms.
è Use genuine Roots spare parts ONLY which are specifically
designed for the machine.
è USE suitable PPE at all mes when working or servicing the
machine.
IMPORTANT!
è ALWAYS SWITCH OFF AND REMOVE KEY
BEFORE PERFORMING ANY MAINTENANCE
OR REPAIR WORK.
è ALWAYS ATTACH A 'DO NOT START' OR
SIMILAR WARNING SIGN TO THE KEY
SWITCH OR A CONTROL BEFORE CLEANING
OR SERVICING THE MACHINE.
DO NOT START
DANGER

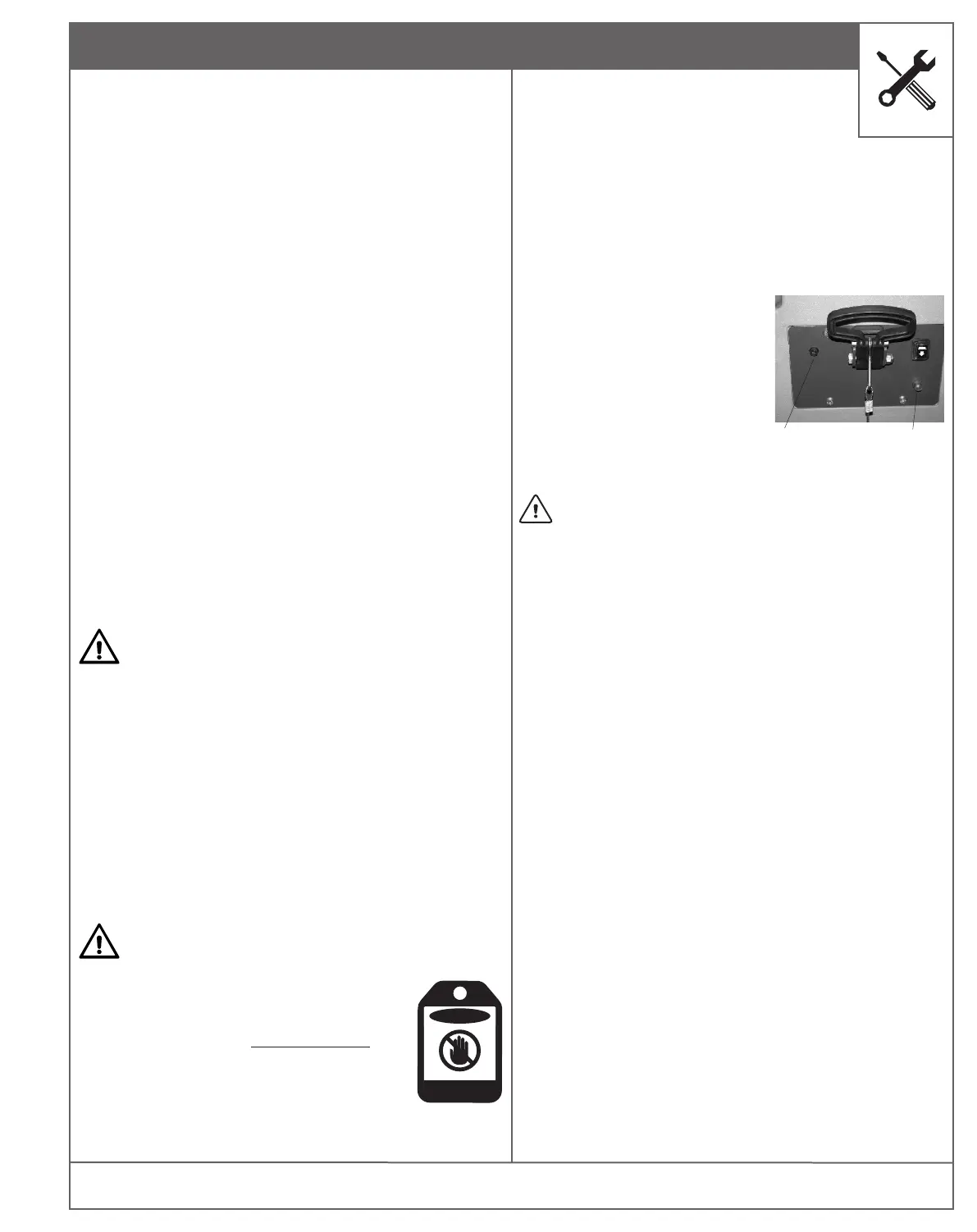

F G
The electrical equipment of the machine uses a
mains voltage of 230 V/50 Hz AC. Easy access to
brush motor and suction turbine is possible after the upper part
of the unit has been titled to upside.
The suction turbine has been provided with a fuse (F) having a
rating of T4A. It must be replaced by a fuse of same rating (T
stands for Time -lag).
The brush motor is protected by a circuit breaker (G) which
requires to be manually reset incase
of tripping. When brush motor trips
identify the cause and correct it
before trying to run the machine.
The protector can be reset by
pressing transparent dome on the
electrical box cover. Please allow
approximately 30 seconds before
resetting.
Ÿ If there should be repeated cases of failure, look for the
reason.
Ÿ Any work at the electrical system has to be carried out
by specialized electricians only.
Maintenance Work
Comp l iance with our reco mmendations conc e rning
maintenance work will give you the certitude always having a
machine at your disposal, which is ready to work and in good
operating condition.
Please contact your local Roots Multiclean distributor; the people
there will be glad to perform that work for you. There well trained
personnel and genuine Roots spare parts are at your disposal.
Ÿ Well trained personnel and genuine Roots spare parts are at
your disposal.
Ÿ In case of any inquiries or orders for spare parts, please
always quote the machine's serial number mentioned on the
nameplate.
Ÿ The name plate is fixed in the rear side of the machine.
Ÿ When cleaning or servicing the machine, and when replacing
any parts, shut off the machine and on principle disconnect
the power plug from the power supply.
Ÿ For reasons of safety during cleaning and/or maintenance
work in or on the tank, the tank lid - when lifted - must be
secured so as to prevent accidental closing or tilting down.
Ÿ The machine may be taken into operation only if all guarding
devices are fitted and in protective position. As far as
possible, cleaning should not be done by hand, but using
appropriate tools or equipment.
Ÿ Maintenance and repair work may be carried out only by
means of suitable tools and by the people trained in the
factory. For reasons of safety, only genuine Roots spare parts
may be used.
Electrical System
