RootsScrub E4550 ES
The circuit breaker is used to protect the brush motor in case of
an overload. To reset the circuit breaker, press the red button at
the rear panel of the machine. Wait 30 seconds before a reset.
Circuit breaker:
If there should be repeated cases of failure, look
for reason.
If there should be repeated cases of failure, look for reason.
NOTE
NOTE
FUSE RATING USED FOR
F1 4.0A For Brush motor
F2 6.3A For Vacuum motor
F3 1.0A For Pump
F4 0.5A For Solenoid valve
F5 0.5A For Beacon lamp
FUSE DETAILS
MAINTENANCE
WARNING
To access the suction turbine, follow the below
procedure.
Suction turbine:

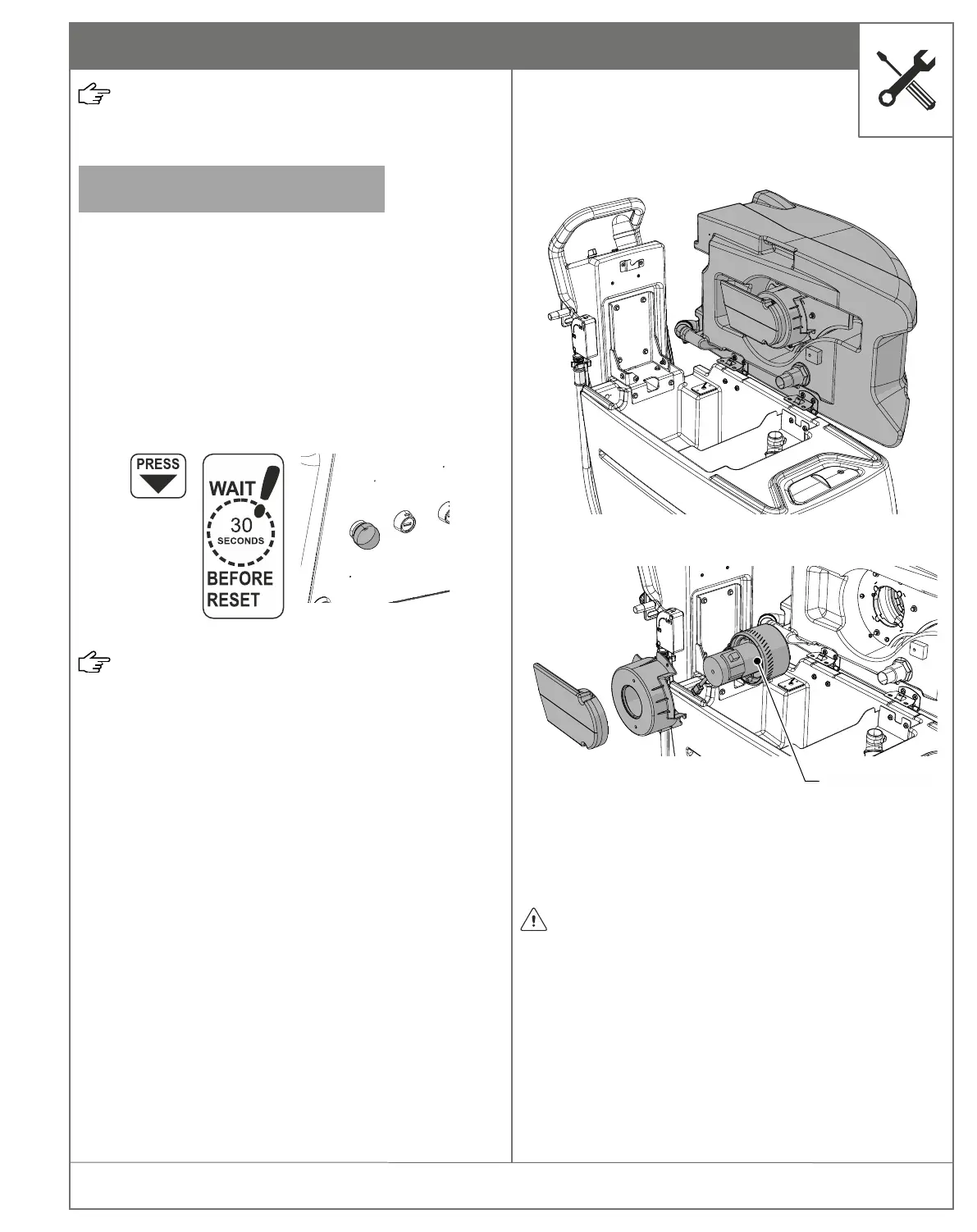

= Tilt the dirty water tank and secure it (Step 1).
= Remove the suction turbine assembly to perform electrical
maintenance or to replace it (Step 2).
Only RMCL authorized and RMCL skilled technicians are allowed
to perform electrical maintenance tasks on the suction turbine.
Step 1:
Step 2:
Sucon turbine
