ROSCAMAT 200 - Page 14

44
ROSCAMAT
®
200
GB

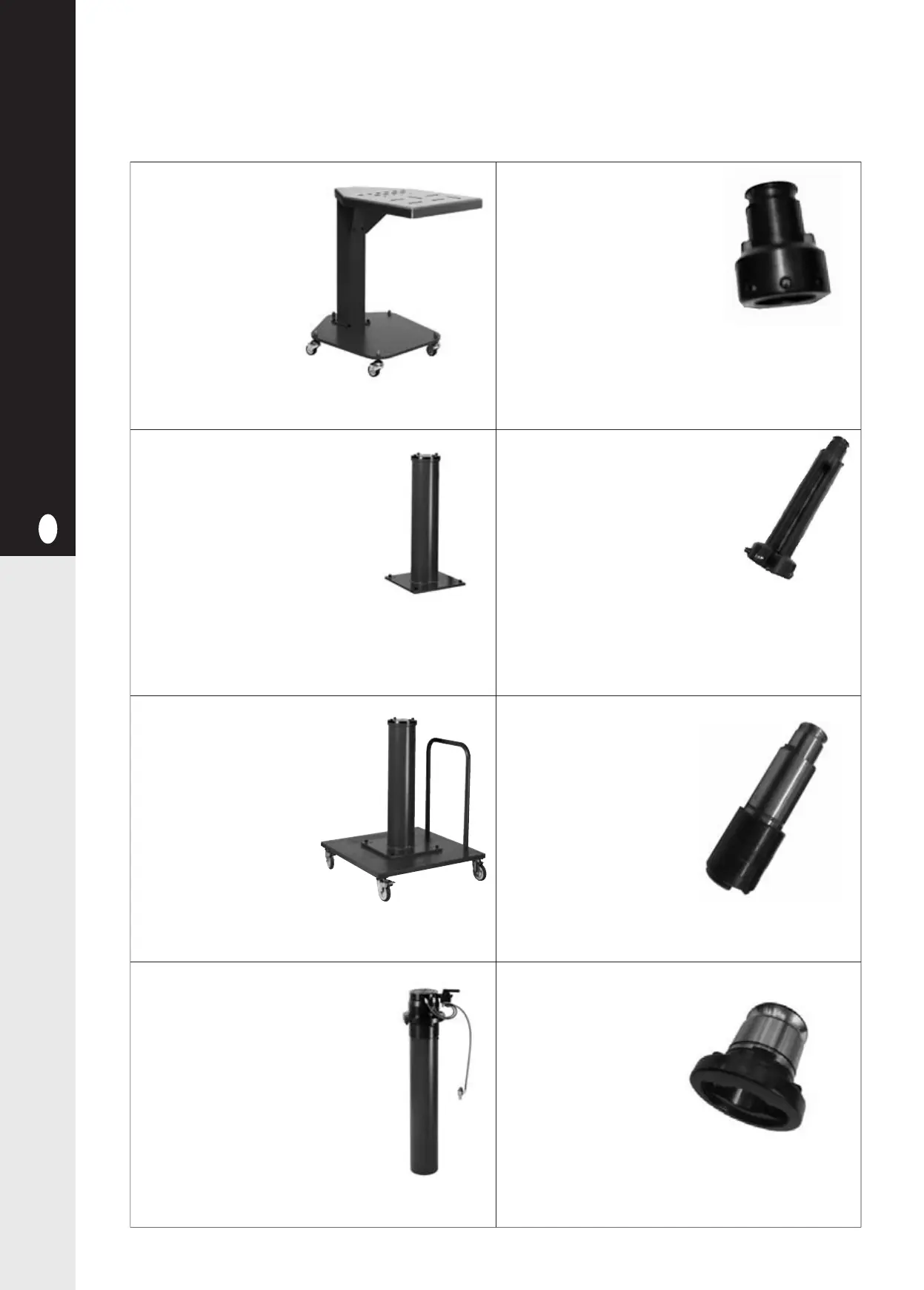

TROLLEY AND COLUMN
For moving the working
unit.
With 4 pivoted wheels.
Dimensions:
700 x 700 x 940 mm.
Weight: 124 Kg.
SMALL TABLE
Table supported by a
single column
500 x 500 x 900 mm.
Light and robust, very
useful for medium or
small pieces. Provided
with 4 wheels and
notches for attaching
the workpieces or tools.
COLUMN
Used to mount the machine
on the floor by means of 4
metallic dowels.
Base: 350 x 350 x 750 height.
Weight: 20 Kg.
QUICK-CHANGE EXTENSION
To separate tools 80 mm from the
headmember, and gain access to
difficult areas.
REDUCING CUP
To convert the output
diameter from 19 to 13 mm.
and be able to match
tapholders Type-0.
THREADING DIE HOLDER
For die threading.
Capacity range M5 – M12.
LONG THREADING DIE HOLDER
For guided die threading
Capacity range:M6-M12
• Long threading die holder 19/1 M5-M6
• Long threading die holder 19/1 M8
• Long threading die holder 19/1 M10
• Long threading die holder 19/1 M12-M14
LIFTER: 2 types
- Pneumatic: it consists of a collapsible
column and a torsion–protected
pneumatic cylinder 550 mm. stroke in
vertical direction.
Note: the lifter can be mounted onto a
column, a trolley, or a table and can
support any ROSCAMAT model.
STANDARD PRODUCT RANGE
