43
ROSCAMAT
®
200
GB
STANDARD PRODUCT RANGE
TS-IV PNEUMATIC MOTOR
202A0102 350 36 Ø 19 M16 M14
202B0102 750 17 Ø 19 M12 M10
Motor
Max. speed (r.p.m.) Max. torque (Nm) Coupling diameter Max. thread aluminium Max. thread steel < 90 kg.

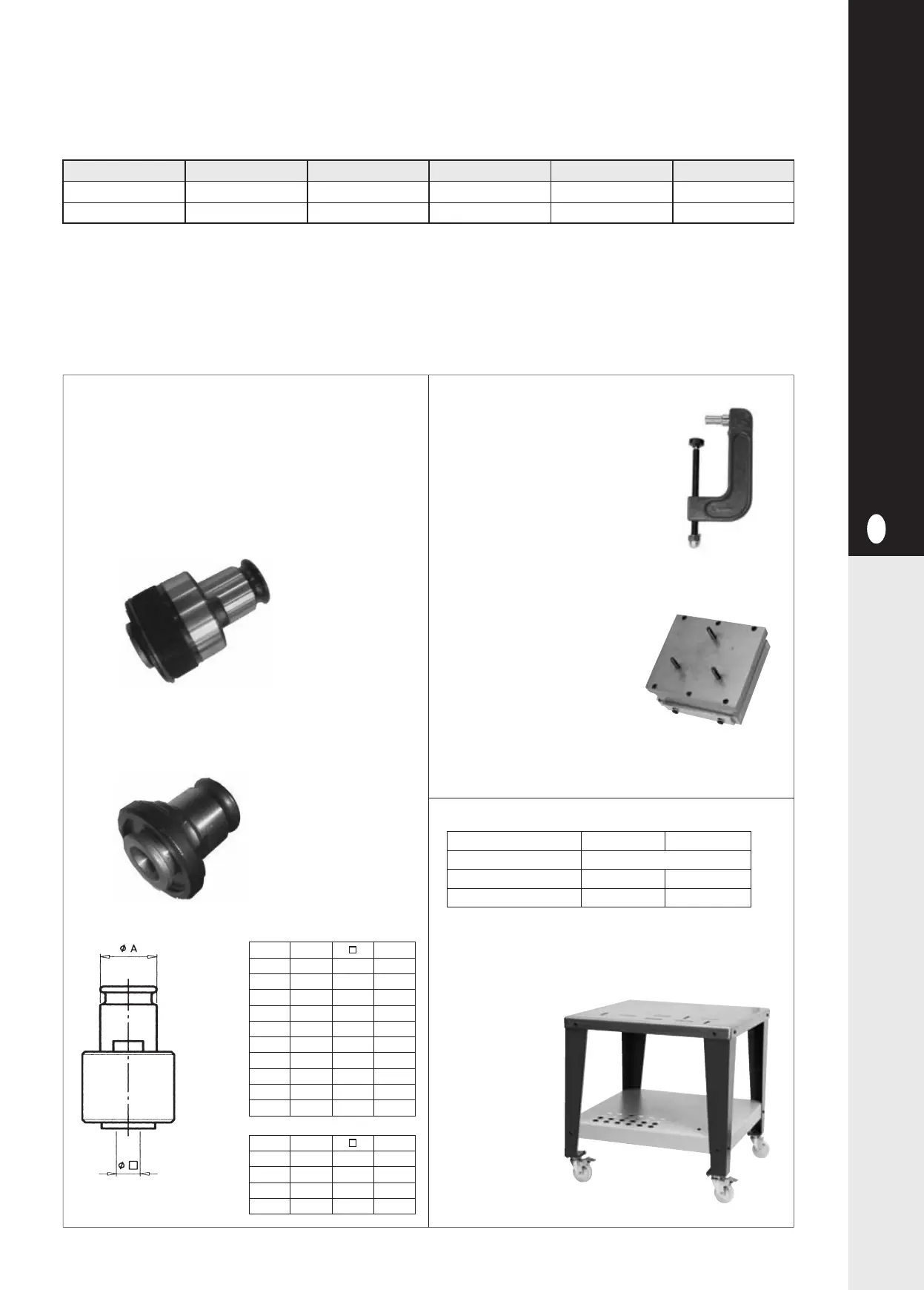

QUICK-CHANGE TOOLHOLDER
It comprises a wide range of tapholders, with or without
clutch; and some other quick holding fixtures for
different tools, such as drills, sinking tools, threading
dies, socket wrenches, etc.
• Toolholder with safety clutch:
(To make the tap slip when it reaches the bottom of
the hole)
Type-1 Ø 19 capacity range M2-M16.
• Toolholder without safett clutch:
(For holding different tools of cylindrical shank and
driving cube)
Type-1 Ø 19 capacity range M2-M16.
NORMALIZED SIZES
CLAMP SUPPORTS
• Clamping device:
To mount the machine
on any table or
workbench.
• Magnetic support:
To mount the machine
on any flat metallic
surface.
DETACHABLE TABLE (2 types)
Provided with:
4 wheels with brakes.
Notches for fixing the workpieces or tools.
Supports for tapholders.
Sizes (mm.): 850 x 850 700 x 700
Height (mm.): 850
Weight (kg.): 74 47
Max weight on table:
200 kg. 150 kg.
Métrica Ø A
M3 3,5 2,7 19
M4 4,5 3,4 19
M5 6 4,9 19
M6 6 4,9 19
M7 7 5,5 19
M8 8 6,2 19
M10 10 8 19
M12 9 7 19
M14 11 9 19
M16 12 9 19
M6 4,5 3,4 19
M7 5,5 4,3 19
M8 6 4,9 19
M10 7 5,5 19
Métrica Ø A
DIN 371
DIN 376
