Description
ROSCAMAT
®
200
GB

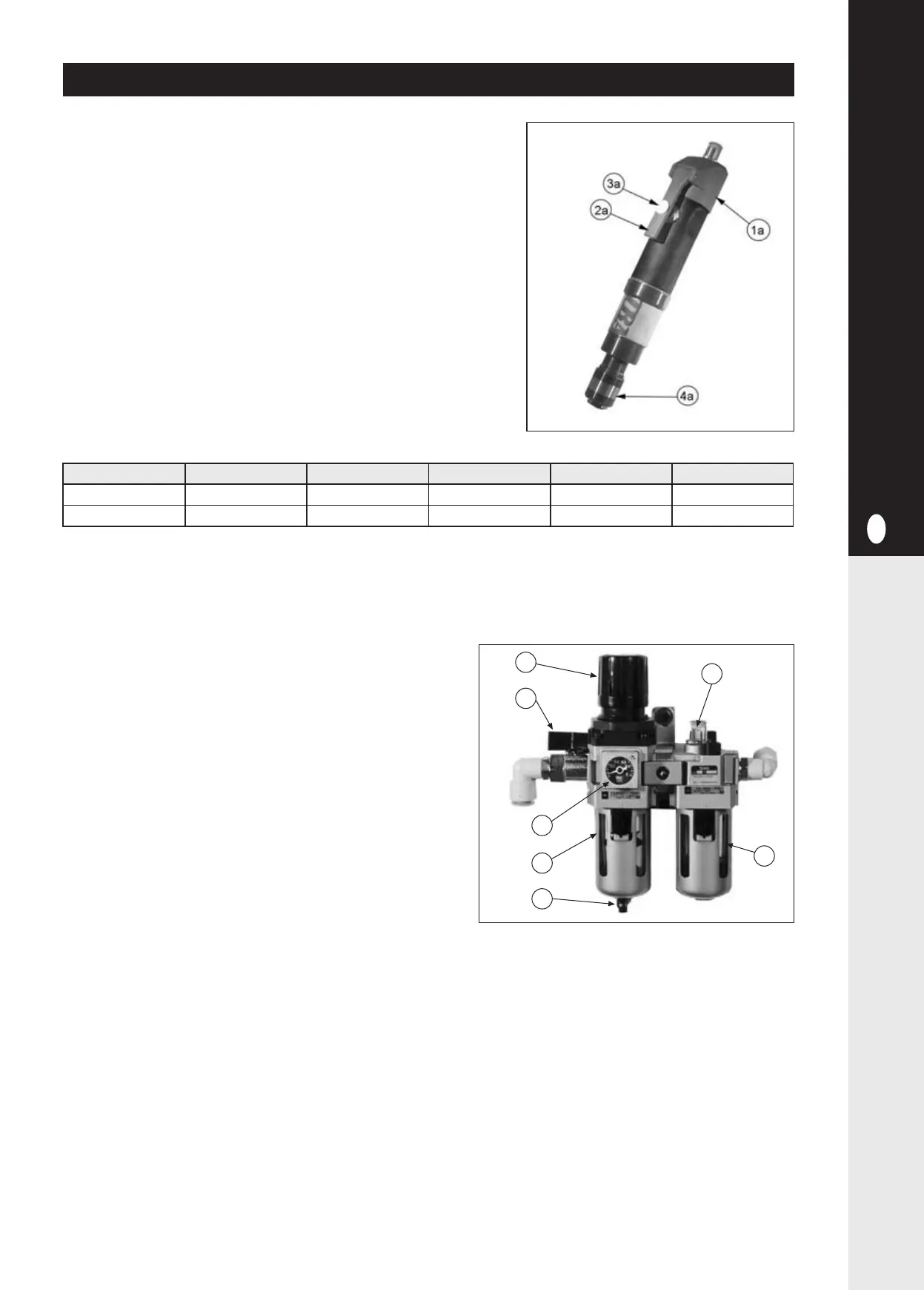

PNEUMATIC MOTOR TS-VII
350 rpm / 750 rpm
CHARACTERISTICS:
Power: 500 W.
Consumption: 600 l/min.
Motor weight: 1,5 kg.
Noise level: 78 db.
Intake filter: 5 Um.
1a. Exhaust filter
2a. Starting lever
3a. Reversing button
4a. toolholder quickchange
200001A1 350 36 Ø 19 M16 M14
200002A1 750 17 Ø 19 M12 M10
Machine Max. speed (rpm) Max. torque (Nm) Coupling diametre Max. thread aluminium Max. thread steel < 90 kg.
REGULATING FILTER UNIT-AIR
LUBRICATION
REGULATING FILTER UNIT-AIR LUBRICATION
1b - Pressure regulator.
2b - Flow rate regulating valve.
3b - Pressure gauge.
4b - Reservoir (condensed water).
5b - Drain pipe (WATER)
6b - Oil reservoir (SAE-10)
7b - Lubrication regulating knob and inspection sight
glass.
1b
2b
3b
4b
5b
6b
7b
