ROSCAMAT 200 - Description R-200 VH; Working Ranges R-200 VH

34
ROSCAMAT
®
200
GB

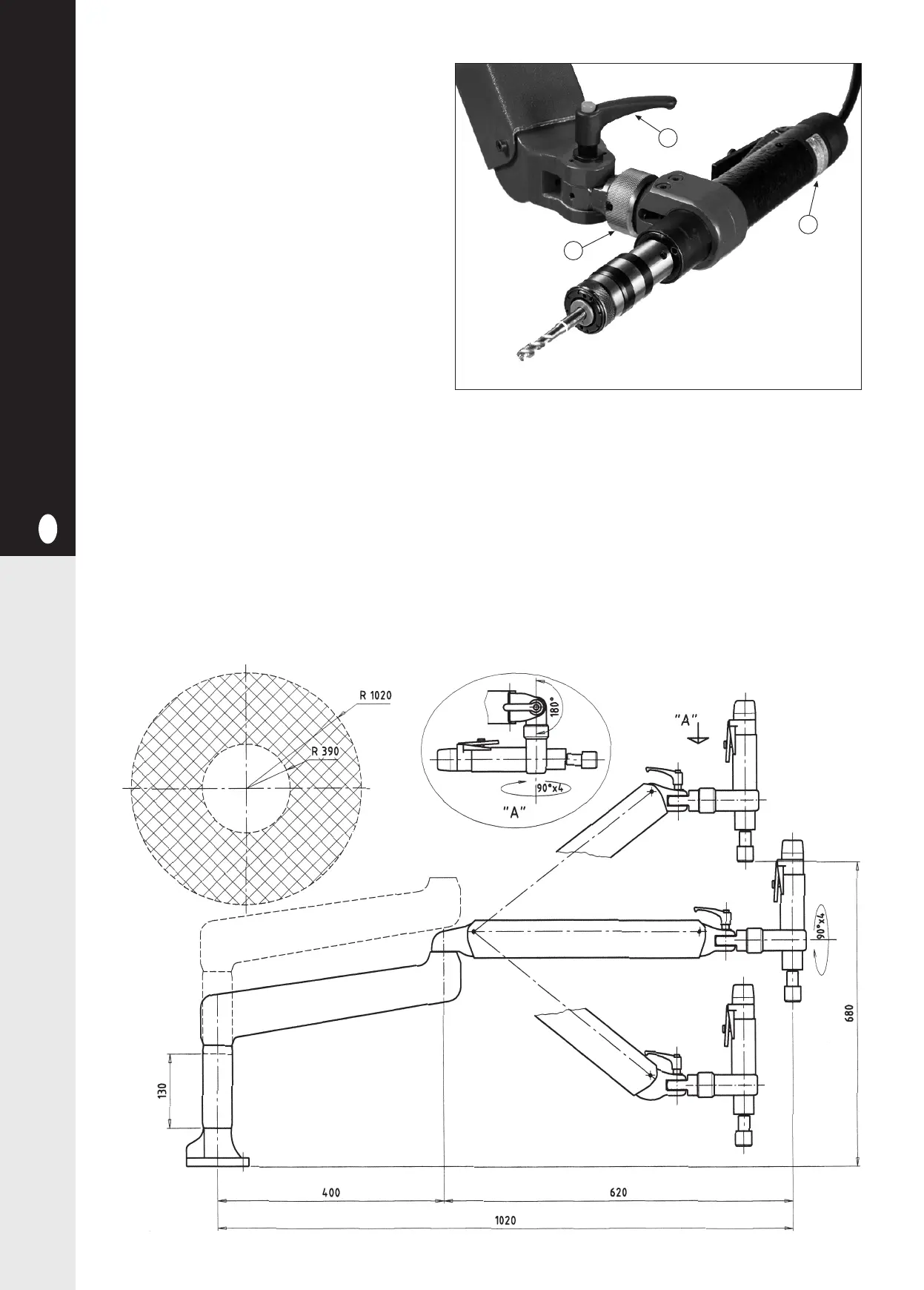

DESCRIPTION MACHINE
The ROSCAMAT-200 can be supplied with an
articulated head. This bracket of easy handling
can be set in four different positions 90º apart.
1. Handle
2. Milled nut
3. Motor
ROSCAMAT-200 VH
WORKING AREAS
1
2
3
Articulated head
Vertical operations:
• Place the motor in vertical position and lock
the handle (1) and the milled nut (2) until
completely tightened. The ROSCAMAT is ready
to work.
Horizontal operations:
• Loose the milled nut (2) to unlock the joint of
the motor.
• Turn the head 90º till you reach the interlock
and strongly tight the milled nut again.
• Unlock the handle (1) located in the upper
side of the head.
• When moving the arm, the operator will have
to manually maintain the perpendicularity to
the working plane level surface.
Do not lock the handle (1) if you are working
in horitzontal operations.
