Rearview Mirror Installation
Figure. 2
Figure. 1
For standard mirror monitor

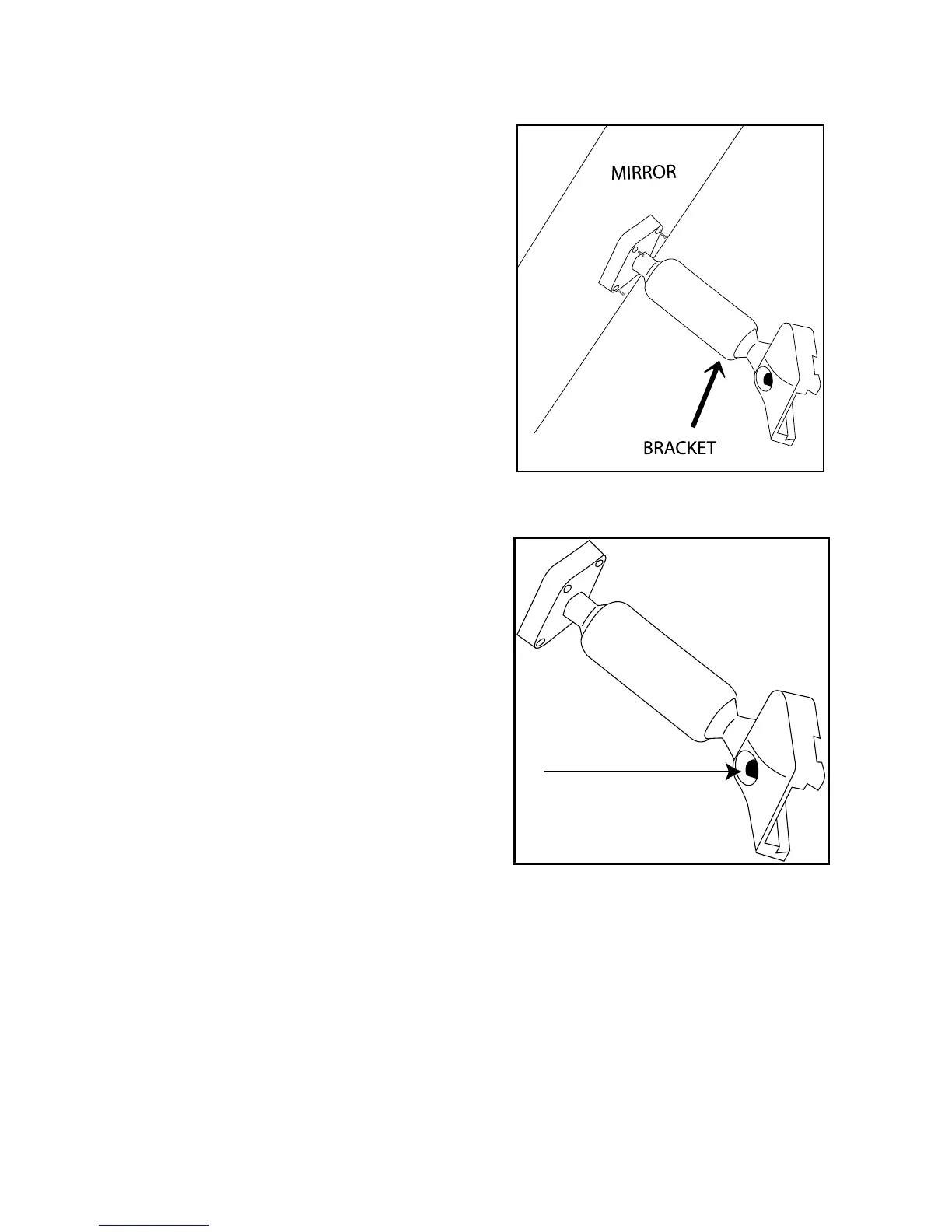

1. Attach windshield mounting bracket
to the back of STSM230 mirror/
monitor. Be certain that the monitor
is in the upright position when
attaching the mounting bracket.
(Figure 1)
2. Remove old rearview mirror from
factory mirror-mount tab.
3. Mount rearview mirror/monitor
securely to mounting tab by
tightening screw. (Figure 2)
4. Route the 8-pin connector end of
the power harness to the location
of mirror/monitor (preferably
through the headliner and the
vehicles A or B pillars).
5. Connect the power harness with
the mating 8-pin receptacle end
coming out of the mirror/monitor.
IMPORTANT: Please be certain to
match both guiding lines on each
connector for a proper connection.
To Next Page
