8 Rose Point Navigation Systems

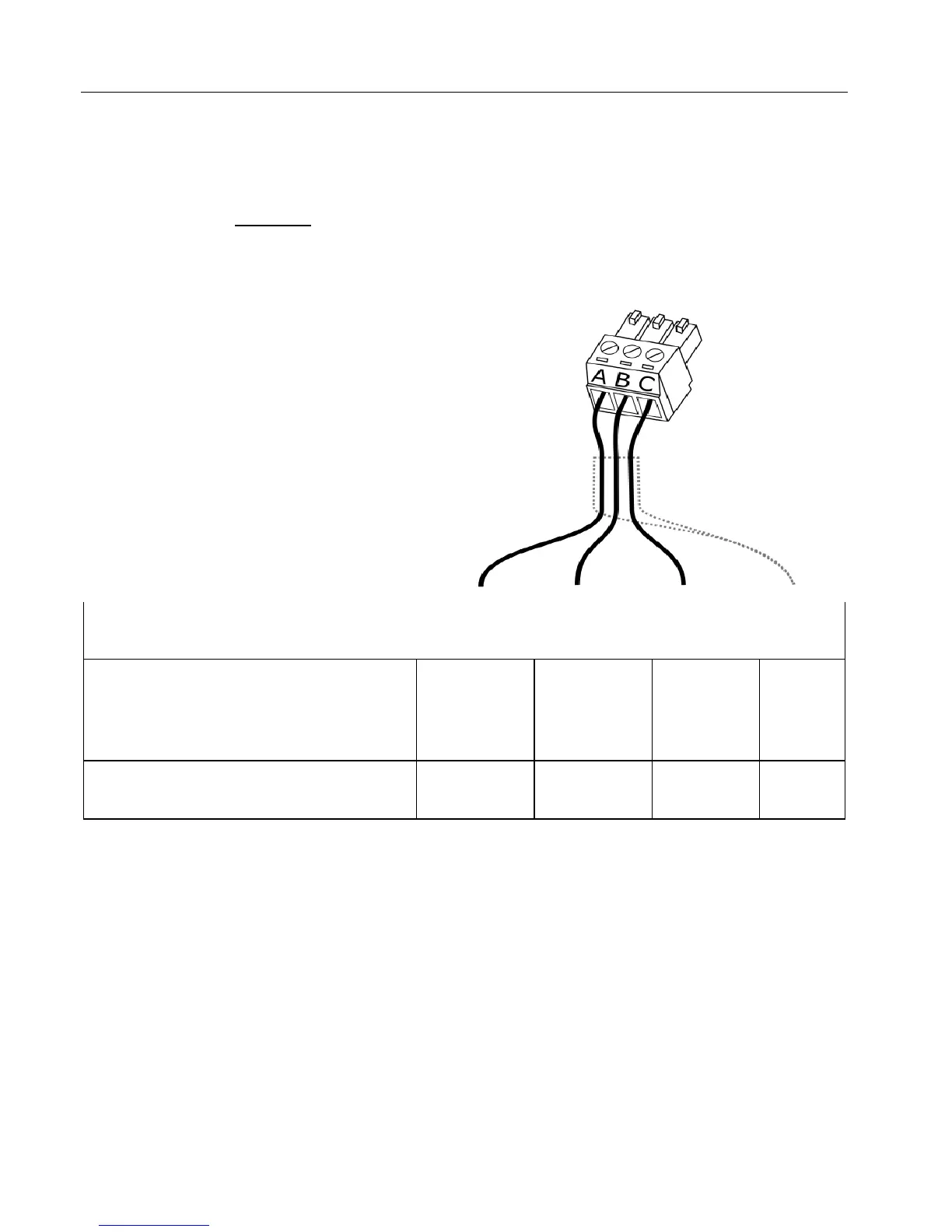

Connecting Nemo LISTENER Port to a Talker (RS- 422)
(Compliant with NMEA 0183 v2.x – 4.x and NMEA 0182-HS 1.x)
Nemo Gateway receives data through these ports.
DEVICE BEING CONNECTING TO NEMO GATEWAY
Name / Label
+
A / +
-
B / -
0183-HS
C
Shield
S
Description
Data-H
Data-L
Ground
Shield
Note: NMEA 0183-HS C and Shield must be connected when connecting to
NMEA 0183-HS (38,400 baud) devices. Non NMEA 0183-HS devices may not
have a Ground and Shield.
Nemo Gateway LISTENER port
connector
