Nemo Gateway 9

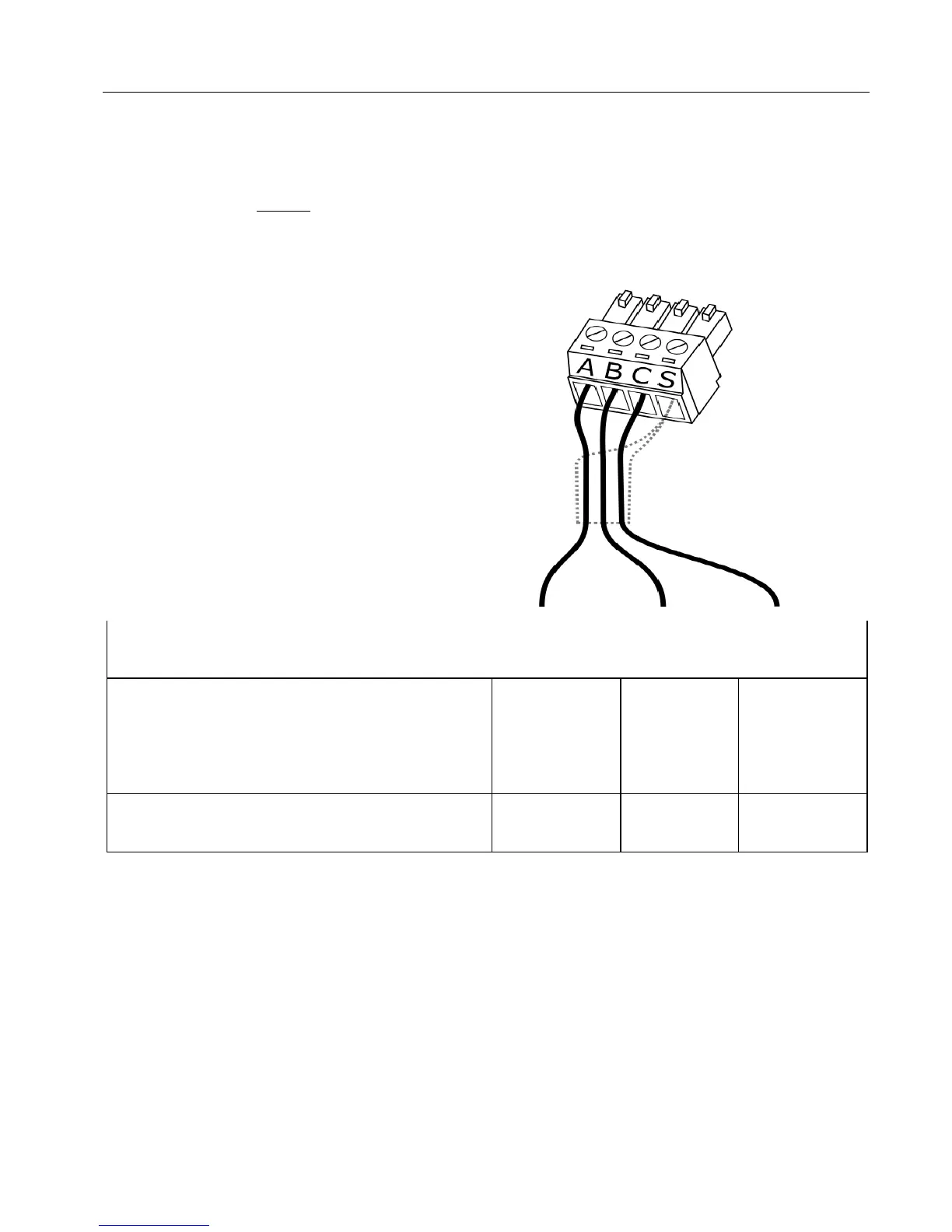

Connecting Nemo TALKER Port to Listener (RS-422)
(Compliant with NMEA 0183 v2.x – 4.x and NMEA 0183-HS 1.x)
Nemo Gateway sends data through these ports.
DEVICE BEING CONNECTING TO NEMO GATEWAY
Name / Label
+
A / +
-
B / -
0183-HS
C
Description
Data-H
Data-L
Ground
Note: NMEA 0183-HS C must be connected when connecting to NMEA 0183-
HS (38,400 baud) devices. Non NMEA 0183-HS devices may not have a Ground
and Shield.
Nemo Gateway TALKER port
connector
