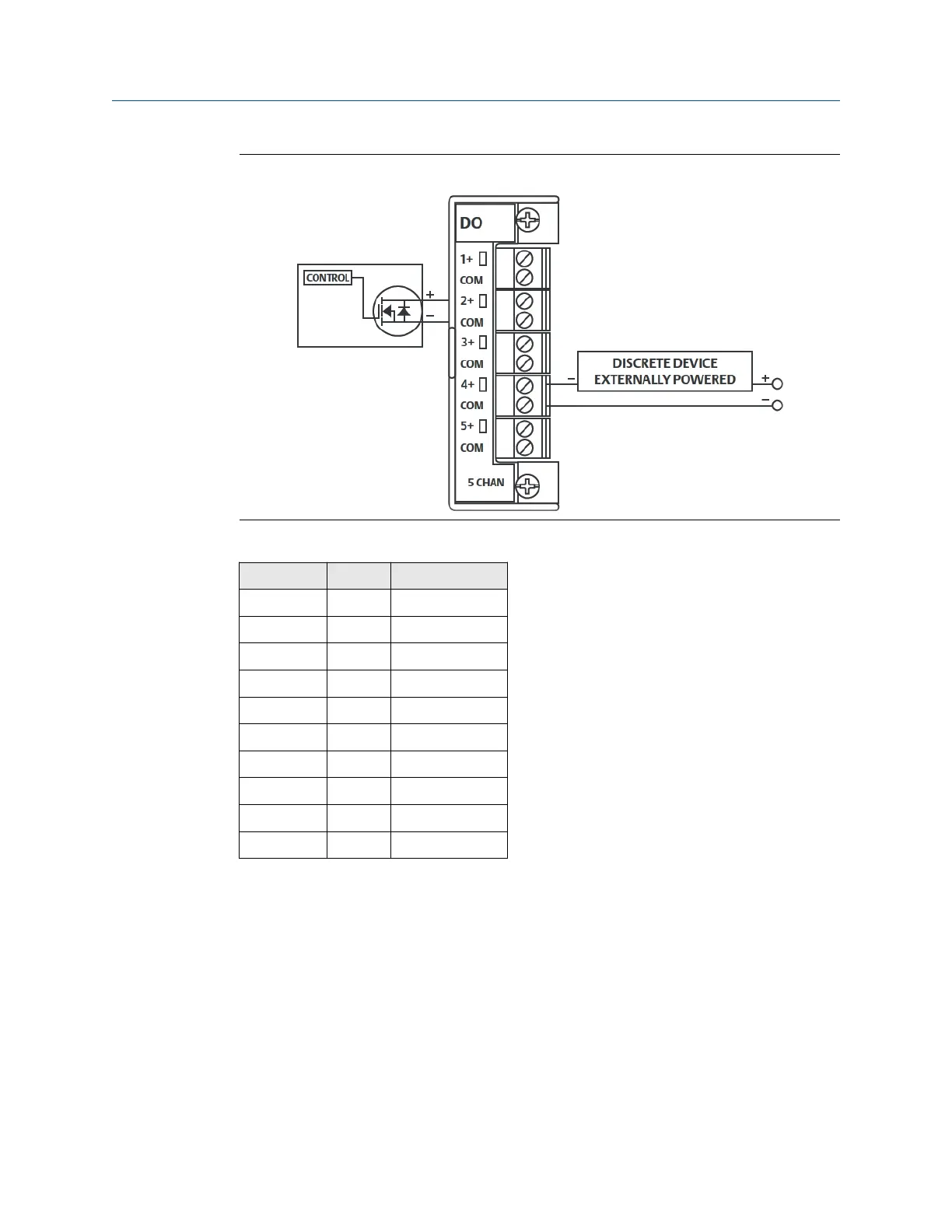

Figure 2-12: Typical Wiring
Table 2-2: ROC800 Discrete digital wiring
Terminal Label Definition
1 1 CH 1 Positive
2 2 CH 2 Positive
3 3 CH 3 Positive
4 4 CH 4 Positive
5 5 CH 5 Positive
6 6 CH 6 Positive
7 7 CH 7 Positive
8 8 CH 8 Positive
9 COM Common
10 COM Common
