FOX
Seite /
Page
- 16 -
15.03.1996 / PT / Rev.02
© 1996
T
echnische Beschreibung
T
echnical Description
Pumpengehäuse
Pump Housing
Exzenter
Eccentric
V
entildeckel
V
alve Cover
V
entildeckel
V
alve Cover
Absaugleitung
Priming Line
Ausstoßöf
fnung
Exhaust Line
Ausstoßöf
fnung
Exhaust Line
Saugventilplatte
Suction V
alve Plate
Druckventilplatte
Pressure V
alve Plate
Saugventilplatte
Suction V
alve Plate
Druckventilplatte
Pressure V
alve Plate

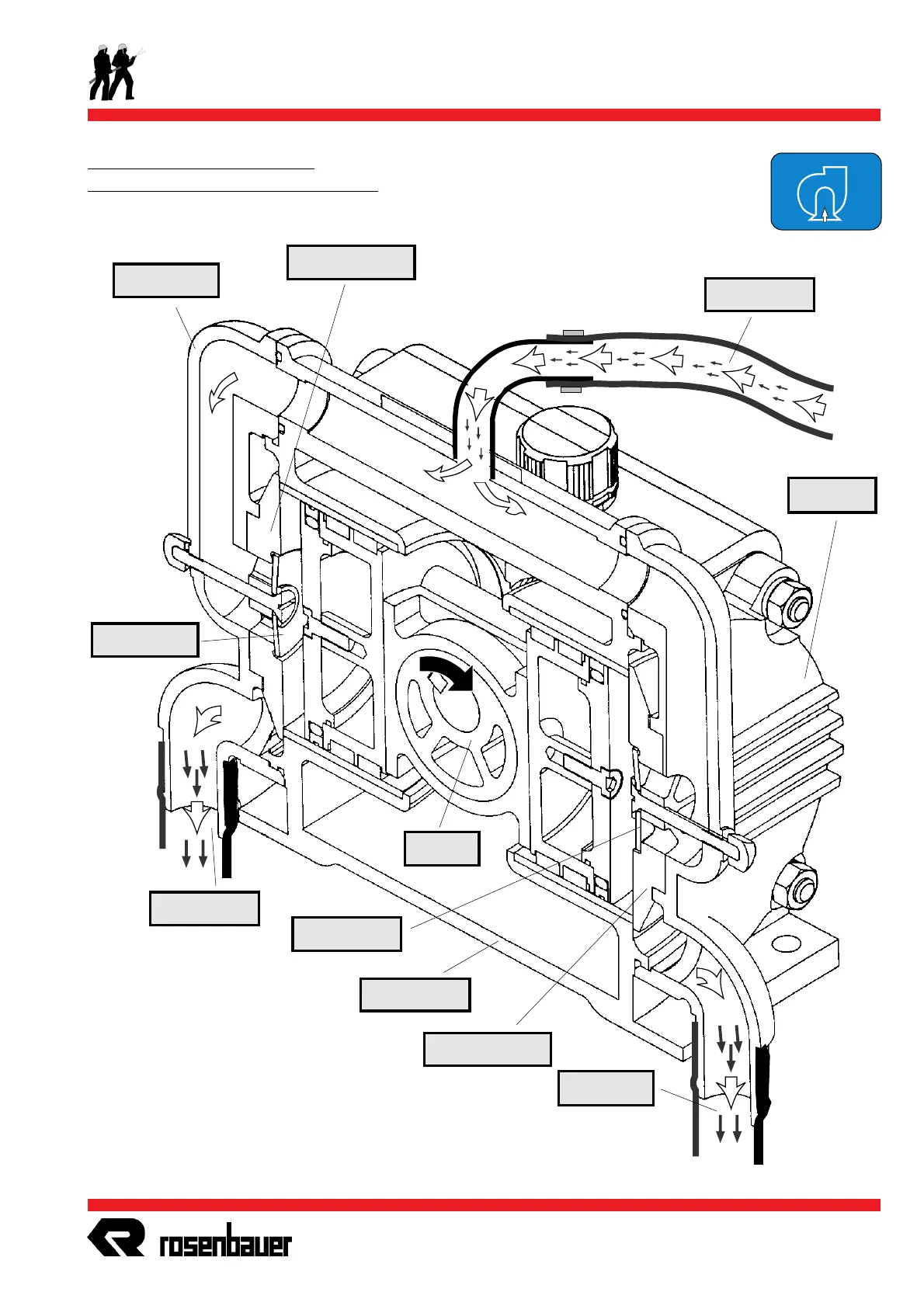

Aufbau der Entlüftungspumpe
Cut-away view of piston priming pump
16
18
Table of Contents
..................................................................................
4
Table of Contents
4
Einleitung
5
Hersteller und Kundendienstadresse
6
Zeichenerklärung
7
Technische Daten
9
Technische Beschreibung
13
Vorbereitungen bei Inbetriebnahme
20
Starten des Motors
21
Ansaugen von Offener Wasserstelle
23
Hydrantenbetrieb
25
Lenzbetrieb
28
Abstellen
29
Transport des Aggregates
31
Spülen nach Betrieb mit Meer- oder Schmutzwasser
33
Prüf- und Kontrollarbeiten
34
Service- und Reparaturarbeiten
36
Wartungsplan
45
Störungen und Deren Beseitigung
47
Table of Contents
5
Introduction
5
Manufacturer and After-Sales-Service Address
6
List of Conventional Signs
7
Technical Data
9
Technical Description
13
Perparation for Use
20
Starting the Engine
21
Drafting Operation from Open Water Source
23
Hydrant Operation
25
Bilge Operation
28
Disengage the Portable Pump
29
Transport of the Unit
31
Flushing after Operation with Seawater or Mucky Water
33
Checking Procedures
34
Service Procedures
36
Maintenance Chart
46
Problems and Their Solutions
48
