• Detach the 4 pin connector to
have a 20 pin main connector
6
• Plug the 20 pin connector onto
the motherboard.
• Attach the 4 pin connector to have
a 24 pin main connector
• Plug the 24 pin connector onto the
motherboard.

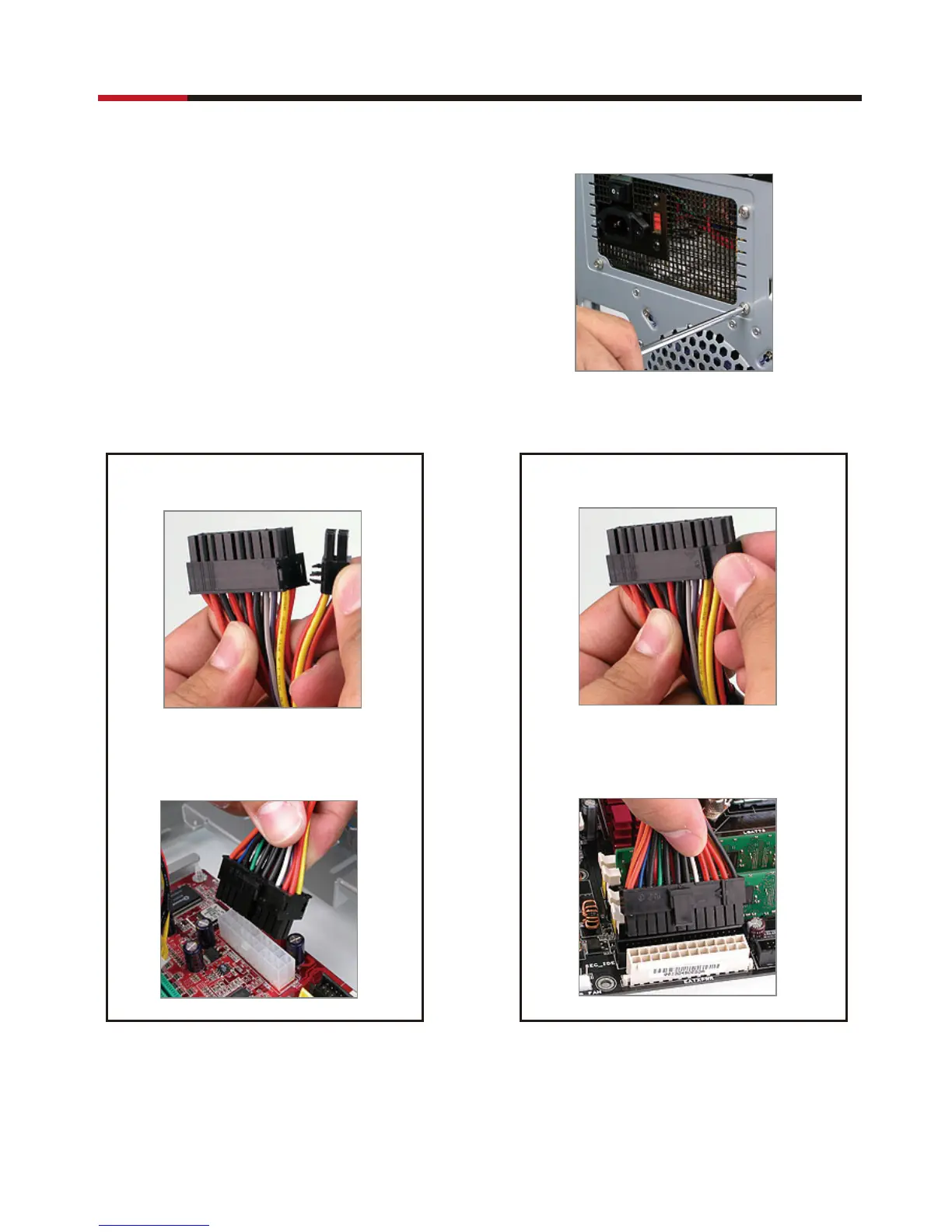

Installation
1.Installing Power supply
Affix the power supply to the case with screws.
NOTE :
1.Confirm 20 pin or 24 pin main connector your motherboard needs before the
installation.
2. 4 pin here is used for switching between 20 & 24 pin only.
2. 20+4 pin Main Connector
20pin 24pin
POWER SUPPLY
Turbo series
User Manual
