Rosewill Power Supply - 4+4 Pin Connector Installation

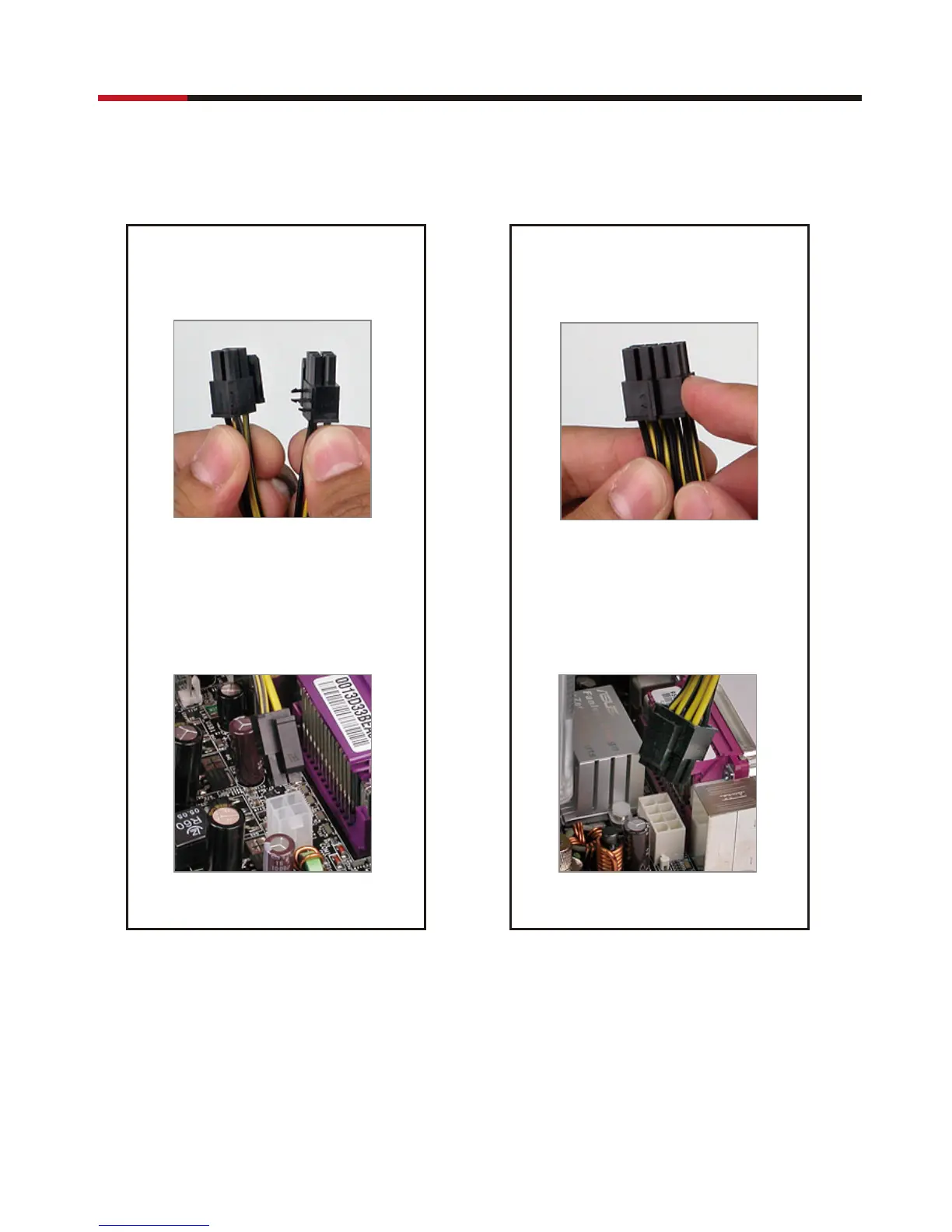

• Separate the 8 pin EPS +12V
connector to have two 4 pin
connector
7
• Pick anyone 4 pin +12V
connector to plug onto the
motherboard
• Combine two 4 pin connectors
to have a 8 Pin EPS +12V
connector
NOTE :
1.Confirm 4 pin +12V or 8 pin EPS +12V connector your motherboard needs before
the installation.
2.4 pin here CAN NOT be used for the main connector.
3. 4+4 pin Connector
• Plug the 8 pin EPS +12V
connector onto the
motherboard.
4 pin 8 pin
