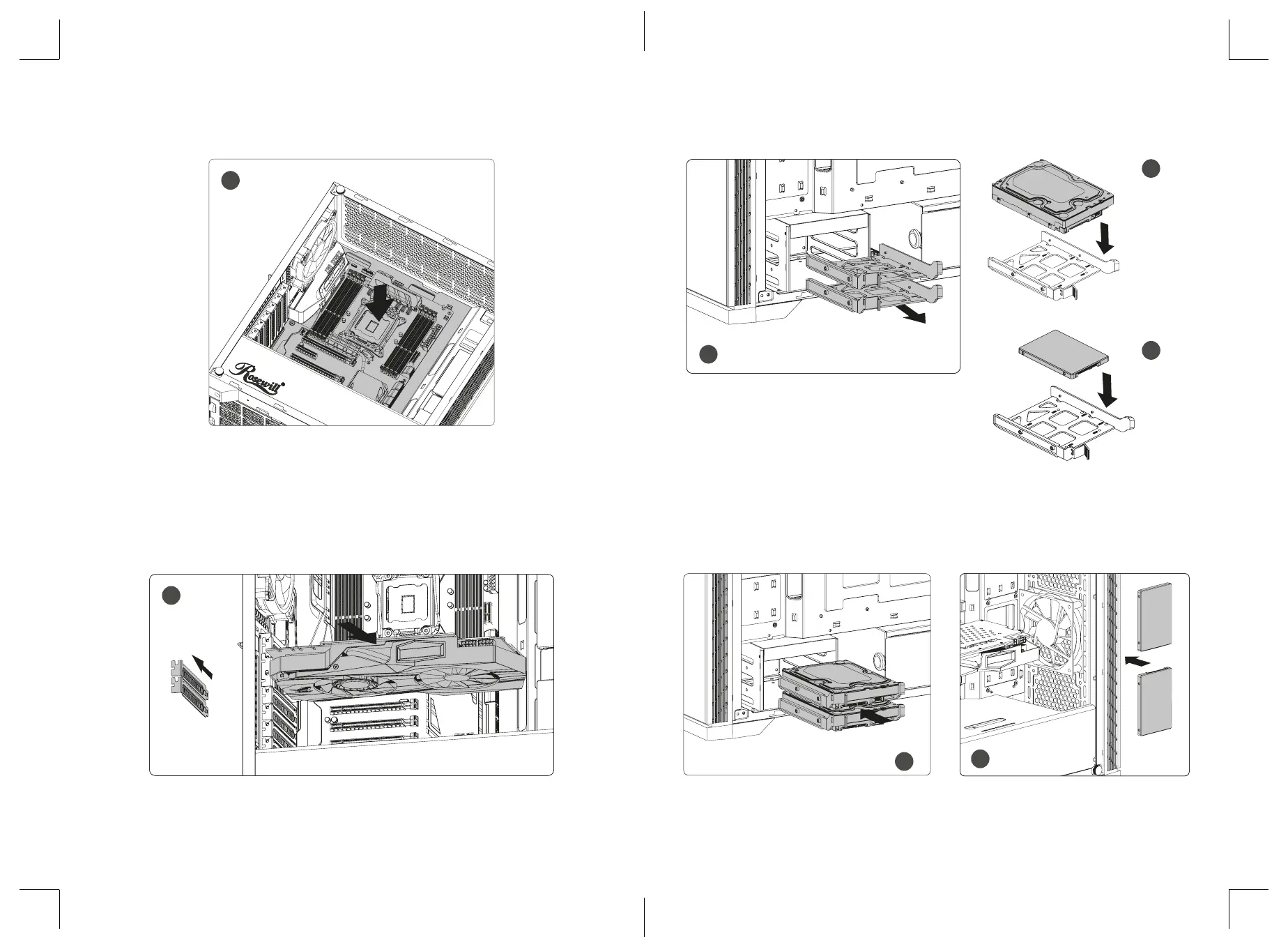

3. Install Motherboard
3-1. Secure the motherboard onto the pre-installed standoffs with Screw-B (Figure 3).
4. Install Add-on Card
4-1. Bend to remove the slot covers, then install the add-on card and secure with Screw-A
Figure 4).
3
4
5. Install 3.5”/2.5” HDD/SDD
5-1. Slide the trays out from drive cage (Figure 5a).
5-2. Install SSD/HDD onto the trays and secure with Screw-B or C (Figure 5b/5c).
5b
5-3. Insert the trays back into drive cage (Figure 5d).
5-4. Alternatively, you can also install 2.5” SSD directly onto the front of chassis, securing
with Screw-B (Figure 5e).
5e
5d
5a
5c
