Page 14
RXT150P
Ref Description Ref Description
3 Wire feed assy. 24 Wire feed control PCB
5 Wire spool holder 33 Weld current switch
10-11 Gas bottle holders 12 Mains Cable
14 Handle 28 Earth lead
16 Rectifier assy. 29 Torch assy.
18 Fan Blade 32 Mains switch
18 Fan Motor 4 Aux Transformer
22 Main transformer
23 Thermal sensor

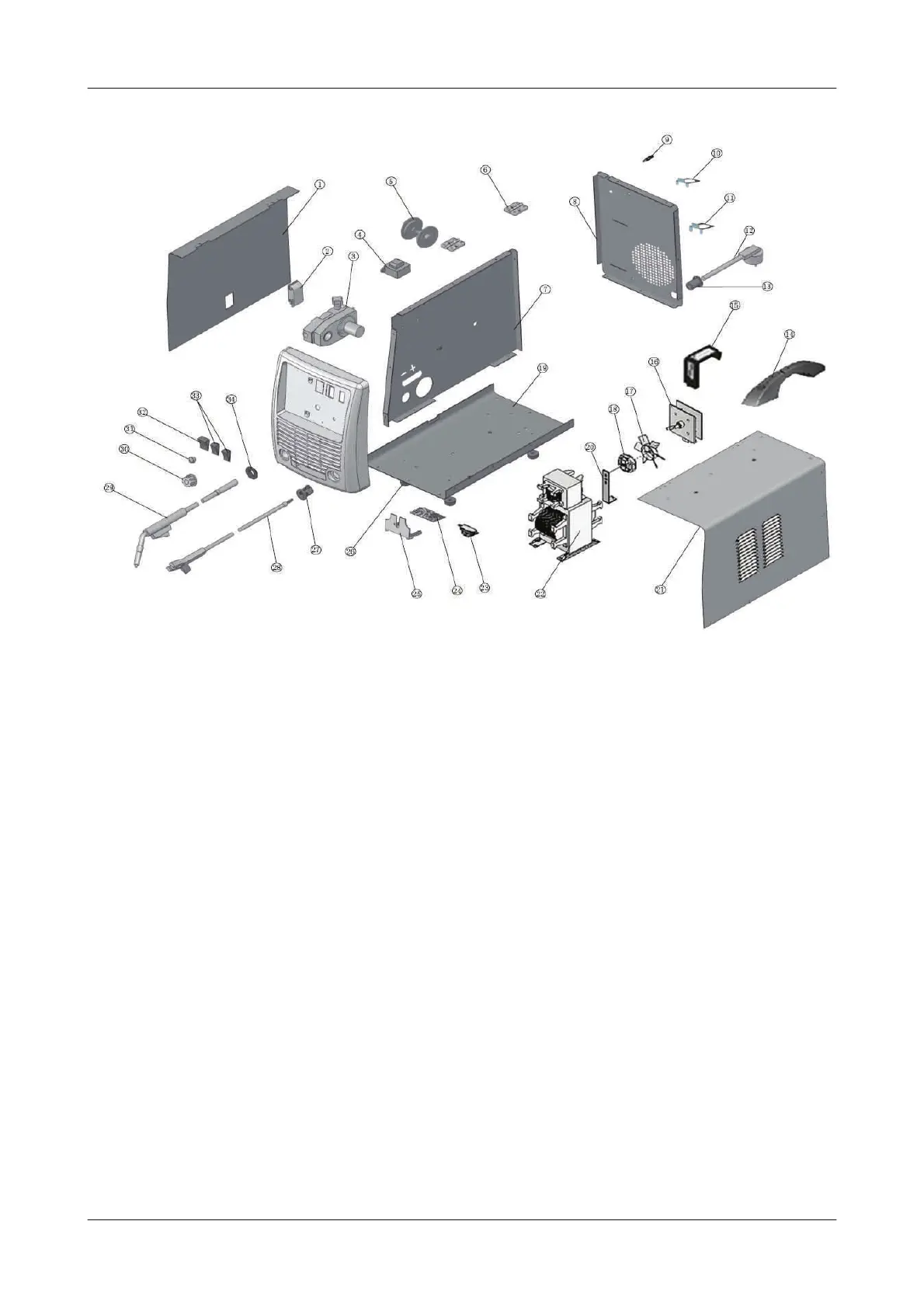

PARTS IDENTIFICATION
