RXT150P

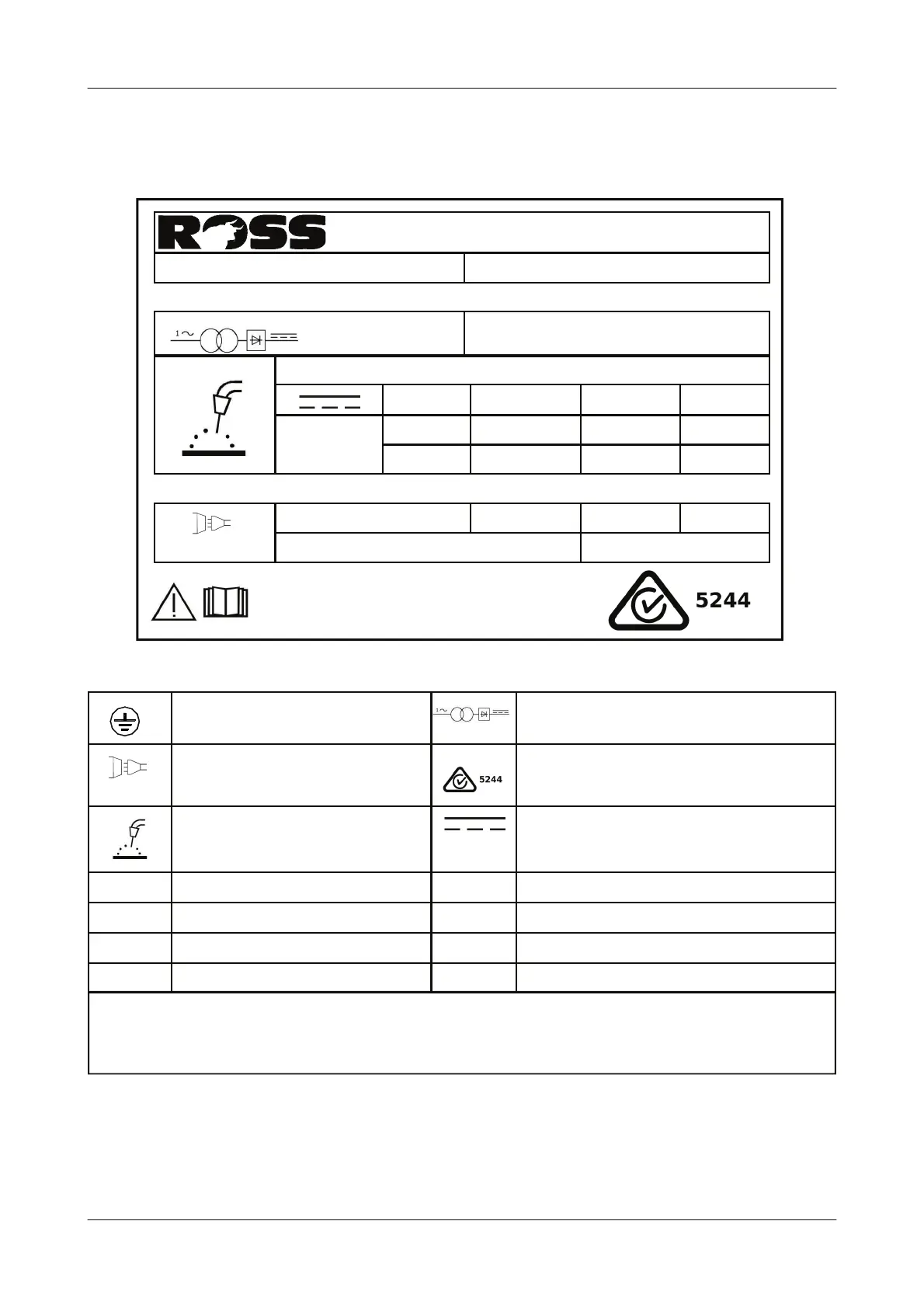

THE RATING PLATE
The rating plate is fitted to the front of the welder and displays the
following symbols and information.
30A/15.5V to 115A/19.8V
X 10% 50% 100%
I
2 115A 50A 35A
U
2 19.8V 16.5V 15.7V
1 ~ 50Hz
U1 = 230V I1 Max = 21A I1 eff = 7A
IP21S
Uo = 33V
RXT150P
AS60974-6
Sn.
Caution! Read operator’s manual
Ground Single phase transformer - Rectified
1 ~50Hz
Mains supply single phase A.C.
50 Hz
RCM Marking indicating compliance to
relevant Australian standards.
Mig Welding Outputs direct current. D.C.
x
Duty Cycle
U
2 Rated Welding Voltage
I
1
Rated Input Current
U
0 Rated no load voltage
I
2
Rated Welding Current
IP21S Protection Class
U
1 Rated Input voltage % Percentage of full rated load
...A/...V~...A/...V: Output Range. Minimum and maximum rated welding current and
related load voltage.
