Introduction
AC-Q4x Series Installation and Programming Manual 11
1.4 Front Panel Description
Controls and indicators of all controller versions are identical
(excluding the antenna, which is unique to Q42 and Q44) (Figure 1).

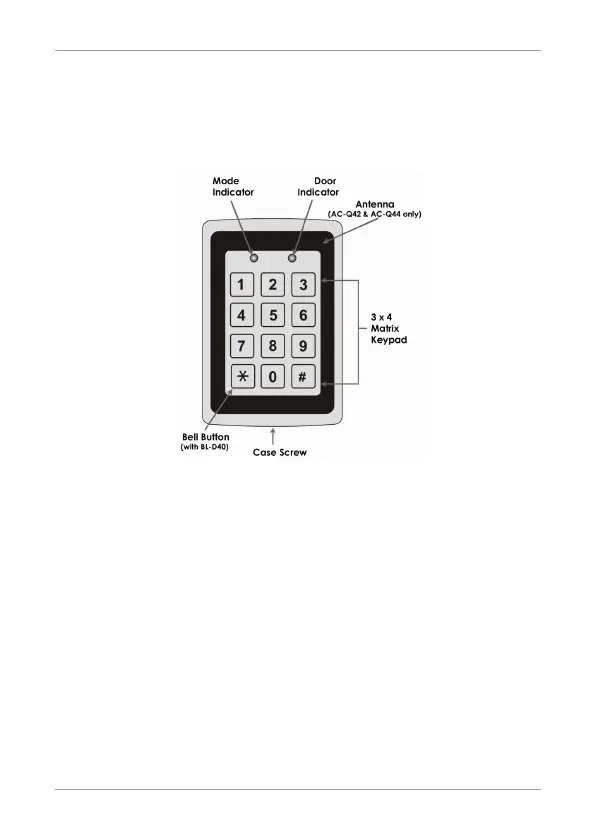

Figure 1: Front Panel
