Installation
AC-Q4x Series Installation and Programming Manual 17

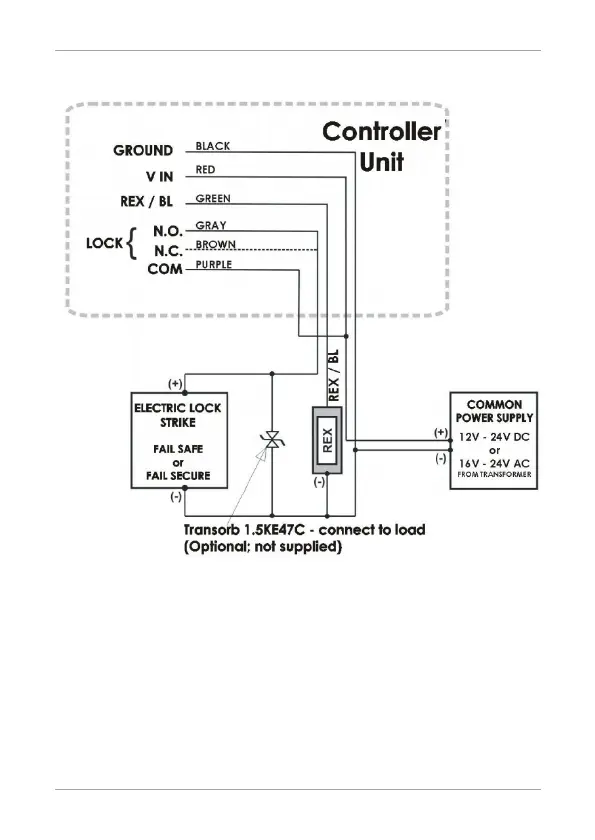

Figure 3: Pre-Wired Connection for Lock Strike Relay & REX
