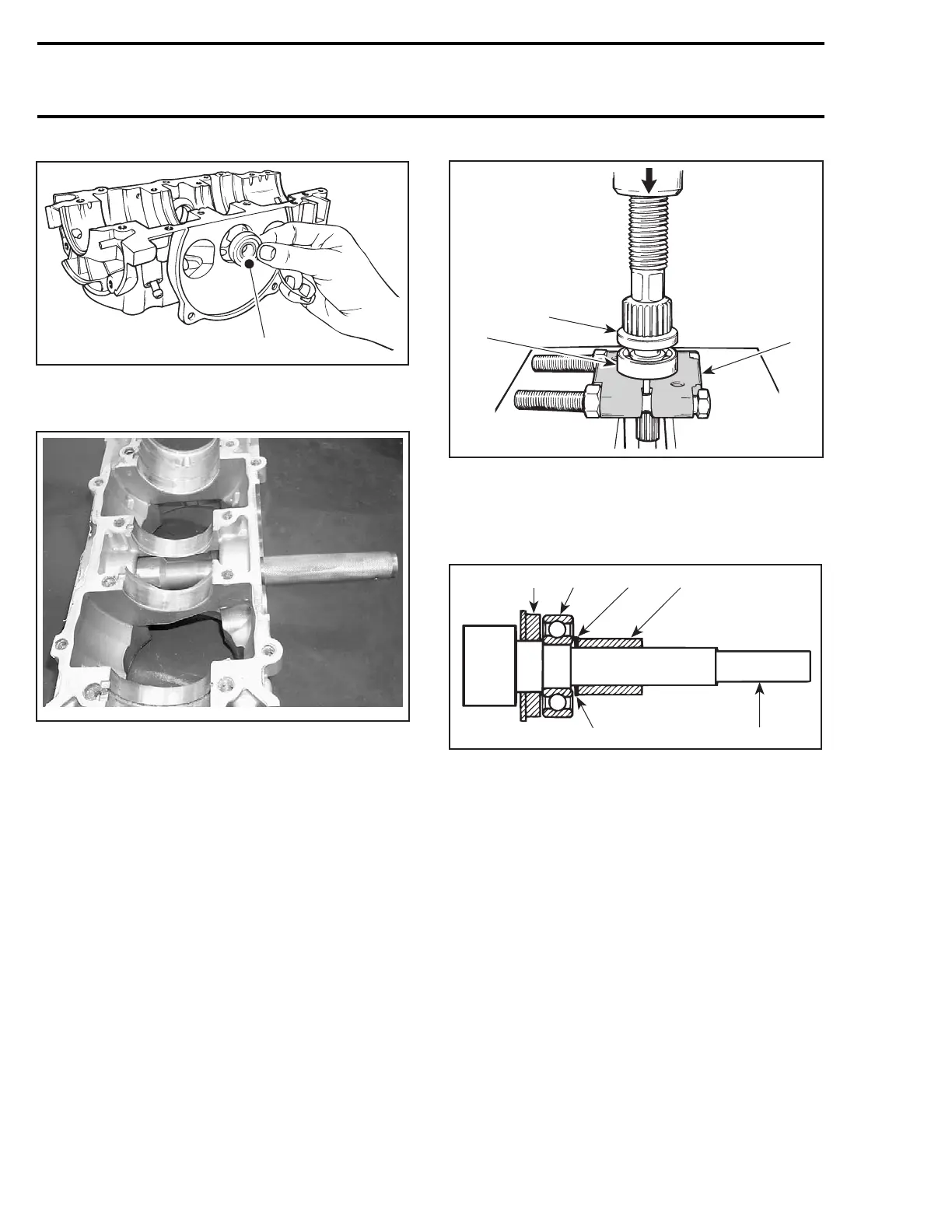

Section 03 787 RFI ENGINE
Subsection 05 (ROTARY VALVE)
F01D2DA
1
1. Shield side (toward gear)
Push bearing until it stops on its seat.
F01D99A
Seal
Apply Molykote 111 grease (P/N 413 707 000) on
seal lips. Position seal no. 11 with shielded por-
tion against shaft splines.
Shaft Bearing
Install ball bearing using bearing extractor as illus-
trated.
2
1
3
A13C0FB
1. Seal
2. Ball bearing
3. Bearing extractor Snap-on CJ-950
Install washer no. 15,snapringno. 7 and slide
distance sleeve no. 14 on shaft.
12 3 4
6
5
F01D2FA
1. Seal
2. Ball bearing
3. Snap ring
4. Distance sleeve
5. Washer 0.5 mm (.020 in)
6. Rotary valve shaft
Rotary Valve Shaft Assembly
CAUTION: Crankcase halves must be separat-
ed and crankshaft must not be present to install
rotary valve shaft assembly in crankcase.
To install rotary valve shaft in crankcase, use a
pusher (P/N 290 876 609) and handle (P/N 420 877
650).
106 smr2005-084
