Section 03 787 RFI ENGINE
Subsection 05 (ROTARY VALVE)
290876609
420 877 650

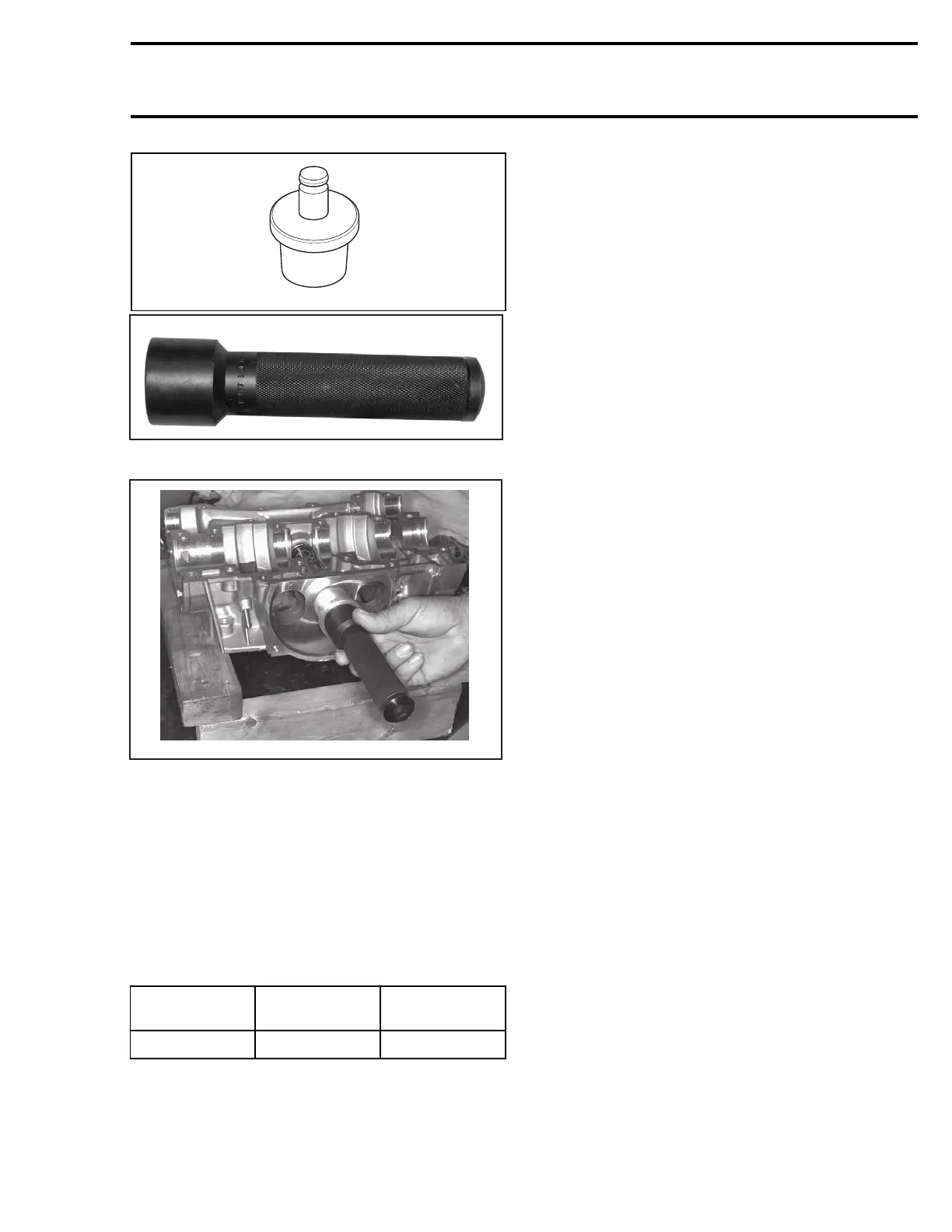

Push shaft until it stops on bearing seat.
F01D8OA
Snap Ring
Position snap ring no. 4 so that its sharp edge
faces outwards.
Rotary Valve
The rotary valve no. 13 controls the opening and
closing of the inlet ports. Therefore its efficiency
will depend on the precision of its installation.
IDENTIFICATION OF THE ROTARY VALVE
ENGINE
ROTARY
VALVE P/N
DURATION
787 RFI 420 924 502 159°
smr2005-084 107
