Section 03 787 RFI ENGINE
Subsection 04 (BOTTOM END)
F01B2MA
12 3 5
7
6
4

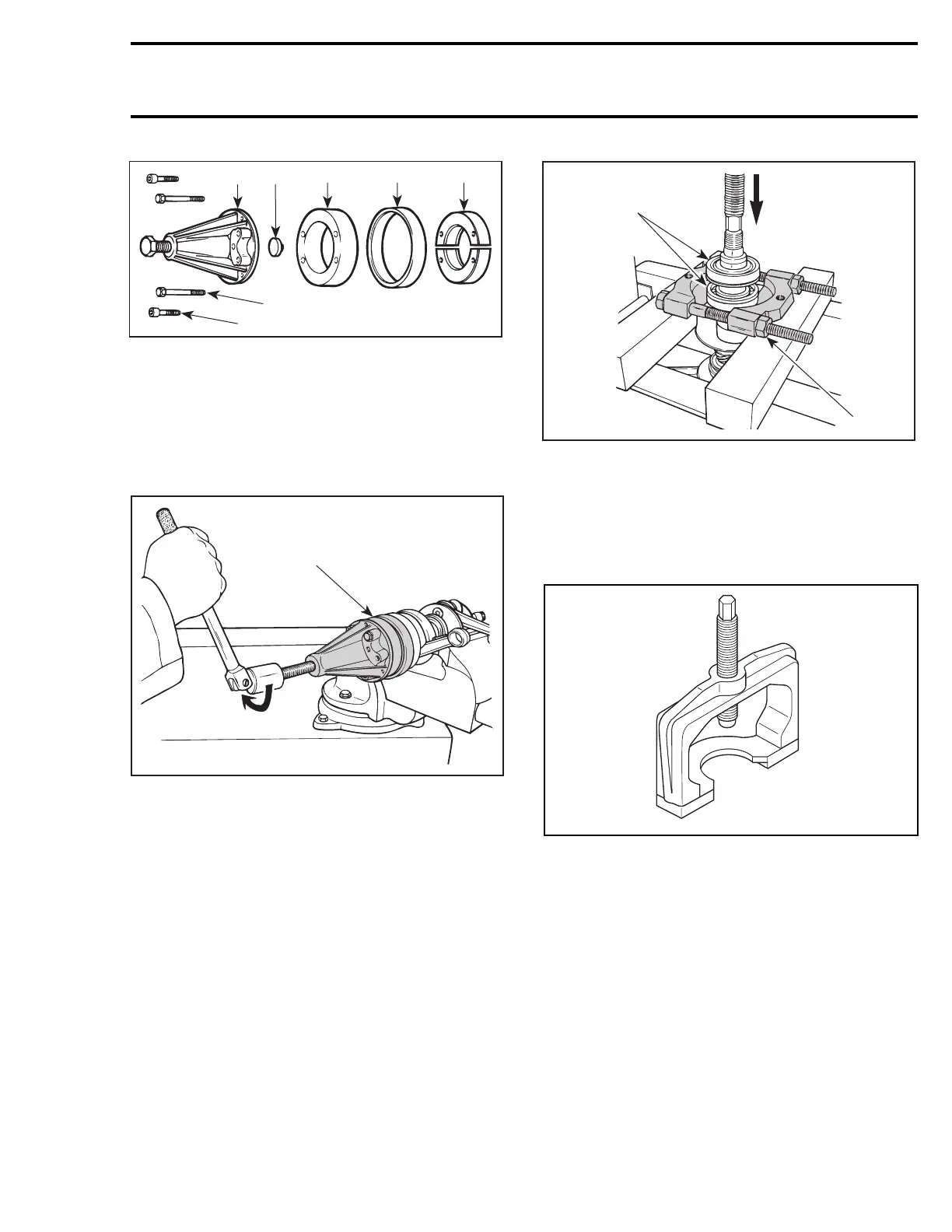

1. Puller (P/N 420 877 635)
2. Protective cap (P/N 420 876 557)
3. Distance ring (P/N 420 876 569)
4. Ring (P/N 420 977 490)
5. Ring halves (P/N 420 977 475)
6. Screw M8 x 40 (P/N 420 840 681)
7. Screw M8 x 70 (P/N 420 841 201)
NOTE: To facilitate ring or distance ring installa-
tion, lubricate their inside diameters.
F01D1OA
1
TYPICAL
1. Removing crankshaft bearing
PTO End Crankshaft Bearing
As an alternate method, the outer PTO bearing
and crankshaft gear can be removed in one step
using another puller. See CRANKSHAFT GEAR
no. 18 below
MAG End Crankshaft Bearing
As an alternate method, use a bearing extractor
such as Proto no. 4332 and a press to remove
two bearings at a time.
F01D1PA
1
2
1. Press bearings out
2. Bearing extractor
Crankshaft Gear
The crankshaft gear no. 18 and bearing no. 5 can
be removed in one step using the gear/bearing
puller (P/N 290 877 665).
290877665
Install the puller as per following illustration.
smr2005-083 91
