Section 03 787 RFI ENGINE
Subsection 04 (BOTTOM END)
F00D0IA
2
1

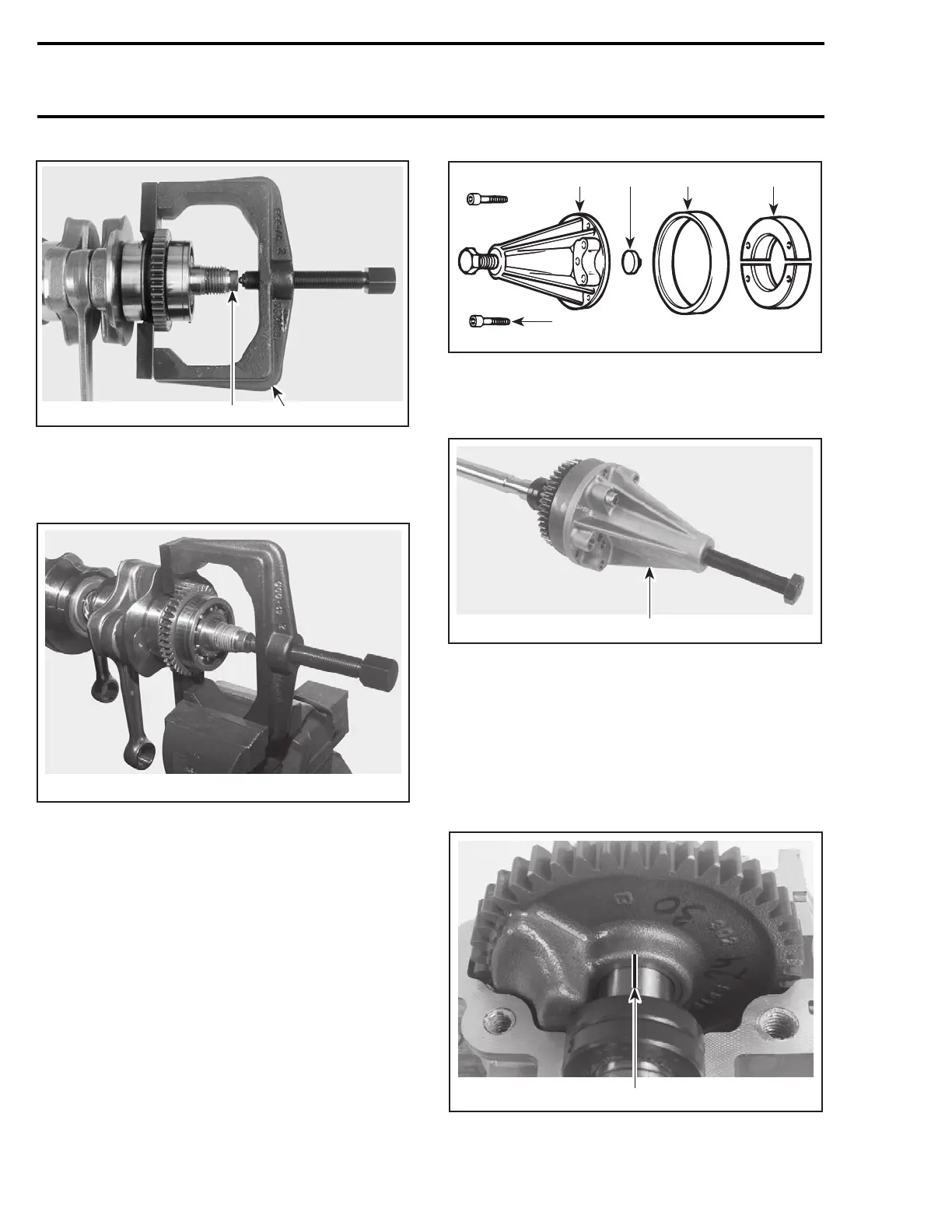

1. Puller
2. Protective cap
Secure puller in a vise and remove gear and bear-
ing.
F00D0JA
NOTE: If the inner PTO bearing needs to be re-
placed, remove the Woodruff key on the crank-
shaft.
Counterbalance Shaft Bearings
Bearings no. 15 on counterbalance shaft no. 13
can be removed by using the following tools:
F00B0CA
1 2
34
5
1. Puller (P/N 420 877 635)
2. Protective cap (P/N 420 876 557)
3. Ring (P/N 420 977 480)
4. Ring halves (P/N 420 876 330)
5. Screw M8 x 40 (P/N 420 840 681)
F00D0KA
1
1. Tool installed
Counterbalance Shaft Gear
To remove gear no. 14, first trace an index mark
on the gear and counterbalance shaft.
NOTE: There is no Woodruff key to position the
gear on the counterbalance shaft. An index mark
must be traced to ease assembly procedure.
F00D0SA
1
1. Index mark
92 smr2005-083
