Rotel RB-970BX - SPECIFICATIONS

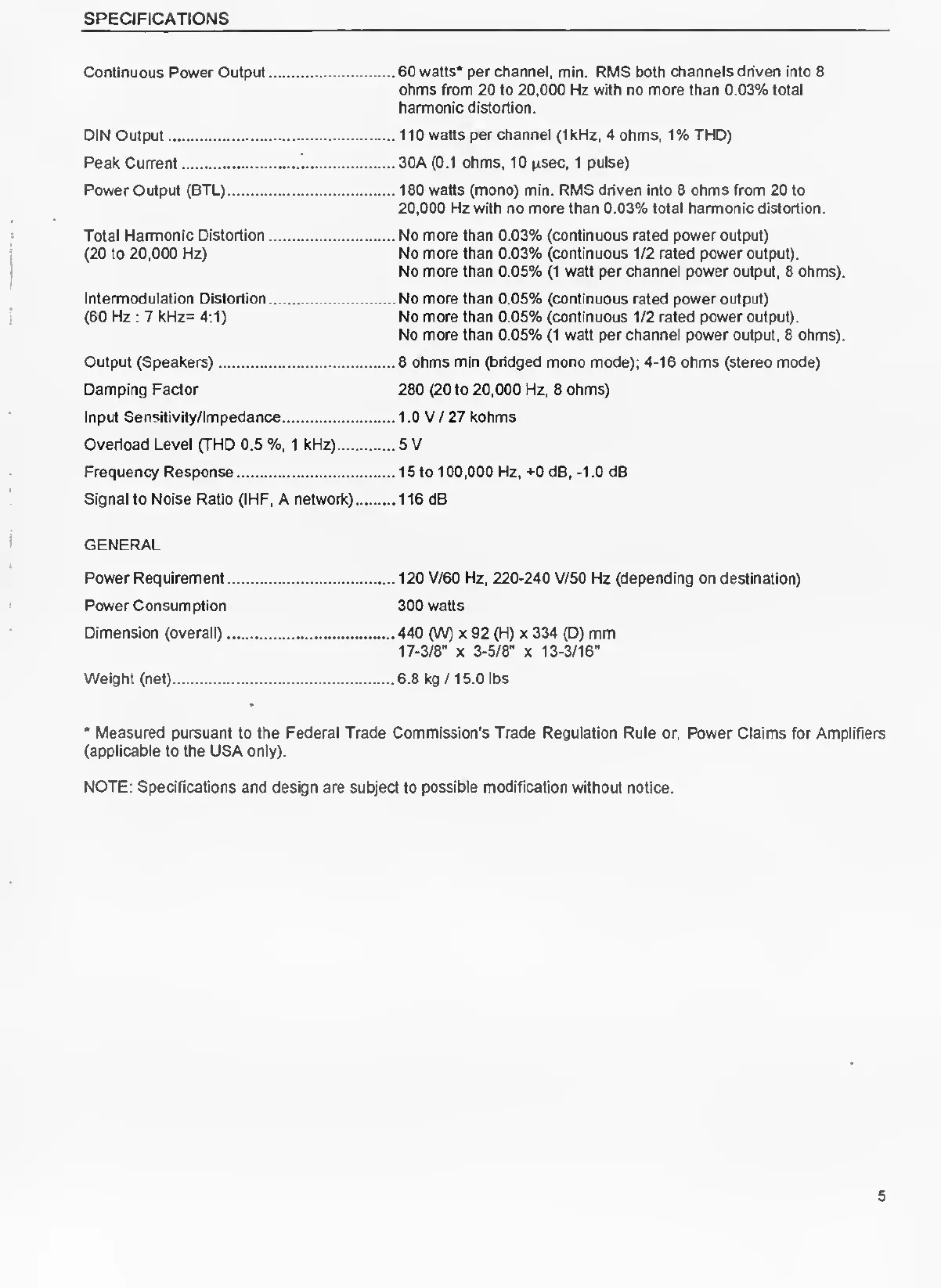

SPECIFICATIONS
Continuous Power Output.60 watts* per channel, min. RMS both channels driven into 8
ohms from 20 to 20,000 Hz with no more than 0.03% total
harmonic distortion.
DIN Output.110 watts per channel (1 kHz, 4 ohms, 1 % THD)
Peak Current.*.30A (0.1 ohms, 10 psec, 1 pulse)
Power Output (BTL).180 watts (mono) min. RMS driven into 8 ohms from 20 to
20,000 Hz with no more than 0.03% total harmonic distortion.
Total Harmonic Distortion.No more than 0.03% (continuous rated power output)
(20 to 20,000 Hz) No more than 0.03% (continuous 1/2 rated power output).
No more than 0.05% (1 watt per channel power output, 8 ohms).
Intermodulation Distortion.No more than 0.05% (continuous rated power output)
(60 Hz : 7 kHz= 4:1) No more than 0.05% (continuous 1/2 rated power output).
No more than 0.05% (1 watt per channel power output, 8 ohms).
Output (Speakers).8 ohms min (bridged mono mode); 4-16 ohms (stereo mode)
Damping Factor 280 (20 to 20,000 Hz, 8 ohms)
Input Sensitivity/Impedance.1.0 V / 27 kohms
Overload Level (THD 0.5 %, 1 kHz).5 V
Frequency Response.15 to 100,000 Hz, +0 dB, -1.0 dB
Signal to Noise Ratio (IHF, A network).116 dB
GENERAL
Power Requirement.120 V/60 Hz, 220-240 V/50 Hz (depending on destination)
Power Consumption 300 watts
Dimension (overall).440 (W) x 92 (H) x 334 (D) mm
17-3/8" x 3-5/8" x 13-3/16"
Weight (net).6.8 kg/15.0 lbs
* Measured pursuant to the Federal Trade Commission's Trade Regulation Rule or, Power Claims for Amplifiers
(applicable to the USA only).
NOTE: Specifications and design are subject to possible modification without notice.
5
