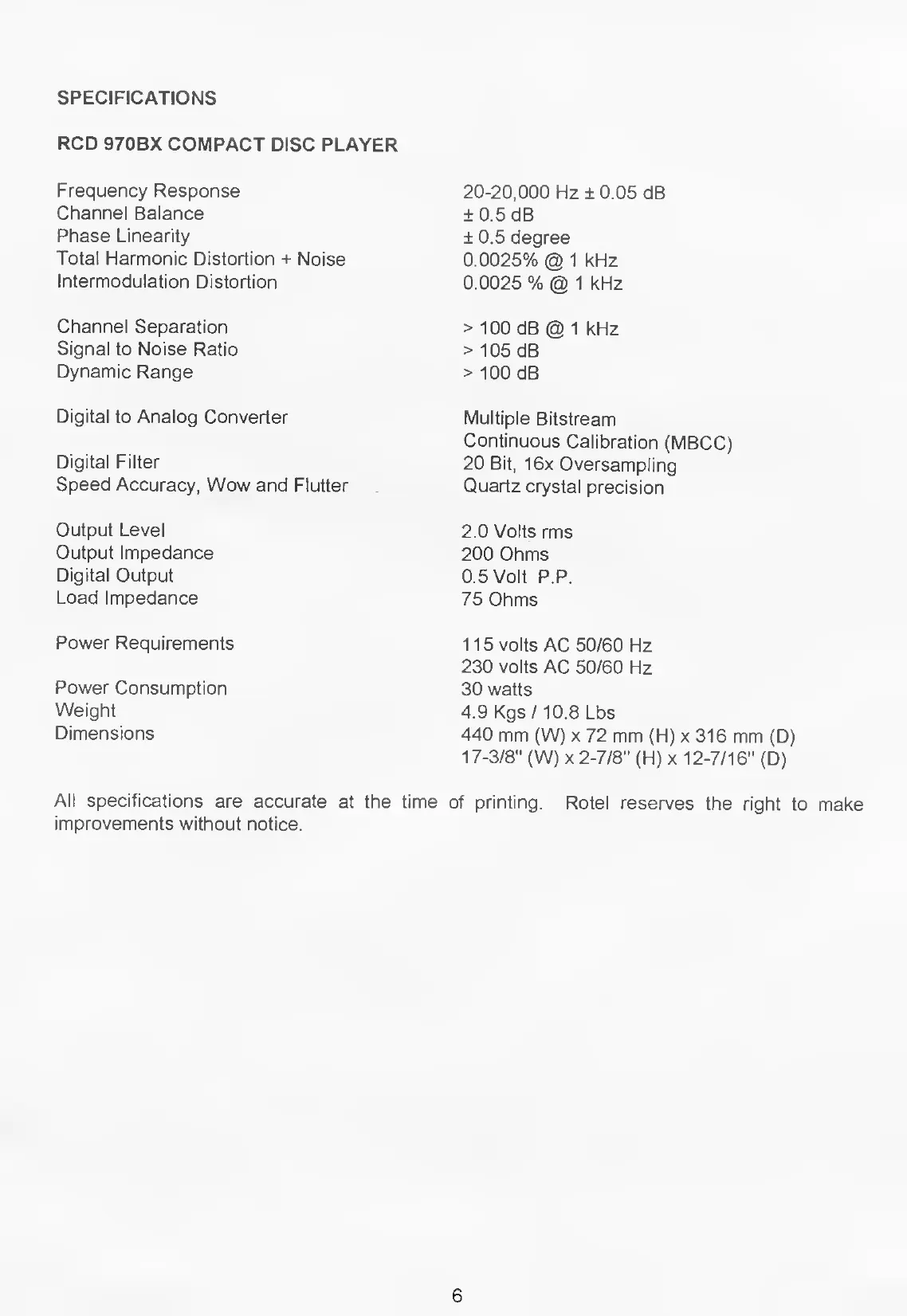

SPECIFICATIONS
RCD 970BX COMPACT DISC PLAYER
Frequency Response
Channel Balance
Phase Linearity
Total Harmonic Distortion + Noise
Intermodulation Distortion
Channel Separation
Signal to Noise Ratio
Dynamic Range
Digital to Analog Converter
Digital Filter
Speed Accuracy, Wow and Flutter
Output Level
Output Impedance
Digital Output
Load Impedance
Power Requirements
Power Consumption
Weight
Dimensions
20-20,000 Hz ± 0.05 dB
± 0.5 dB
± 0.5 degree
0.0025% @ 1 kHz
0.0025 % @ 1 kHz
> 100 dB @ 1 kHz
> 105 dB
> 100 dB
Multiple Bitstream
Continuous Calibration (MBCC)
20 Bit, 16x Oversampling
Quartz crystal precision
2.0 Volts rms
200 Ohms
0.5 Volt P.P.
75 Ohms
115 volts AC 50/60 Hz
230 volts AC 50/60 Hz
30 watts
4.9 Kgs/10.8 Lbs
440 mm (W) x 72 mm (H) x 316 mm (D)
17-3/8" (W) x 2-7/8" (H) x 12-7/16" (D)
Rotel reserves the right to
All specifications are accurate at the time of printing,
improvements without notice.
make
6
