4 x Set-up and installation
FA ROTEX HPSU compact (V5) • 
19
4.1.2 ROTEX HPSU compact 508/516
1 Solar - feed
2 Cold water
3 Hot water
4 Heating feed
5 Heating return flow
6 Connection coolant gas line
7 Connection coolant fluid line
8 Solar - feed (only type …Biv)
9 Solar - return flow (only type …Biv)
A Front
BBack

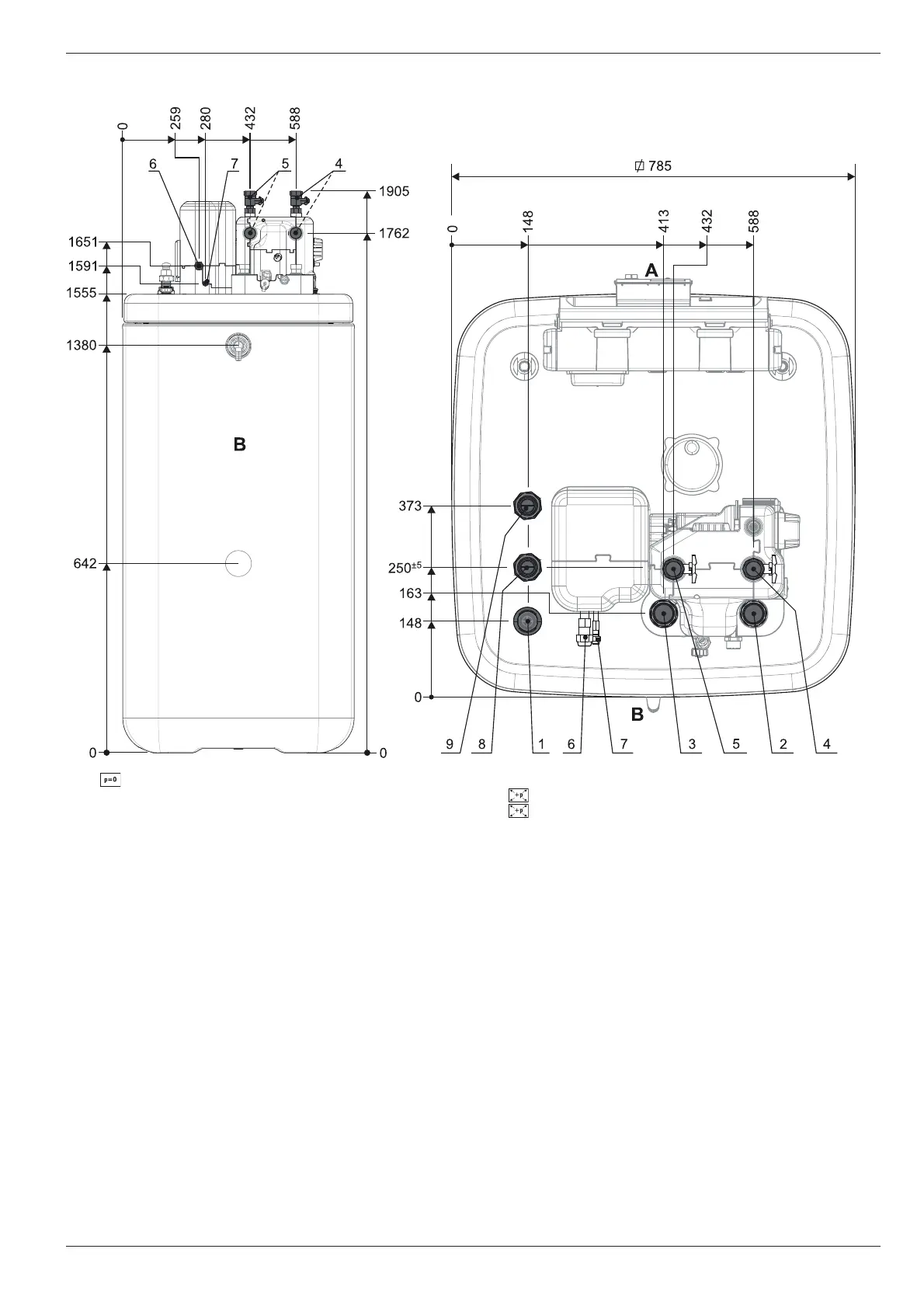

Fig. 4-2 Connections and dimensions ROTEX HPSU compact 508/516 (in general)
