10 x Technical data
FA ROTEX HPSU compact (V5) • 
81

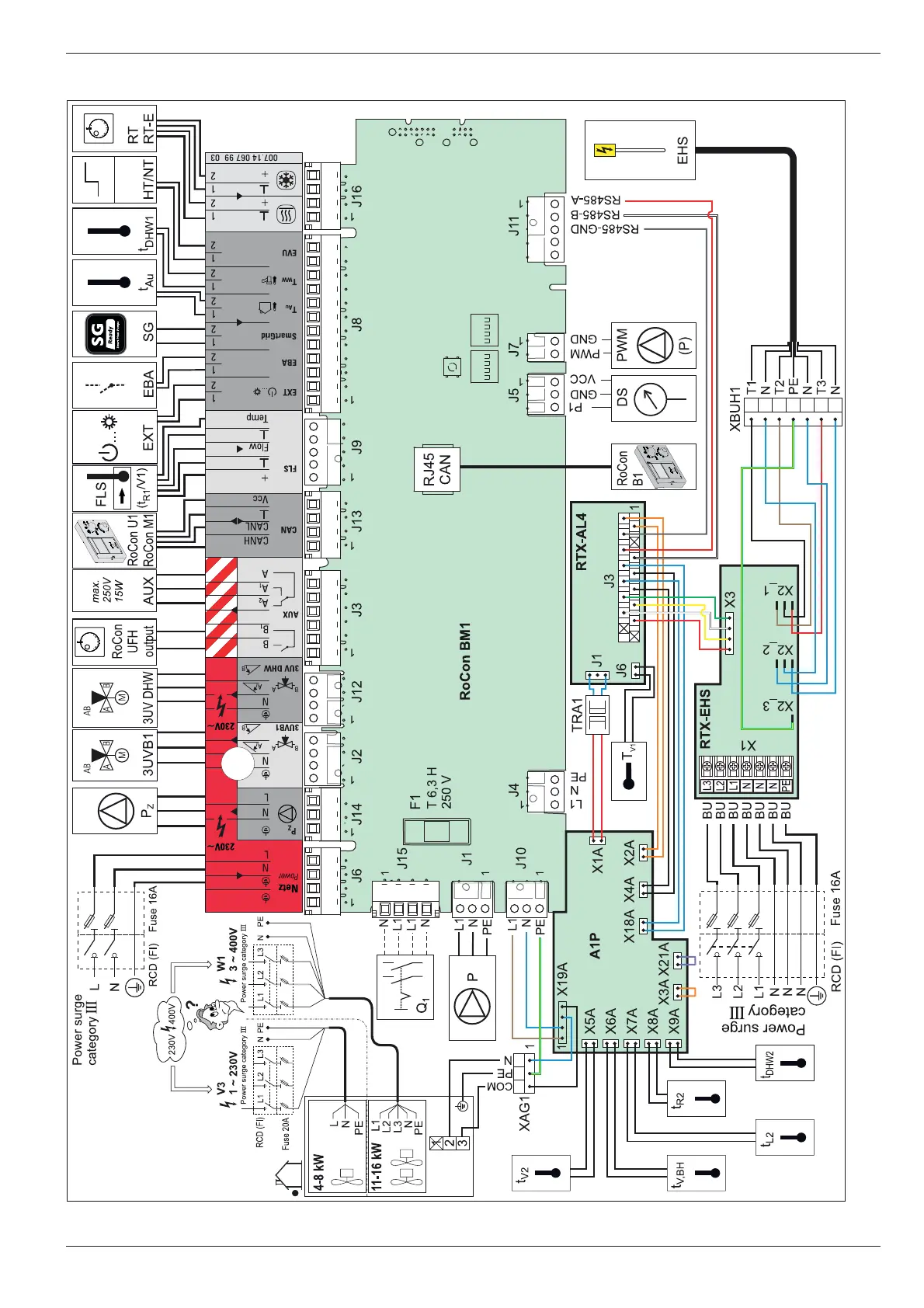

10.4 Circuit diagram ROTEX HPSU compact
Fig. 10-8 Circuit diagram ROTEX HPSU compact - For legend see tab. 4-3
