Rotex Solaris RPS3 25M User Manual

3 x Installation
21
FA ROTEX Solaris RPS3 25M - 03/2010
6. Wiring on the terminal block of the Control unit RPS3 25M:
– Connect circulation pump and optional booster pump.
– Connect the power supply for the control unit.
Permissible cable types on the terminal block:
–Single-wire  2.5 mm
2
–Multiwire  2.5 mm
2
– Multiwire with cable end sleeve with insulation collar  1.5 mm
2
– Multiwire with cable end sleeve without insulation collar  2.5 mm
2

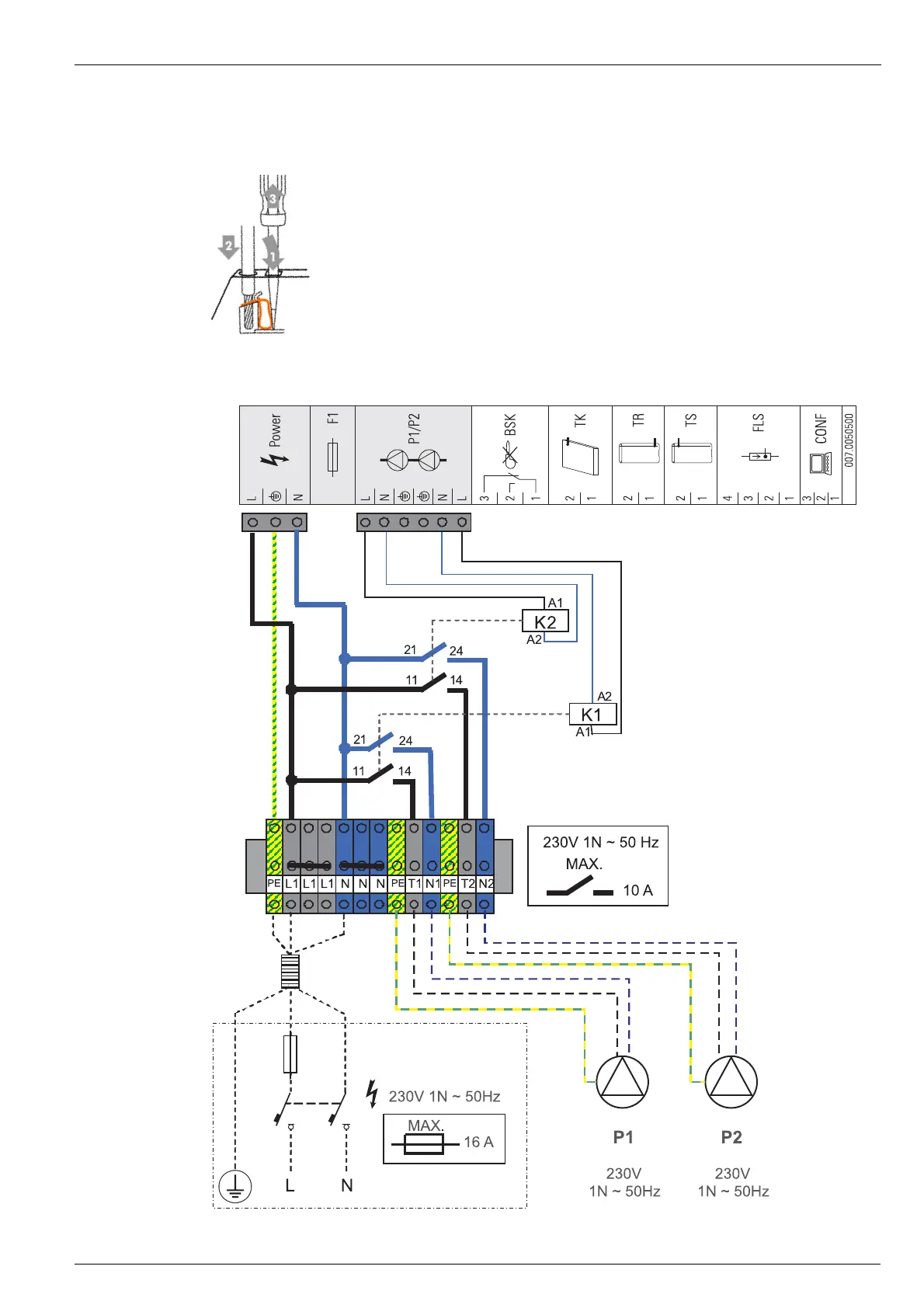

Illustration 3-29 Connecting the wiring to the terminal block
Illustration 3-30 Terminal assignment on the terminal block of the control unit RPS3 25M (for key, see chapter 8.4, Image 8-9)
