Rotex Solaris RPS3 25M User Manual

2 x Product description
7
FA ROTEX Solaris RPS3 25M - 03/2010
2 Product description

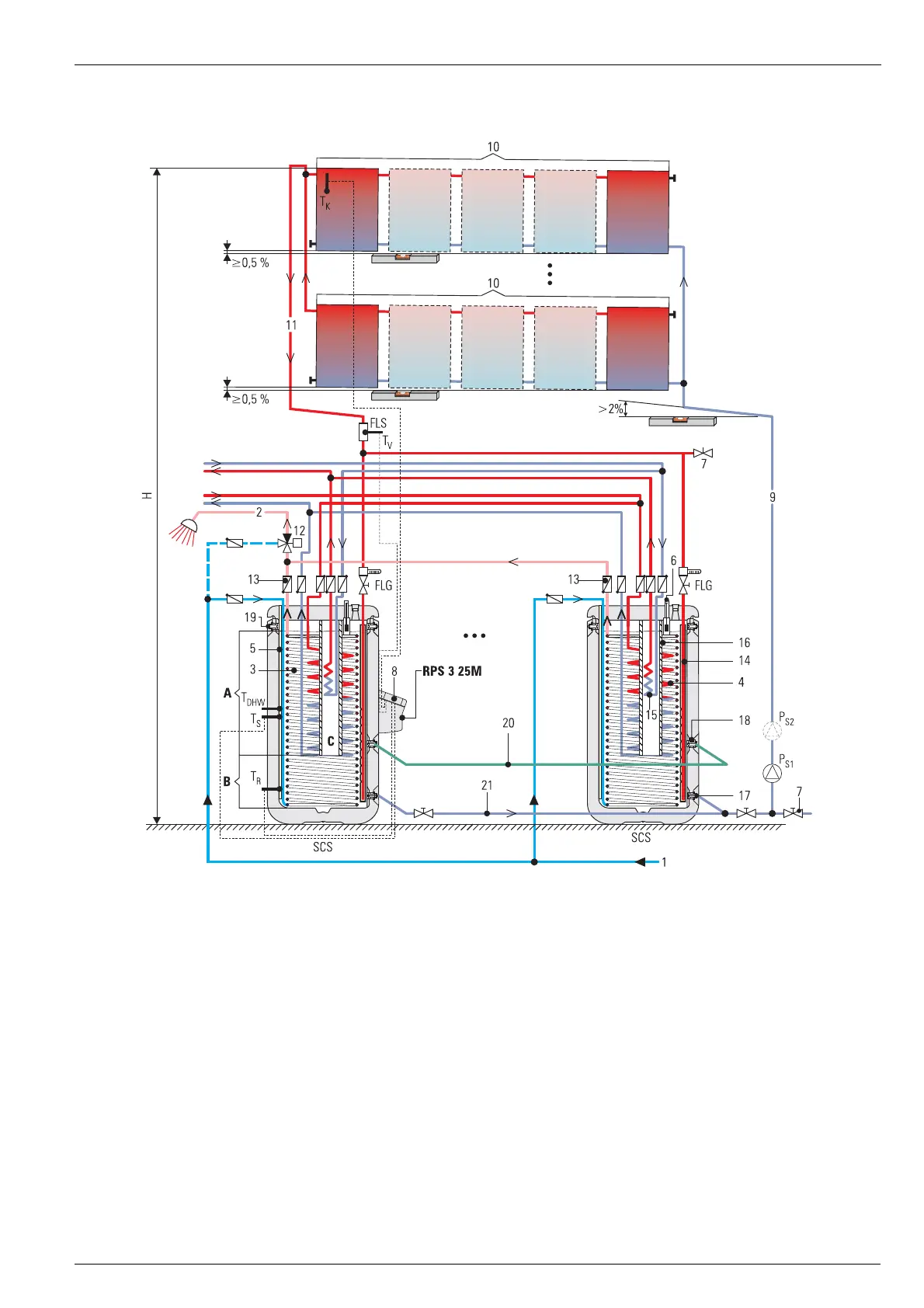

2.1 Design and components of Solaris large-scale systems
1 Cold water connection pipe
2 Drinking water (hot) distributor
3 Stainless steel corrugated heat exchanger for
domestic water (hot)
4 Corrugated stainless steel heat exchanger for
heat generator (storage tanks charging)
5 Pocket for storage tanks and return temperature
sensors
6 Fill level display
7 Filling and draining cock
8 Solaris R3 controller
9 Solaris return pipe (bottom of collector)
10 Solaris solar collector field (up to 10 solar
collectors per row)
11 Solaris flow pipe (top of collector)
12 Thermostatic mixer valve (consumer-side scalding
protection)
13 Non-return valve (accessory)
14 Solaris flow layering pipe
15 Corrugated stainless steel heat exchanger for
heating support
16 Thermal insulation of stainless steel heat exchanger
for heating support
17 Solaris return connection (with valve insert)
18 Equalising pipe connection (with valve insert
for storage tank extension)
19 Safety overflow connection
20 Equalising pipe
21 Return flow connection pipe
A Zone with water for domestic use
B Solar zone
C Heating support zone
T
R
Solaris return flow temperature sensor
T
S
Solaris storage tank temperature sensor
T
K
Solaris collector temperature sensor
T
V
Solaris feed temperature sensor
T
DHW
Storage tank temperature sensor for heat
generator control
RPS3 25M
Control unit
FLG FlowGuard
FLS Solaris FlowSensor (flow rate measurement)
PS1 Solar circulation pump (on-site)
PS2 Solar booster pump (on-site, optional)
Illustration 2-1 Standard design of a ROTEX Solaris system (double-sided connection is recommended by ROTEX)
