Rotex Solaris RPS3 25M User Manual

8 x Technical data for
57
FA ROTEX Solaris RPS3 25M - 03/2010

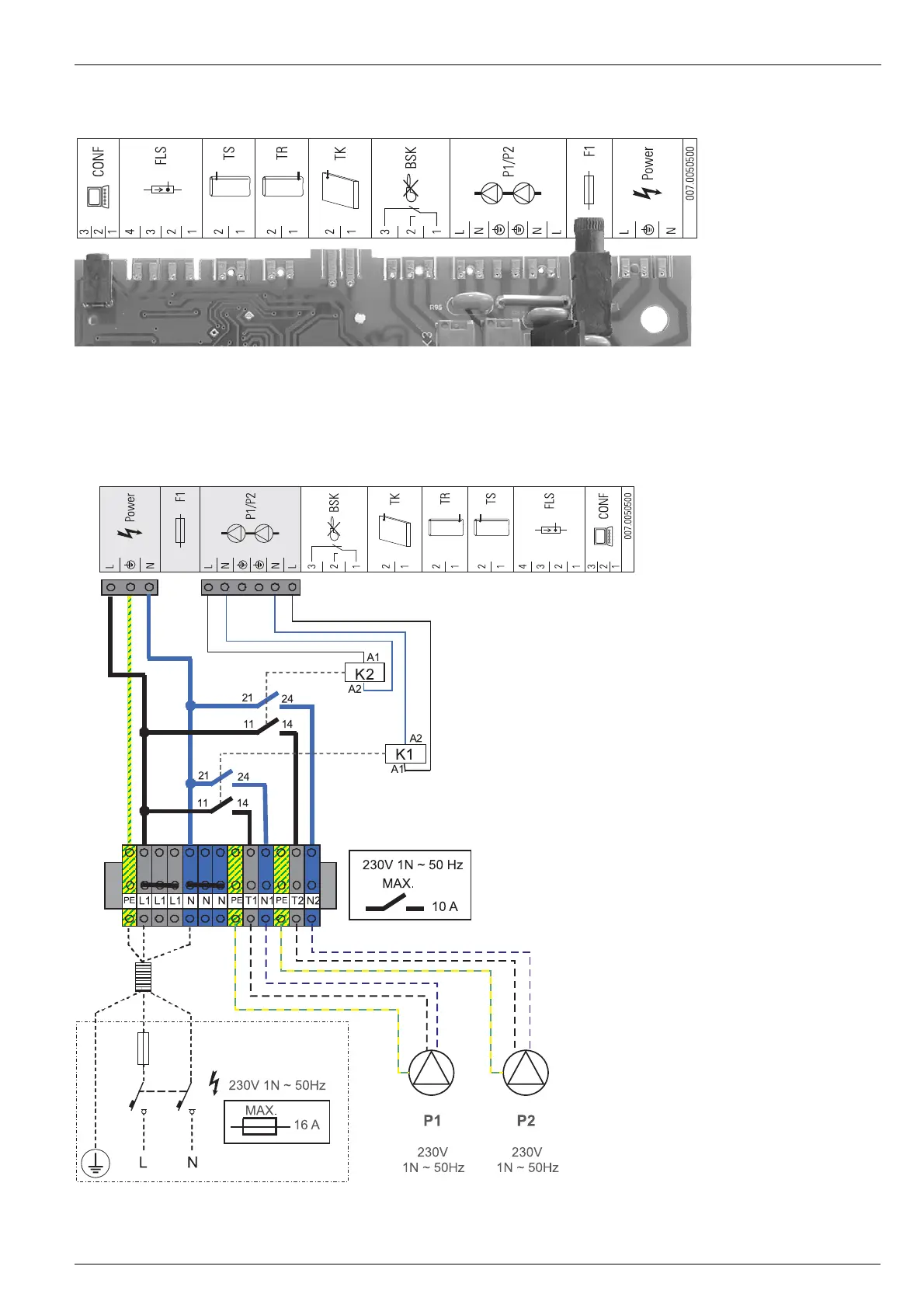

8.4 Terminal assignment
BSK Burner inhibit contact
CONF Programming socket for
software update
FLS FlowSensor
F1 Fuse
TK Collector temperature sensor
TR Return flow temperature sensor
TS Storage tank temperature sensor
P1 Circulation pump
P2 Optional
Booster pump
Power Mains supply
Illustration 8-8 Terminal assignment, controller PCB
BSK Burner inhibit contact
CONF Programming socket for
software update
F1 Fuse
FLS FlowSensor
K1 Switching protection, circulation
pump
K2 Switching protection, booster pump
L1 Phase mains connection
N Neutral conductor mains connection
N1/N2 Neutral conductor circulation pump/
Booster pump
T1 Switched phase circulation pump
T2 Switched phase
Booster pump
P1 Circulation pump
P2 Optional booster pump
PE Earthing
Power Mains supply
TS Storage tank temperature sensor
TR Return flow temperature sensor
TK Collector temperature sensor
Illustration 8-9 Terminal assignment, terminal block
