7 x Hydraulic system integration
50
FA ROTEX Solaris RPS3 25M - 03/2010

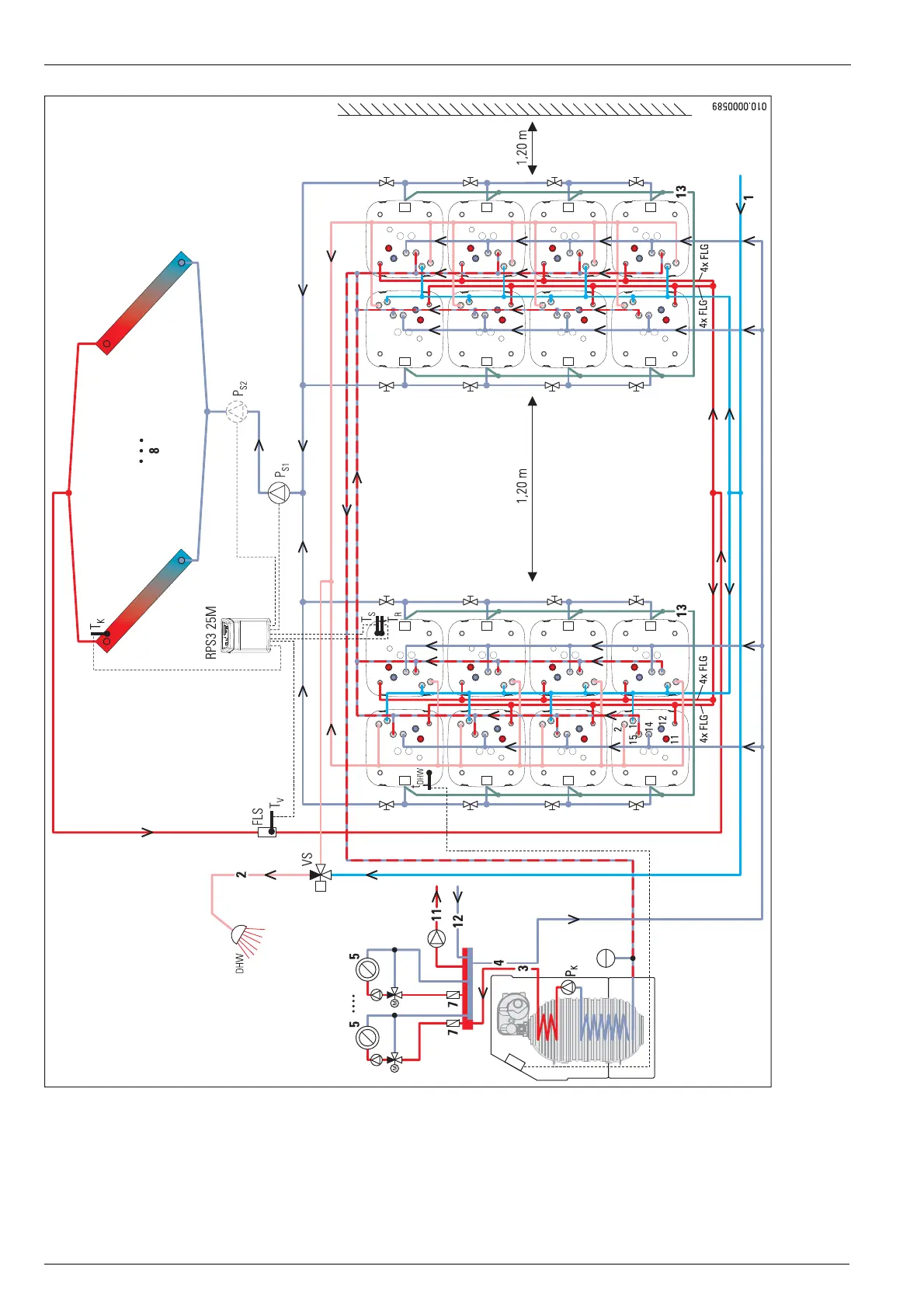

Illustration 7-6 Example diagram showing Solaris integration in a large-scale installation with 8000 l storage volume (with 16 HYC hot water storage tanks)
Suitable for up to 156 m
2
collector area (60 solar panels)
1)
1) The system schematics shown make no claims to completeness and are no replacement for careful system planning.
