Getting Started
Determine how you want to set up your Sub Zero Soundbar.

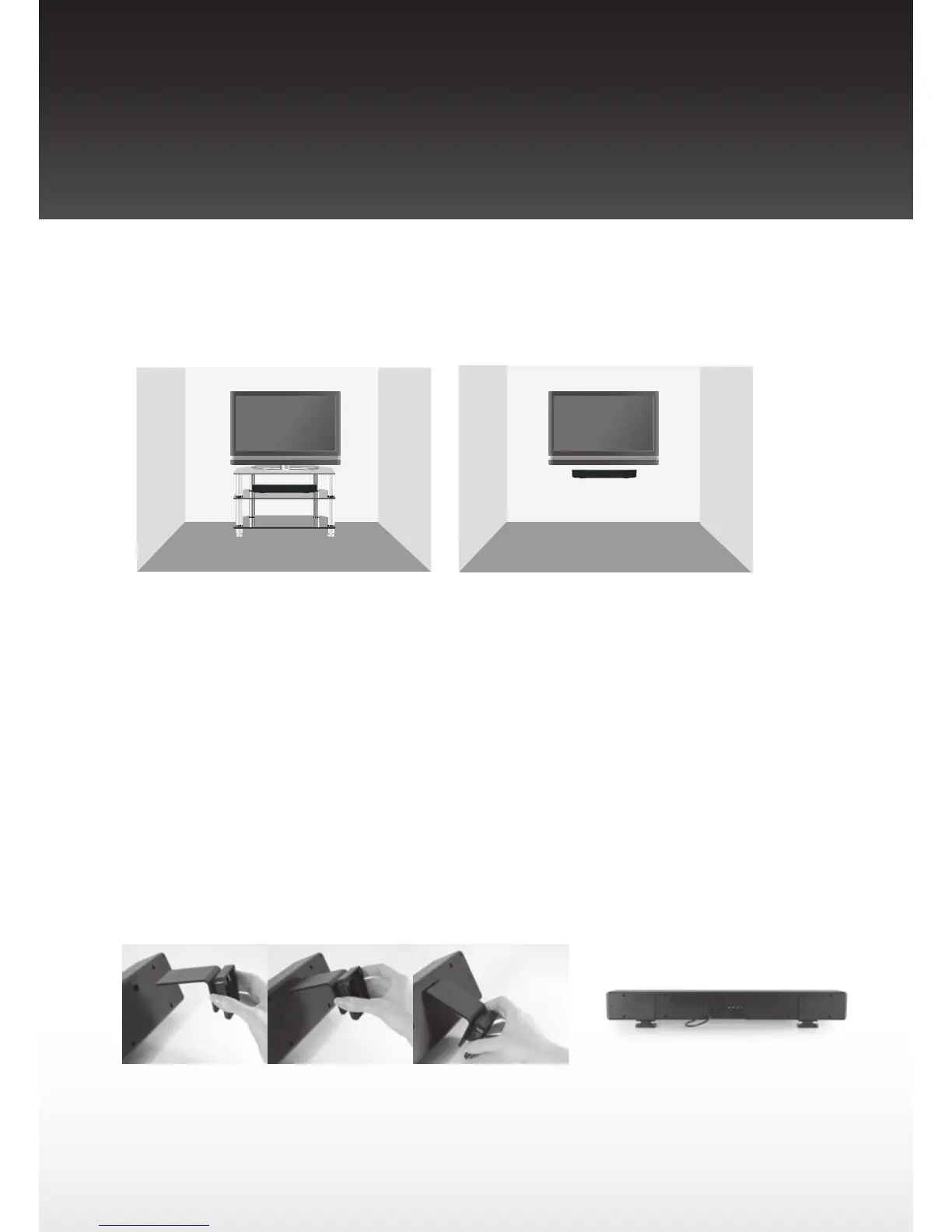

Thefollowingfiguresshow2typicalinstallationstyles.OneistheTableTopstyleandtheotheristheWallMountstyle.
Installing the stands
In order to place the Sub Zero on the cabinet or a shelf, you need to install the supplied 2 (two) stands by using the
following installation guide. Please make sure that the cabinet or shelf is strong enough and well secured.
Table Top Style
You can mount the Sub Zero on a cabinet that is
properly designed for a TV. Please install the supplied
stands by following the instructions that are shown on
the bottom of this page.
Wall Mount Style
You can mount the Sub Zero on a wall by using the
supplied hardware kit. The input jacks and power cord
are designed to allow a flush mount. Please follow the
instructions that are shown on page 8 of this Owners
Guide.
Step 1
Insert the top tab of
the stand into the hole
provided for the stand in
the back of the Sub Zero
Step 2
Makesurethatthetop
tab is fully inserted into
the hole.
Step 3
Swing down the stand all the way until
the stand hits the Soundbar so that the
base of the stand will be underneath of
the bottom of the Sub Zero. Then push
up the stand to fit the Sub Zero.
Step 4
Makesurethatthebothstands
are installed as shown in the
above picture.
Think About Location
Select an area where sunlight will not fall directly on the products. Also, be sure that the location selected allows a free flow of air to
and from the products. In order to prevent an internal temperature increase, maintain the following space requirements.
Sub Zero
Top / Bottom / Back: No clearance required - can be flush mounted.
Left / Right: At least 6” (150 mm) clearance required.
Front: Open between the Sub Zero and the listeners.
