Wall Mounting
Determine how you want to set up your Sub Zero Soundbar.
The Sub Zero Soundbar comes with a wall mounting kit to be used with a wall mounted TV. The input jacks and power
cord are designed to allow a flush mount where the Soundbar extends only 89 mm from the wall. Also, the Soundbar is
provided with an extra-long power cord so the user may hide the AC line by using a wall track that could be painted to
match the wall.
Follow these steps to mount the Sub Zero
Soundbar on a wall:
1. MeasurethewidthoftheTV–theSubZeroshouldbe
mounted so it is centered with the TV. Divide the TV
width measurement by 2 - that will be the centerline
distance from the edges of the TV.
2. If the Sub Zero is to be mounted below the TV, measure
from the TV edge to the centerline distance on the open
wall below the TV.
Markthedistancewithapencil1-1/2“(38mm)or
more below the bottom of the TV.
3. Makeapencilmark10-7/16”(265mm)oneach
sideofthecenterline.Makesurethemarkisthe
same distance down from the TV on each side.
4. Makeanothermark25/32“(20mm)directly
below the 1st mark on each side.
5. Drill a ¼” hole in the wall at each of the four
pencil marks.
6. Hammer the 4 wall mount anchors into the holes
- the anchors should be flush with the wall.
7. Now, using a Philips screwdriver, screw
the wall brackets in place with the
screws going into the anchors.
8. Tilting the bottom of the Sub Zero
slightly away from the wall, guide the
brackets into the matching holes on the
back of the Sub Zero. The Sub Zero is
now securely wall mounted.
NOTES
Thesuppliedmountingkitcanbeusedfortypicaldrywallconstruction.Mountingtowood,concrete,
brick or other types of wall construction will require different hardware. Roth AV recommends seeking
professional assistance for such installations. The instructions on this page and the supplied wall mount kit
are only for the vertical wall mount. Professional assistance is required for other mounting or installation
orientations (e.g., horizontal, tilted).

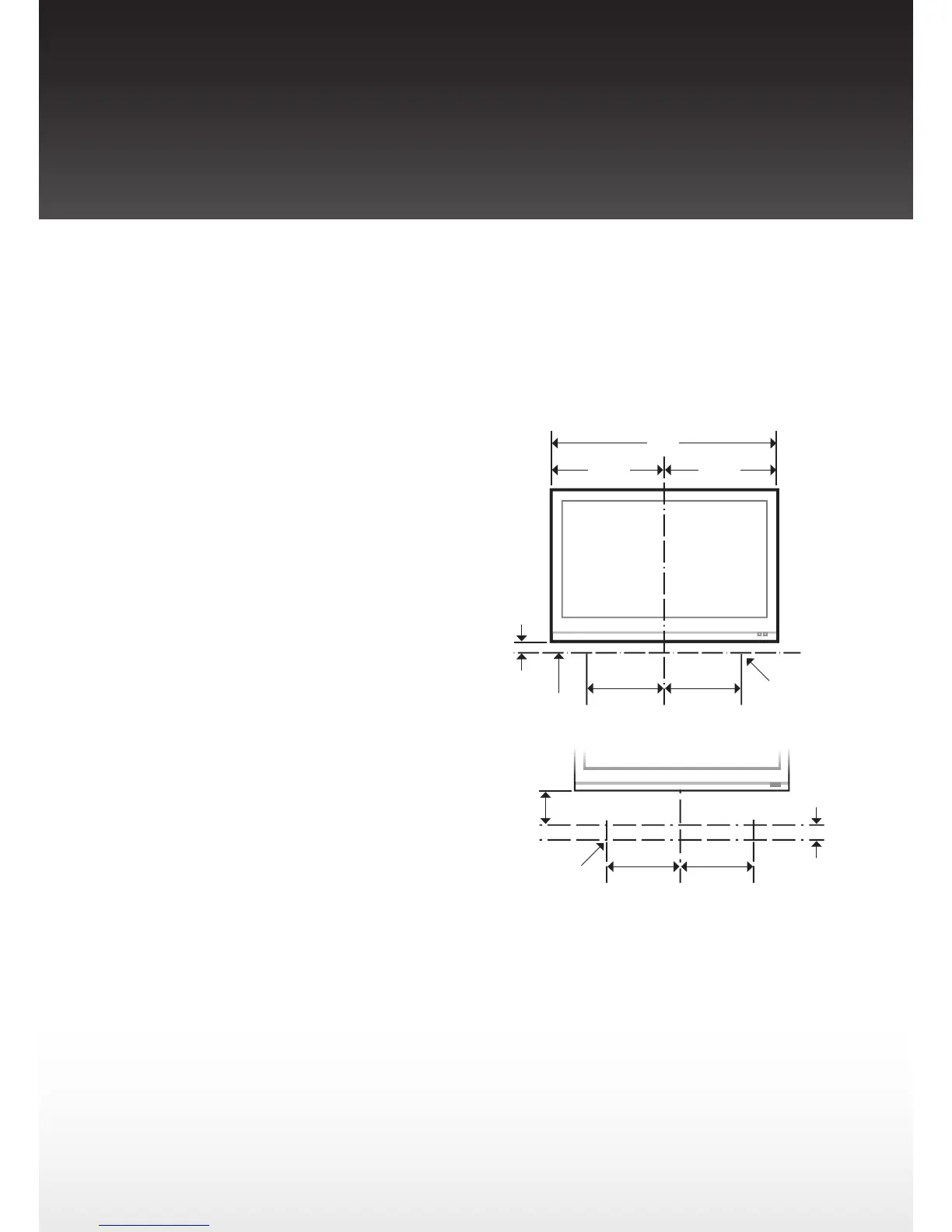

1. Find centerline
of TV.
3.Makeapencil
mark on each side
of centerline.
X/2” X/2”
+
+
+
+
+
+
10-7/16”
10-7/16”
10-7/16”
10-7/16”
1-1/2”
or more
25/32”
2.Makeapencilmark
1-1/2” or more below the
bottom of TV.
4.Makeanotherpencilmark
on each side of centerline.
1-1/2”
or more
X”
