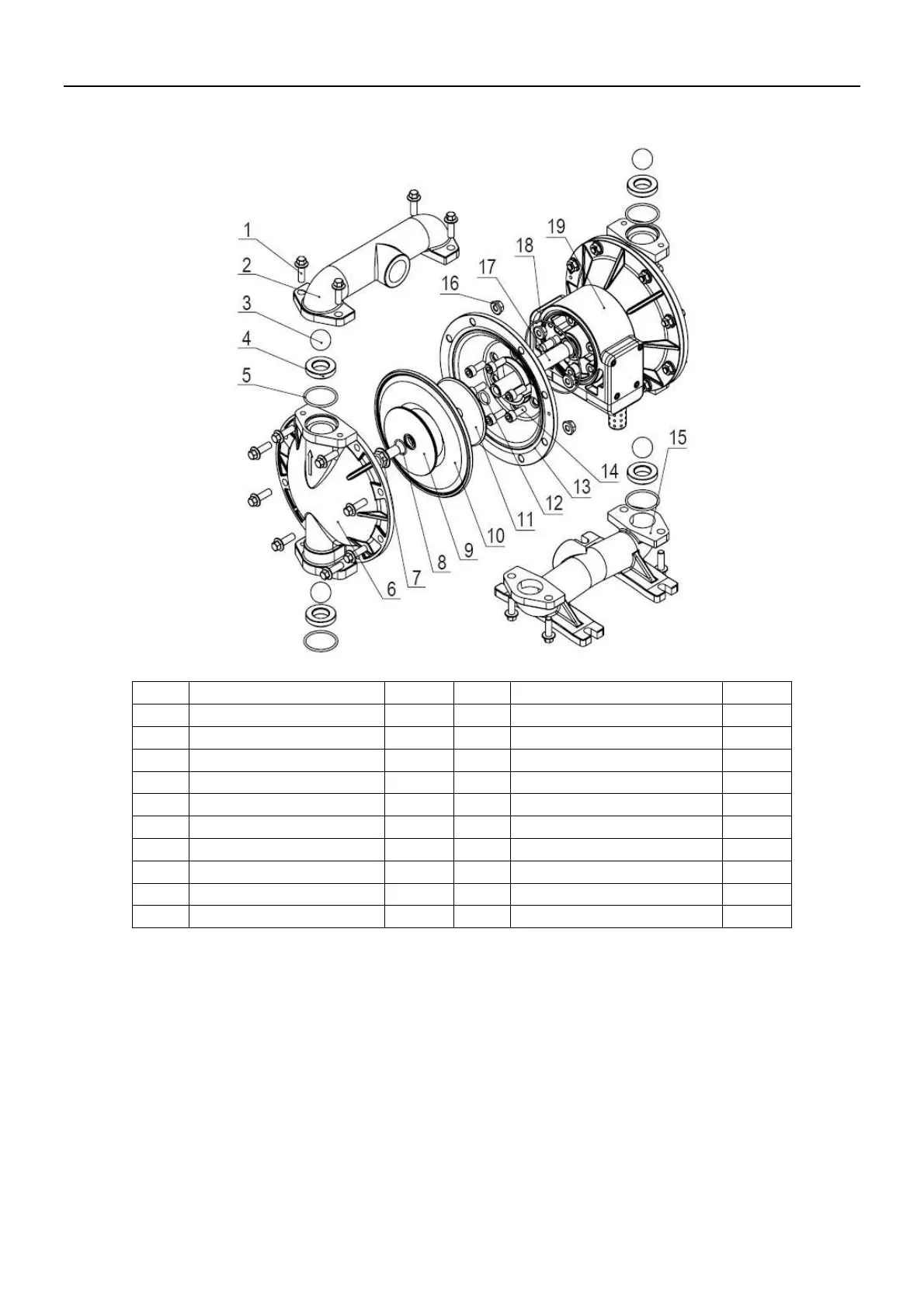

Roughneck 41763 - Page 8

Page 8 of9
FOR MODEL: 41769
No.
Description
Qty.
No.
Description
Qty.
1
Hex-bolt M8×30
24
11
Air Chamber Plate
2
2
Discharge Manifold
1
12
O-ring 12.37x2.62
1
3
Valve Ball
4
13
Air Chamber
2
4
Valve Seat
4
14
Screw M8X16
12
5
O-ring 37.77X2.62
4
15
Inlet Manifold
1
6
Liquid Chamber
2
16
Nut M8
16
7
Hex-bolt M12X25
2
17
Connection Shaft
1
8
O-ring 17.17X1.78
2
18
O-ring 94.97X1.78
2
9
Liquid Chamber Plate
2
19
Air Motor Assembly
1
10
Diaphragm
2
