Roughneck 41763 - Diagrams and Parts List

Page 7 of9

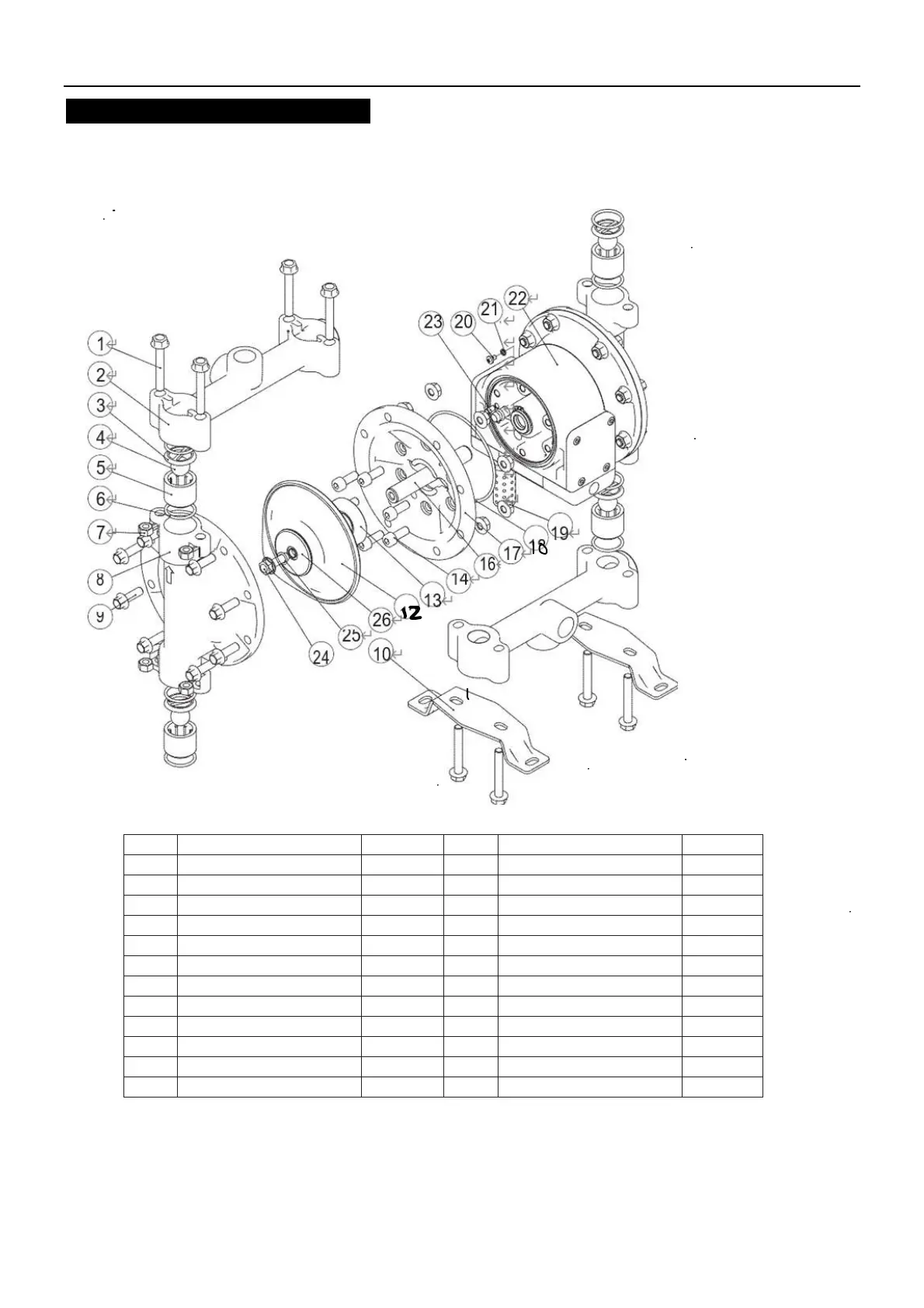

DIAGRAMS AND PARTS LIST
1 FLUID SECTION
FOR MODEL: 41763
Part
No.
Description
Q’ty
Part
No.
Description
Q’ty
1
Hex-bolt M8×55
8
14
Screw M8X16
12
2
Discharge Manifold
2
16
Connecting Shaft
1
*3
Valve cover
4
17
Air Chamber
2
*4
Valve Ball
4
*18
O-ring 94.92X2.62
2
*5
Valve Seat
4
19
Hex-bolt M8
16
*6
O-ring 28.24x2.62
8
20
Screw M5X8
1
7
Nut M8
8
21
Washer
1
8
Liquid Chamber
2
22
Air Motor Assembly
1
9
Hex-bolt M8X25
16
23
Straight pin
2
10
Bracket
2
24
Hex-bolt M8x25
2
*12
Diaphragm
2
25
O-ring (9.75x1.78)
2
13
Air Chamber Plate
2
26
Liquid Chamber Plate
2
Note: The Part No. with “*” are the wearing parts.
