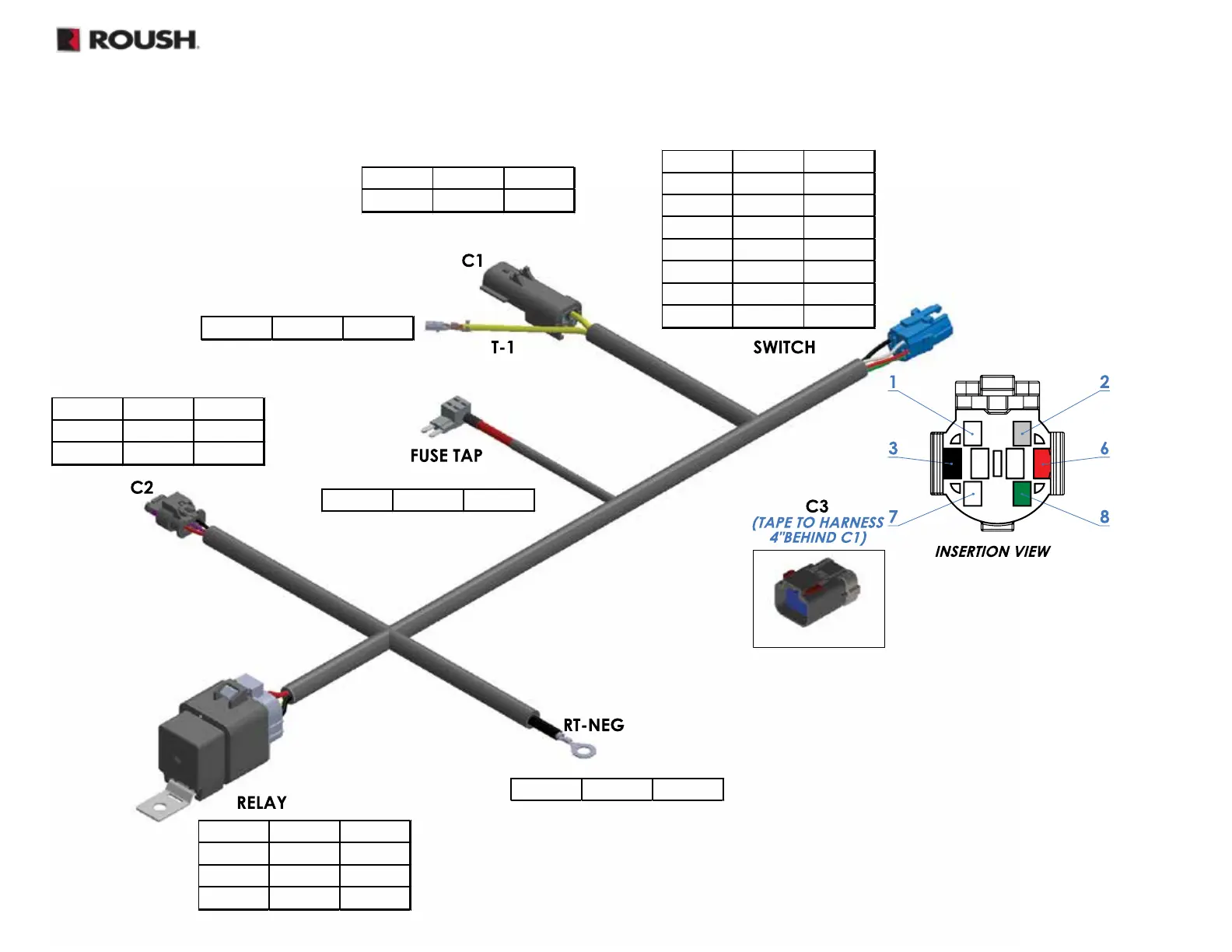

Active Exhaust Wiring Harness
Switch-1 EMPTY EMPTY
Switch-2 SP-3 WHT
Switch-3 SP-2 YEL
Switch-4 EMPTY EMPTY
Switch-5 EMPTY EMPTY
Switch-6 SP-3 RED
Switch-7 EMPTY EMPTY
Switch-8 SP-1 BLK
C1-1 SP-2 YEL
C1-2 EMPTY EMPTY
T1 SP-2 YEL
C2-1 RLY-87 RED
C2-2 SP-3 PPL
C2-3 SP-1 BLK
FUSE RLY-85 RED/WHT
RLY-30 SP-2 YEL
RLY-85 FUSE RED/WHT
RLY-86 SP-1 BLK
RLY-87 C2-1 RED/WHT
RT-NEG SP-1 BLK
