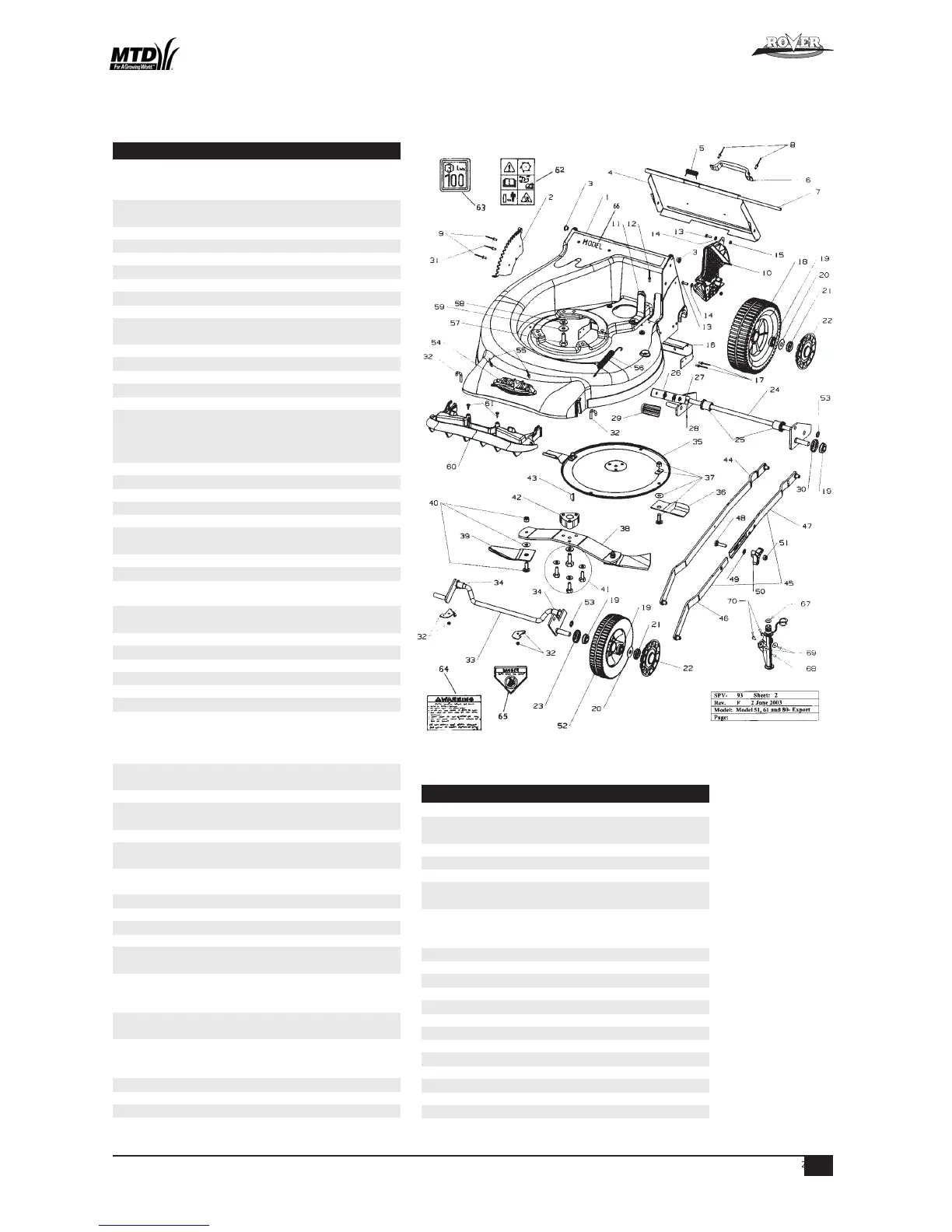

SPARE PARTS VIEWS
BASE SPARE PARTS
No. Part No. Description Qty
1 A 16135 Base- 20” Push 1
1 A 16 0 70 Base- 20” Self propelled 1
1 A 16176 Base- 22” Self propelled 1
2 A 03510 Height adjustment rack- 20” only 1
2 A 16 0 81 Height adjustment rack- 22” only 1
3 A 03126 Flap bush 2
4 A03456 Rear flap 1
5 A 03325 Flap spring 1
6 A03455 Handle- flap 1
7 A03306 Flap rod 1
8 A 29 011 2 Rivet- flap handle 2
9 A04164 Rivet- rack 2
10 A 161 8 0 Chain case- dummy 20” push only 1
10 A 16 0 6 6 Chain case- 20” & 22” s/prop.only 1
11 A 16 216 Infil piece- 20” push only 1
12 A04040 Rivet- 20” push only 1
13 A04158 Screw- M5 x 20 2
14 A04099 Washer 2
15 A04163 Nyloc nut- M5 2
16 A 10381 Axle retainer- 20” CE push 1
16 A03877 Axle retainer- 20” US push 1
16 A 03383 Axle retainer- 20” & 22” local & CE SP 1
16 A 03878 Axle retainer- 20” & 22” US SP 1
17 A 29 0 11 2 Rivets- rear axle retainer- 20” push 4
18 A10622 Rear wheel assembly- 20” push 2
19 A 03353 Wheel bearing 8
20 A 373109 Tension washer 4
21 A03092 Ratchet plate 4
22 A03414 Hub cap- chrome 4
22 A 16 23 4 Hub cap- black 4
23 A 16 0 14 Wheel seal 2
24 A10649 Rear axle assembly- 20” push 1
25 A 16 2 2 0 Rear axle bush- 20” push 2
25 A 162 94 Rear axle bush- 20” & 22” s/prop 2
26 A10284 Height adjustment lever- 20” only 1
26 A10635 Height adjustment lever- 22” only 1
27 A 03336 Plate 1
28 A 0 211 8 Rivets- height adj. lever 2
29 A03250 Handle grip 1
30 A 16 0 14 Wheel seal- 20” push only 2
31 A04164 Rivet- rack 22” s/prop. only 1
32 A03516K Axle hook kit 2
33 A10603 Front axle assy- 20” CE & US Mulch 1
33 A 10527 Front axle assy- 20” Push & S/prop 1
33 A10638 Front axle assy- 22” S/prop 1
33 A10648 Front axle assy- 22” CE & US mulch 1
34 A03450 Front axle bush- 20” push & s/prop 2
34 A 03674 Front axle bush- 22” s/prop 2
35 A16005 Disc- 20” push & s/prop. only 1
36 A03830 Blade- standard 20” suits item 35 4
36 A03930 Blade- mulch 20” suits item 35 4
37 A00673K Blade bolt, nut & washer kit- suits item 35 2
38 A03999 Bar blade holder- 20” only 1
38 A 16173 Bar blade holder- 22” only 1
39 A 1610 8 Blade- 22” 2
39 A16238 Blade- 22” CE & US only 2
40
A04139K Blade bolt, nut & washer kit- suits item 38 1
41 A 0555 K Centre bolt kit 1
42 A01486 Disc boss 1
43 A 02051 Woodruff key 1
44 A10647 Conbar- standard 20” push & s/prop. 1
44 A10644 Conbar- standard 22” s/prop. 1
45 A10687 Conbar complete assy- 20” mulch 1
45 A10710 Conbar complete assy- 22” mulch 1
45 A 1 0 7 15 Conbar complete assy- 20” China 1
46 A10684 Conbar front assy.- 20” mulch 1
46 A 107 11 Conbar front assy.- 22” mulch 1
47 A10686 Conbar rear assy.- 20” mulch 1
47 A 10 713 Conbar rear assy.- 22” mulch 1
47 A10708 Conbar rear assy.- 20” China 1
48 A04117 Cuphead bolt 1
49 A02030 Washer 1
50 A03998 Handle 1
No. Part No. Description Qty
51 A02223 Nut 1
52 A 10 6 21 Front wheel assy.- 20” push & s/prop. 2
52 A10622 Front wheel assy.- 22” s/prop. 2
53 A 2 5 0111 6 Ratchet plate 2
54 A03995 Logo 1
55 A04171 Rivets- logo 2
56 A 16 0 76 Conbar spring- 20” push & s/prop. 1
56 A 16 219 Conbar spring- 22” s/prop. 1
57 A 02127 Engine Bolt- B&S 3
57 A 02127 Engine Bolt- Honda GCV 160 3
57 A04145 Engine Bolt- Honda GXV 140 3
58 A 02012 Washer- Flat- Honda GXV 140 3
59 A 0 2031 Washer- shakeproof Honda GXV 140 3
60 A 16137 Nose comb- 20” & 22” CE & US only 1
61 A 0 4 111 Screw- 20” & 22” CE & US only 2
62 A03743 Label- warning CE only 1
63 A03492 Label- Noise CE only 1
64 A03934 Label- warning US only 1
65 A 03874 Label- danger US only 1
66 * Label- Model 1
67 A04173 O-Ring 1
68 A 163 0 2 Washport - plastic 1
69 A04038 Washer- 04.15 x 15 x 18g.flat 2
70 A 0 2175 Rivet- 73 AS 5-5 2
