Rover 51 - Handle Bar Spare Parts

Powered Walk Behind Mower - CE Part No. 04016218 Rev G © Copyright 12/2006
™
85

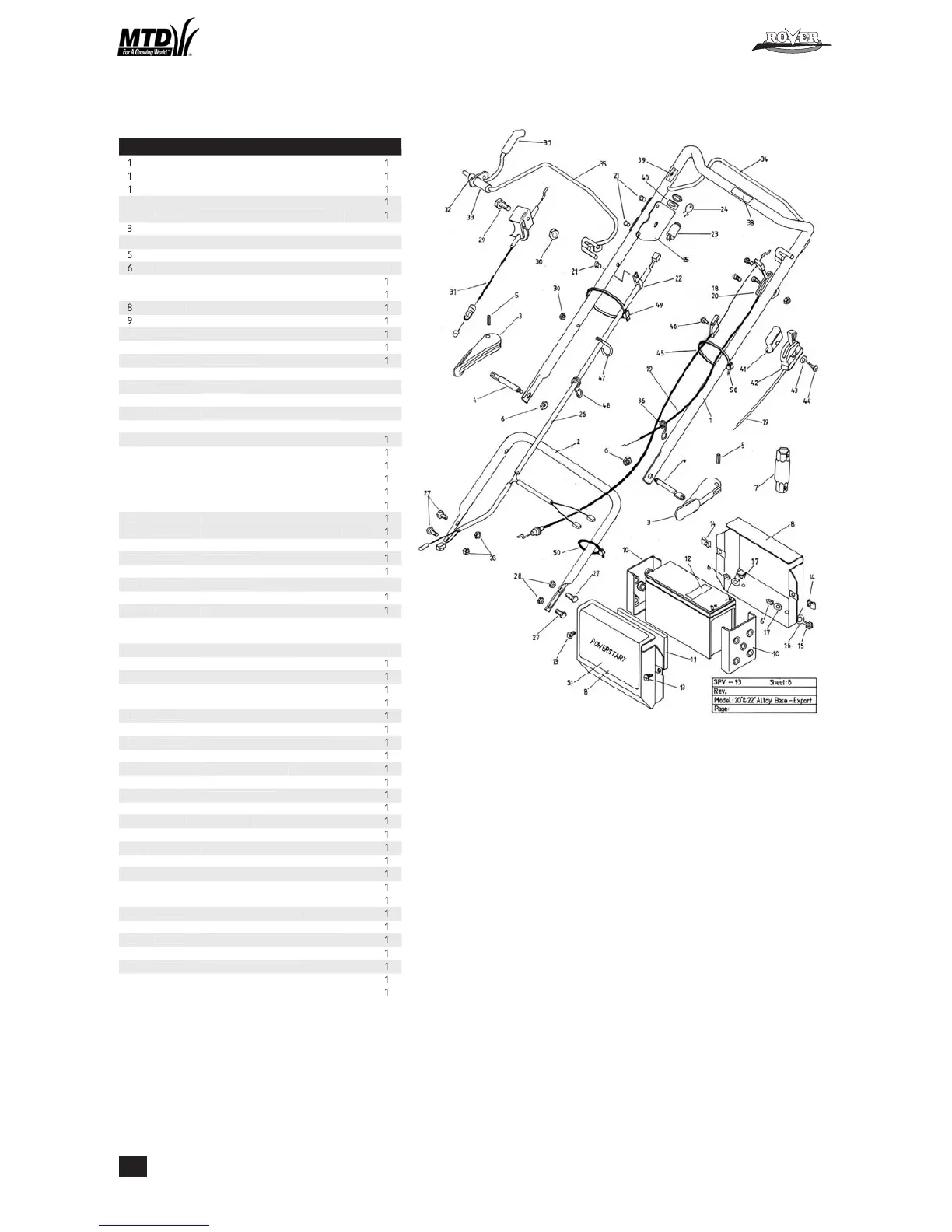

SPARE PARTS VIEWS
HANDLE BAR SPARE PARTS
No. Part No. Description Qty
1
A03802
Upper handle bars- 20”
1
1
A03809
Upper handle bars- 20” prof.
1
1
A 16174
Upper handle bars- 22”
1
2
A 16 0 5 0
Lower handle bars-20” only
1
2
A 161 85
Lower handle bars-20” prof & 22”
1
3
A02849K
Cam lock- incl. item 4, 5, 6
2
4
A 033 07
Draw bolt- cam lock incl. in item 3
2
5
A02260
Roll pin- cam lock incl. in item 3
2
6
A02223
Nyloc nut- 5/16” unc. incl. in item 3
4
7
A 03518
Plug spanner- Quantum & Honda
1
7
A 12392
Plug spanner- Intek
1
8
A 03556
Battery support box
1
9
A 03559
Battery
1
10
A 03558
Battery block
1
11
A 03610
Foam block
1
12
A 03563
Label -caution
1
13
A 0 2163
Screw- 3/16” x 1/2” mush. head
2
14
A02002
Speed nut
2
15
A02083
Setscrew- 5/16” x 3/4” unc.hex
2
16
A 02012
Washer- 5/16” x 7/8” x 18g.flat
2
17
A 1 11 0 2
Washer- special
2
18
A03430
Lever stop plate
1
19
A 03326
Throttle cable- 20” B&S CE
1
19
A 106 41
Throttle cable- 20” Honda GXV
1
19
A 10718
Throttle cable- 22” B&S CE
1
19
A 10 719
Throttle cable- 22” Honda GXV
1
19
A 1 07 21
Throttle cable- 22” B&S US
1
20
A00950K
Throttle control assembly- briggs
1
20
A10016K
Throttle control assembly- Honda
1
21
A04060
Rivet- 73 AS 5-2
1
22
A 03565
Cable clamp
1
23
A 03560
Key start switch
1
24
A 0 7679
Ignition keys
2
25
A 03557
Key start housing
1
26
A 1614 2
Wiring loom- 20”
1
27
A02028
Setscrew- 5/16” x 5/8” -20” only
4
27
A02083
Setscrew- 5/16” x 3/4” -20”Prof & 22”
4
28
A04045
Flanged nut- 5/16” unc
4
29
A 020 81
Setscrew- 1/4” x 1-3/4” unc
1
30
A 02235
Nyloc nut- 1/4” unc
1
31
A 16133
Clutch cable- 20”
1
31
A 161 83
Clutch cable- 22”
1
32
A 0 2 521
Spacer
1
33
A 10 717
Clutch lever assembly
1
34
A10523
Brake lever assembly- 20” push
1
35
A10524
Brake lever assembly- 20 & 22” s/prop.
1
36
A03732
Cable clip- all models
1
37
A 03739
Handle grip
1
38
A 03747
Label- blade brake
1
39
A03622
Label- drive engagement
1
40
A 03756
Switch plate
1
41
A03933
Throttle block
1
42
A16006
Throttle control assembly- US
1
43
A 0 2 216
Washer- 3/16” x 1/2” flat
1
44
A04114
Screw- 10 x 50 pan head
1
45
A 16 233
Brake cable- 20”
1
45
A 161 8 4
Brake cable- 22”
1
46
A04083
Screw- 10 x 19 pan head
1
47
A 03733
Rope stop
1
48
A03732
Cable clip- powerstart & 20” push
1
49
A 02668
Cable tie- powerstart & s/propelled
1
50
A 02668
Cable tie- self propelled
1
51
A03938
Label- Powerstart- mulch only
1
51
A 037 74
Label- Powerstart
1
